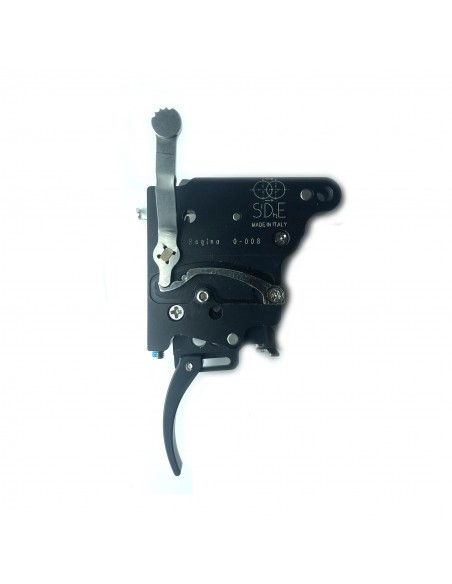

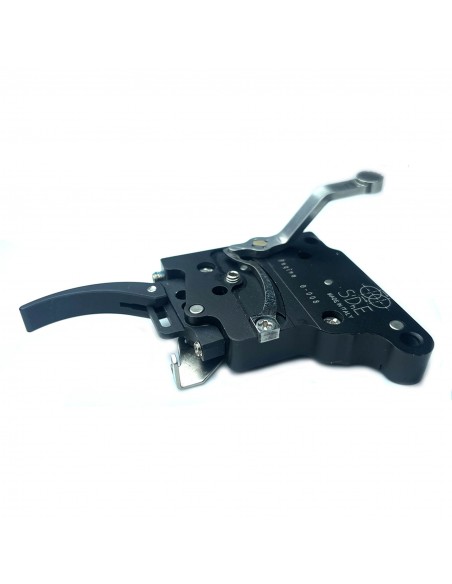

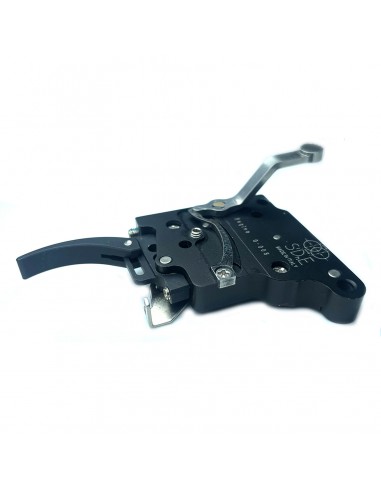

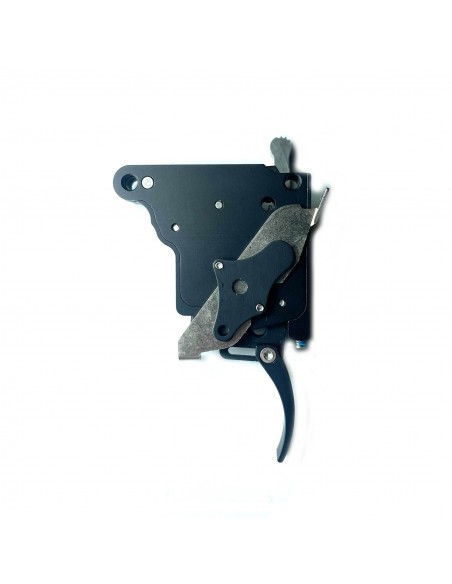

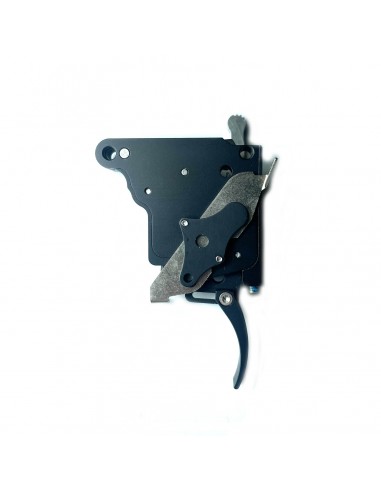

SIDHE TRIGGER HUNTER BLACK

Designed for those who want a trigger that is tailored to their needs, this SIDHE trigger is a single-stage trigger with trigger pull adjustment, compatible with the standard Remington 700 with bolt stop release and Top Right safety lever.

It features trigger position adjustment (+/- 6mm) and allows adjustment of the release weight, recoil and trigger end-stop with the trigger mounted on the rifle using the supplied key.

In order to further reduce friction and effectively nullify wear, increasing performance, the Hunter has been constructed from aircraft grade materials such as ERGAL 7075 and has been 13.8 PH, 17.4 PH anodised on the body and trigger and 1.2083 (55 HRC) on the internal components.

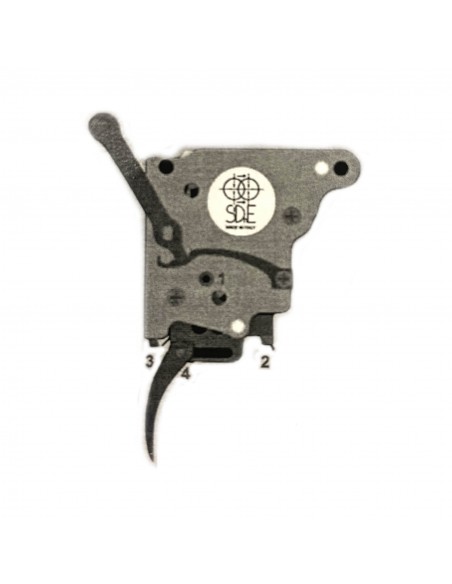

TRIGGER ADJUSTMENT

Screw 1, Sear Engagement: cock the bolt. Tighten until the trigger disengages. Unscrew by 1/4 turn (re-arm several times ensuring that the trigger does not release on its own - in this case, unscrew again by 1/8 turn)

Screw 2, Stroke Adjustment 1 stage: Unscrew the screw to adjust the trigger travel in the first stage (screwing down will reduce the travel). CAUTION: Tightening the entire setscrew will cancel the first stage until the trigger disengages.

Screw 3, Pull Weight: Adjust the Pull Force (screwing hardens) from 250>450 g max.

Screw 4, Trigger Position: Unscrew/screw to adjust desired trigger position (Torx TX6).
