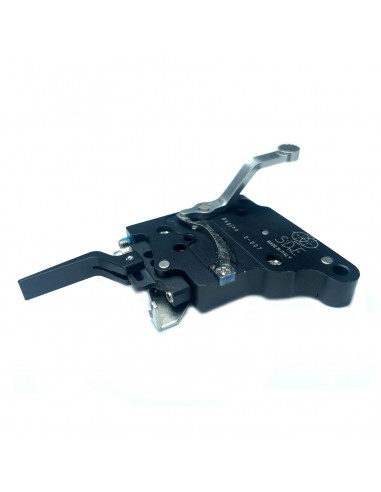

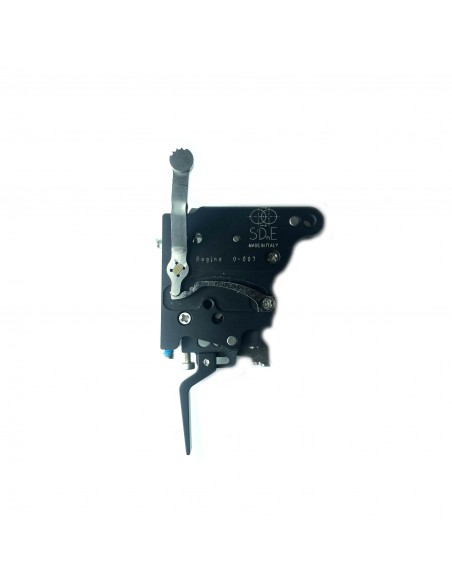

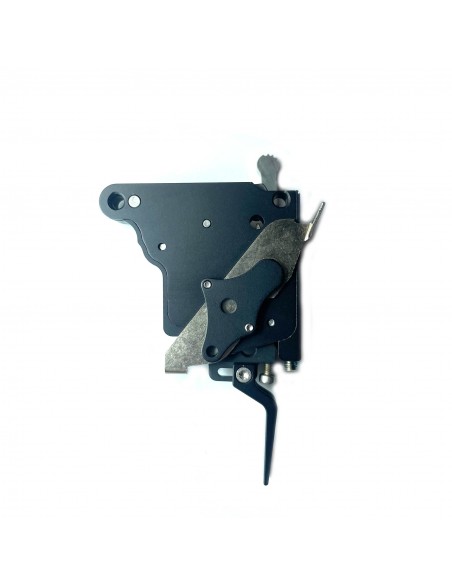

SIDHE TRIGGER TARGET MATCH BLACK

A trigger mechanism designed for tactical rifles on a mechanism compatible with the Remington 700 standard. This 1 stage trigger is also used in hunting by experienced hunters.

Made from aeronautical materials, such as ERGAL 7075 for the body and trigger, it is anodised 13.8 PH, 17.4 PH and 1.2083 (55 HRC) for the internal components, in order to further reduce friction and effectively eliminate wear, thus increasing performance.

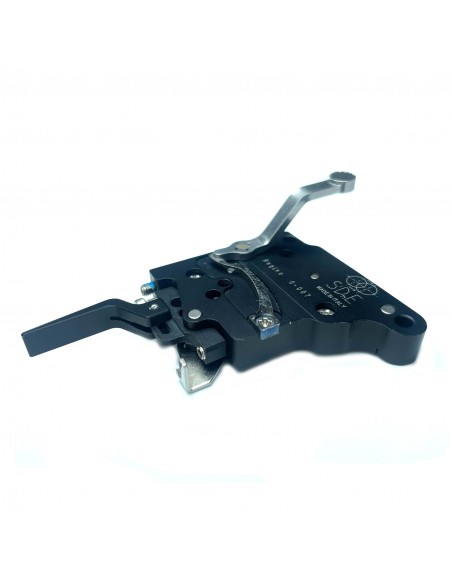

It is equipped with a Top Right safety lever and a bolt release lever.

It is equipped with a set of three springs (1,2,3,4) for the choice of trigger weight.

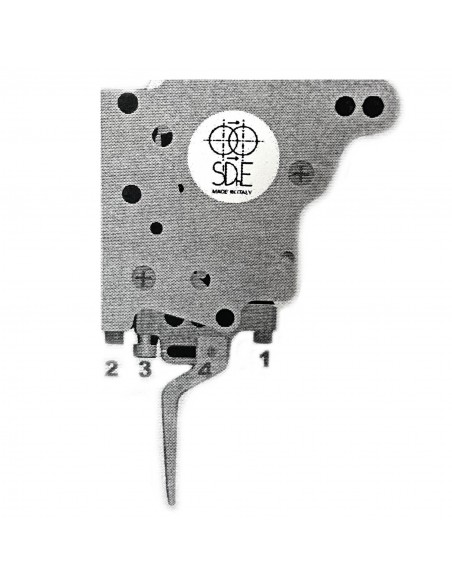

TRIGGER ADJUSTMENT

Screw 1, Sear Engagement: unscrew the entire Sear screw. Cock the bolt and tighten until the trigger disengages. Unscrew 1/8 of a turn (re-arm several times making sure the trigger does not release on its own - in this case, unscrew 1/8 of a turn again)

Screw 2, Pull Weight: Adjust Pull Force (screwing hardens). Spring 1 (45-85 g), Spring 2 (65-95 g), Spring 3 (105-190 g), Spring 4 (115-235 g). CAUTION: When removing the grub screw to replace the spring with one of the 4 supplied, take care not to pull out the steel pin.

Screw 3, Over Travel: Tighten screw to adjust trigger Over Travel (tightening will reduce trigger travel when released).

Screw 4, Trigger Position: Unscrew/screw to adjust the desired trigger position (Torx TX6)
