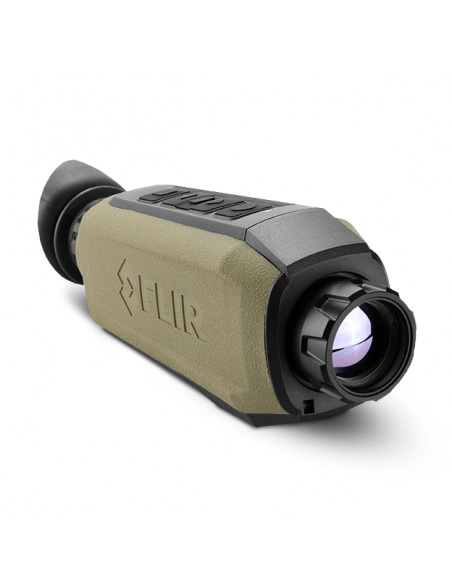

Scion OTM366 640x480 60 Hz 25 mm Manual
FLIR Scion™ OTM captures clear thermal images and uses a refined user interface to quickly detect objects of interest in total darkness and through sun glare or haze. Built around the powerful FLIR Boson sensor, the Scion OTM produces thermal images at 9 Hz and records video and geo-tagged images that can be played back later. The rugged IP67 housing and intuitive controls allow for one-handed operation in adverse weather conditions, providing reliable thermal images even in the most challenging outdoor environments.
INTEGRATED IMAGE AND VIDEO RECORDING
Relive every wildlife encounter in crisp thermal images stored in the internal memory and on the microSD™.
REDESIGNED USER INTERFACE
Clear menus allow quick adjustment of the thermal palette and facilitate access to new functions, such as picture-in-picture zoom, video recording and GPS functionality.
RELIABLE THERMAL DETECTION
The advanced image processing of the FLIR Boson® thermal sensor and the bright OLED display provide an excellently sharp 9 Hz thermal image.
SPECIFICATIONS
GENERAL
Image storage: Yes
PANORAMIC
Dimensions: 239 × 76.8 × 60.5 mm
Display: Quad-VGA (1280 × 960) High definition display
Internal memory: 2 GB internal memory / optional microSD™ card (up to 128 GB)
Weight: Without batteries, 452 g; With batteries 572 g
Sensor type: 320 × 256
SYSTEM OVERVIEW
Colour (housing): Green / Black
Eyecup: 16 mm
Optical magnification: 1.3x
Display focus: Manual
System optics: 25 mm
Sensor technology: BOSON 12 µm Vox Microbolometer
SUPPLY
Battery life: up to 4.5 hours at 20 °C
Battery type: 6 CR123A 3 V lithium batteries
ENVIRONMENTAL
Mounting: ¼-20 tripod mount
CONNECTIONS AND COMMUNICATIONS
Bluetooth: BLE 4.1+
Geographic positioning [GPS]: Yes
Video recording: Yes
USB: USB-C; Power input; Video output; Video and image file transfer
Wi-Fi: Video streaming, file transfer
MEASUREMENT DATA
Automatic switch-off: Yes
IMAGING AND OPTICS
Field of view: 18° × 13°
Sensing distance range [1.8 m man]: 1000 m
Focusing: Manual
Refresh Rate: 60 Hz
Digital zoom: 1X | 2X | 4X | 8X
UI-UX
Accelerometer: Yes
Magnetic compass: Yes
Image during recording: Yes
Time-stamping: Yes
Display modes: Scouting, Picture-in-Picture
Temperature imaging modes: White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava
Real-time clock: Yes
