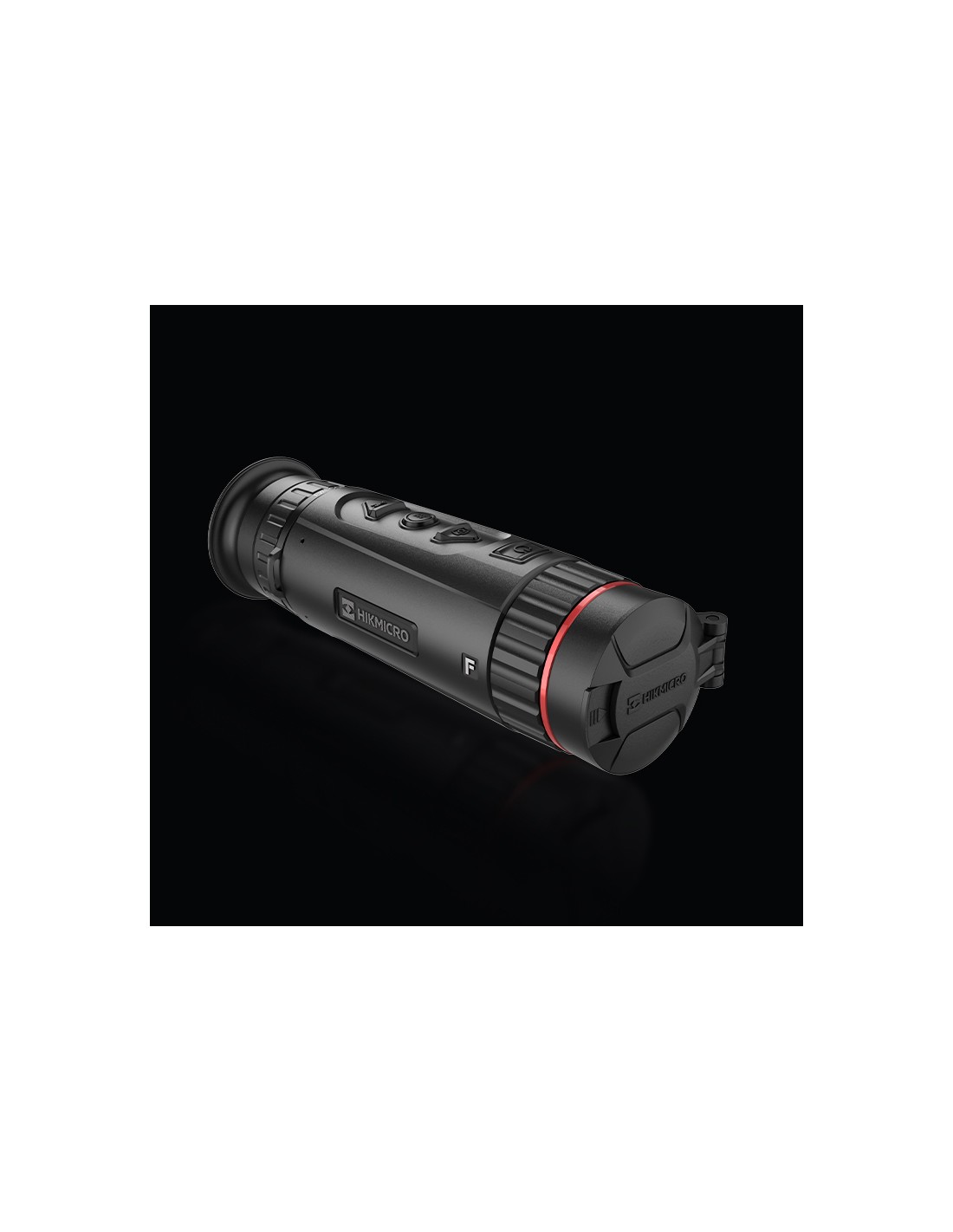

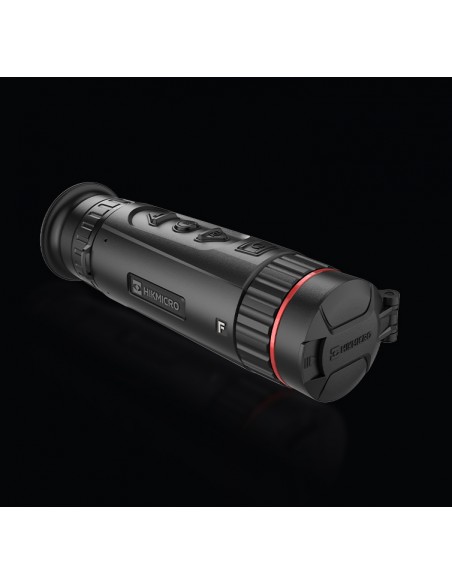

Falcon FQ35
The large VOF and magnification provide a perfect overview at both short and long distances.
Ultra-sharp image. Impressive detail recognition
Higher sensitivity in combination with the high-definition sensor and larger aperture optics provides the best quality and more detailed, high-contrast informative image in all weather conditions.

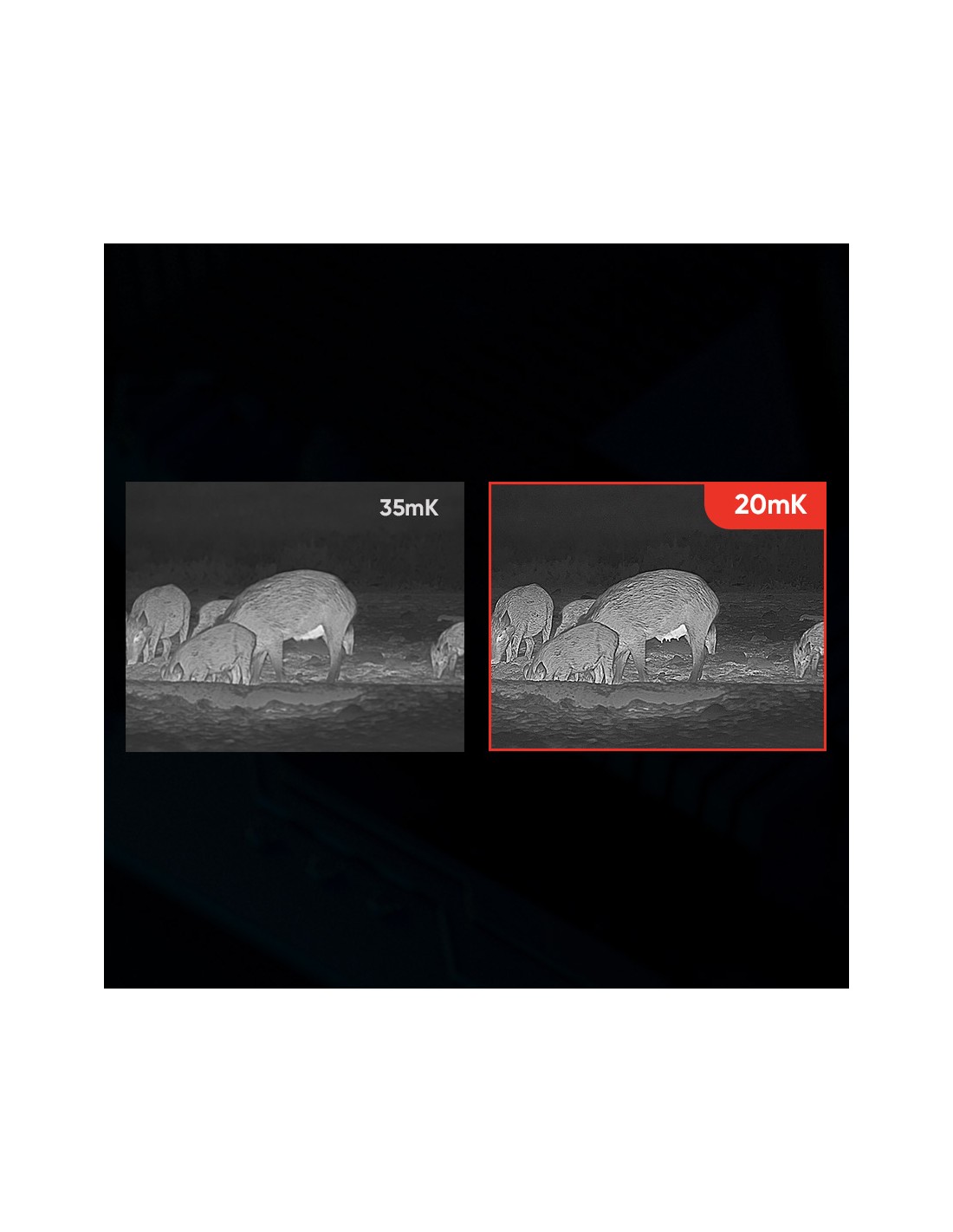

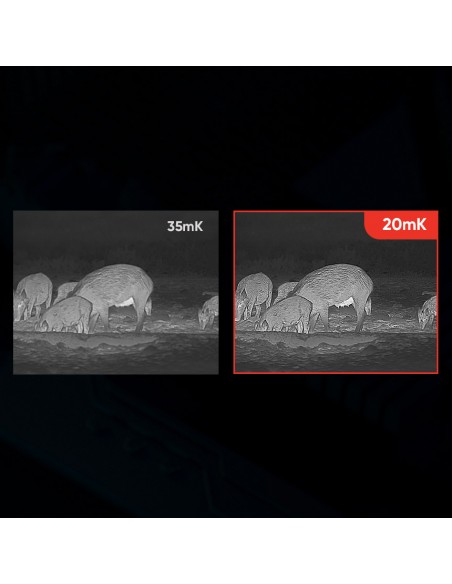

1. Extremely high thermal sensitivity, NETD<20mK
The high thermal sensitivity ensures perfect detail recognition even in difficult weather conditions, and when the object and background have a minimal temperature difference. In addition, the self-developed high TCR vanadium oxide thin-film material significantly improves the sensitivity. The smallest details of objects and backgrounds can be clearly identified.
2. High-definition thermal detector, up to 640x512 @12μm
Equipped with a high-end 12μm thermal detector and a resolution of up to 640x512 pixels, it provides excellent temperature resolution to ensure significantly clear and contrasty thermal image.

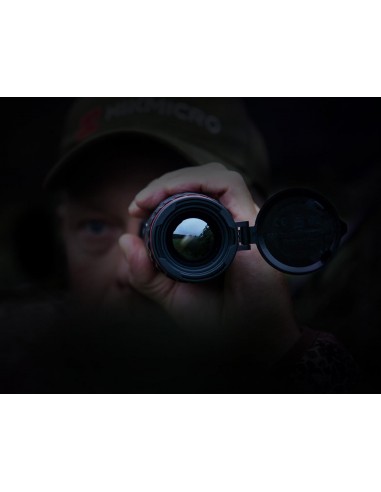

3. Super wide aperture f/0.9 lens, 19% improvement.
With a high-performance germanium aspherical lens, a super wide aperture f/0.9 provides better ability to capture temperature radiation. Compared with the f/1.0 aperture, the thermal radiation level capture is increased by 19%. The larger the aperture, the more infrared radiation can be captured, so the image will be much clearer.

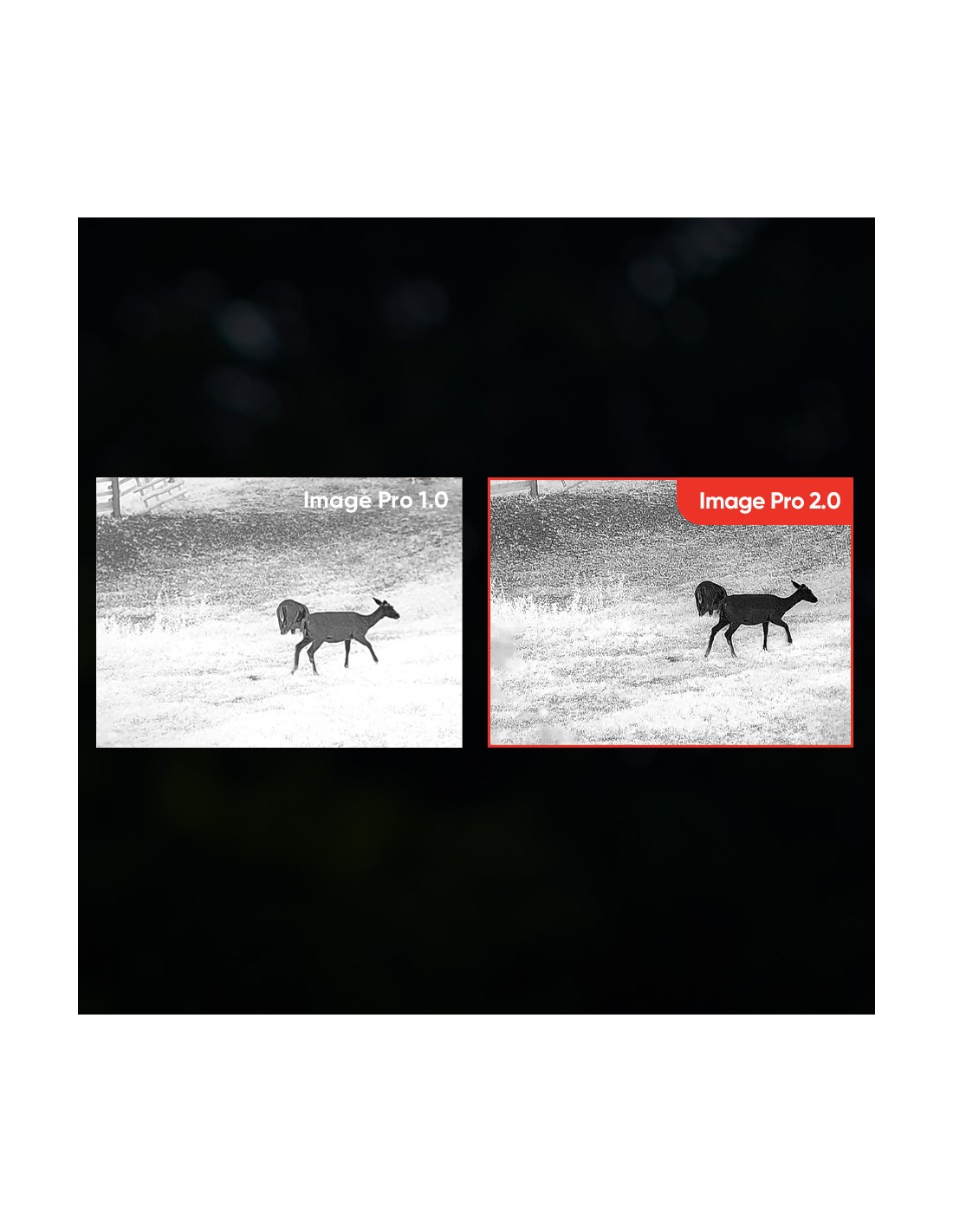

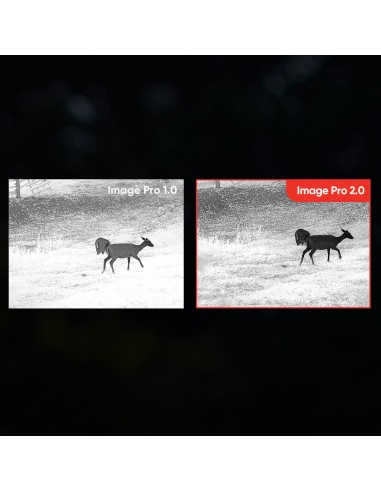

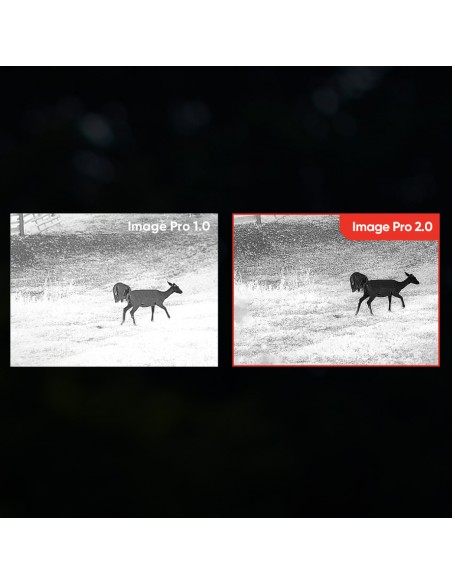

4. Image Pro 2.0, enhanced self-developed image processing algorithm
Image Pro2.0, the image processing algorithm developed by HIKMICRO, ensures maximum optimization of the digital image according to the purposes and observation conditions, and provides high-quality rendering of both target objects and background.
*Only accessible from V5.5. 85_240906 onwards, the others remain at Image Pro 1.0
Greatly improved design. Exceptional ease of use

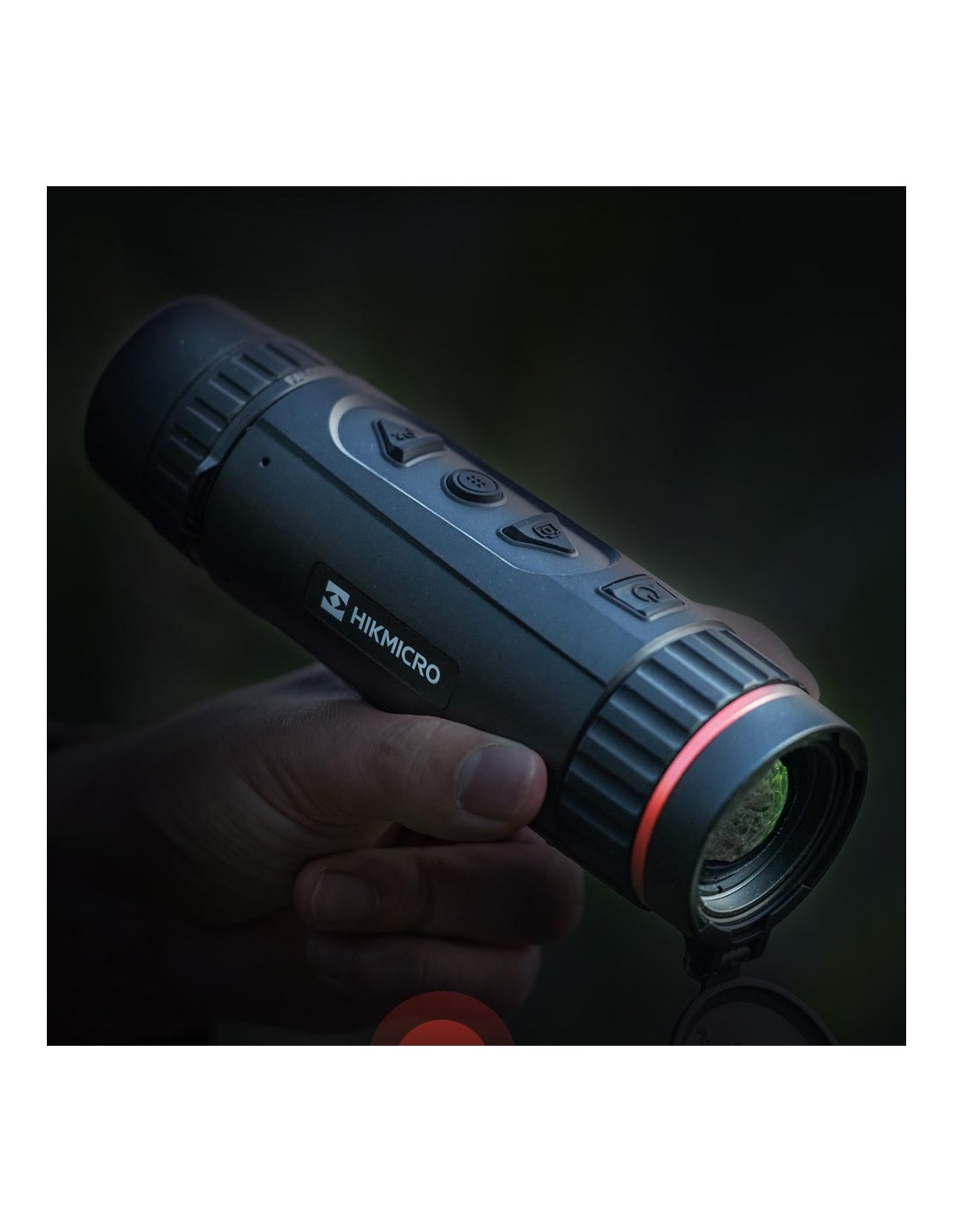

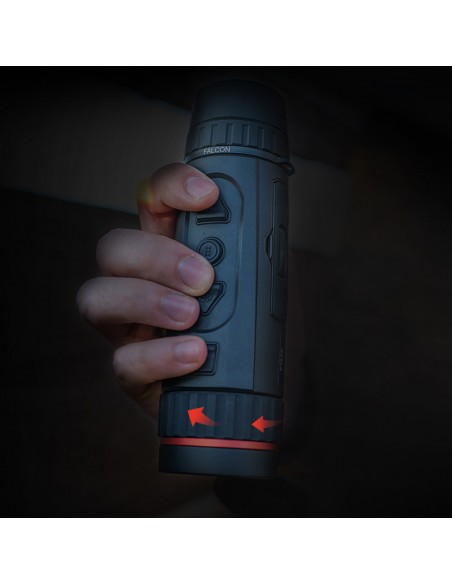

1. Ergonomic cylindrical design for better user experience.
The compact and premium cylindrical design offers a perfect operating experience. It allows one-handed operation and is also optimized for both left-handed and right-handed users. In addition, the device adopts soft and skin-friendly material for better touch feeling.

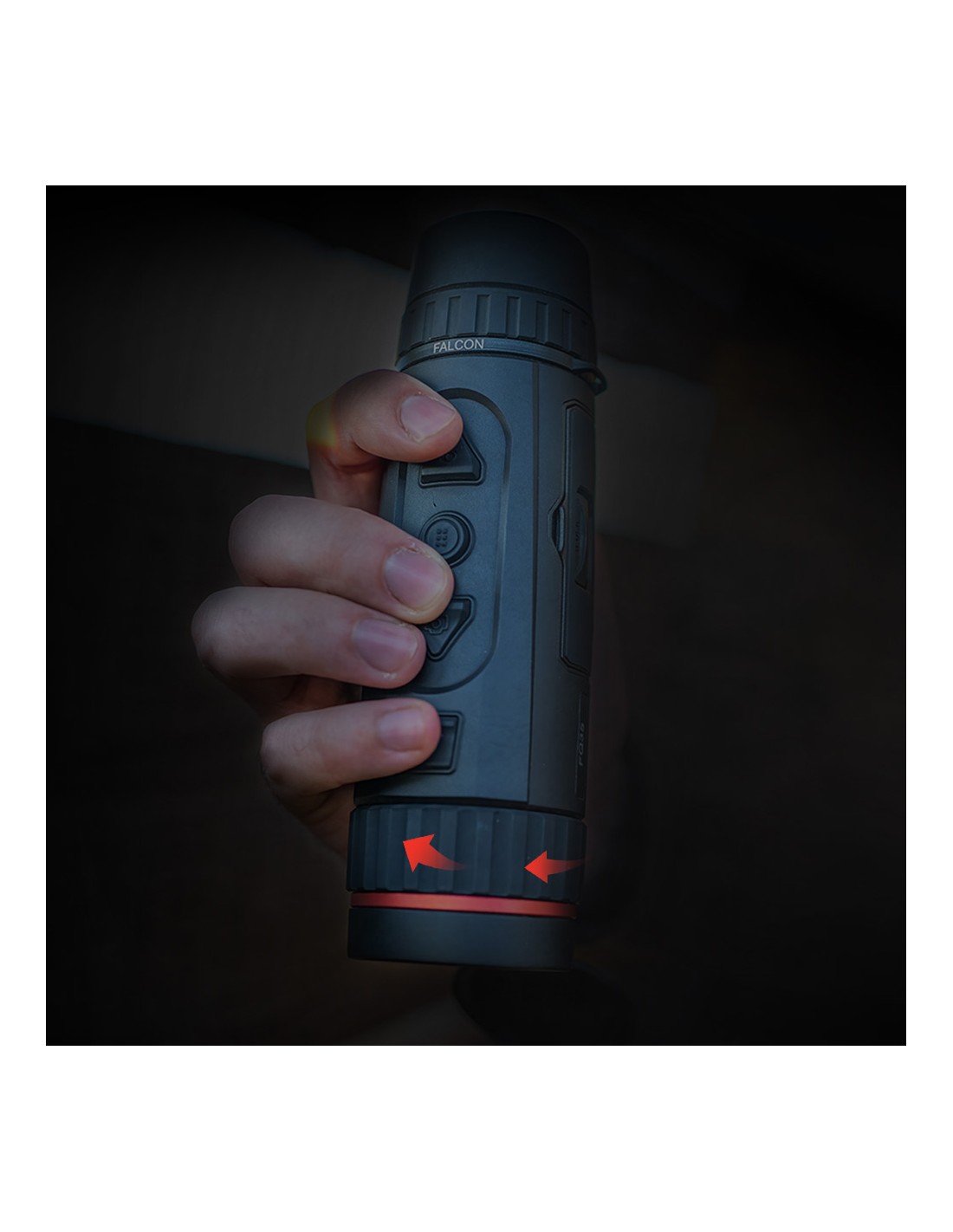

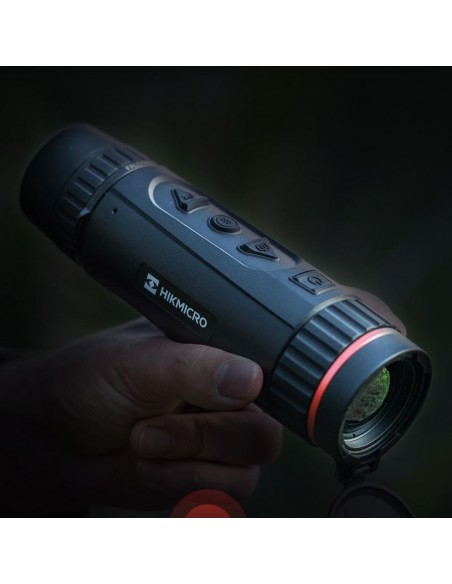

2. Perfect Component for Intuitive Operation
The component design has been significantly improved to better meet the needs of users' real-world usage scenarios. The button layout is very intuitive, and with different shapes, each function can be identified and controlled intuitively and quickly, even when wearing gloves or in complete darkness.

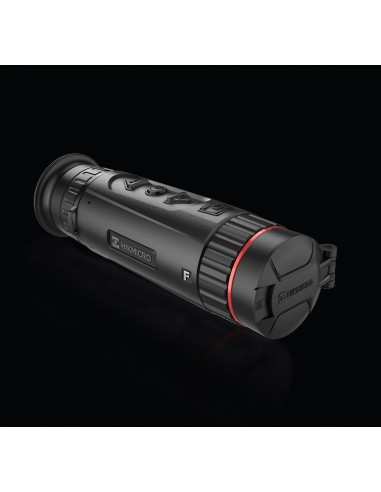

3. Rugged Magnesium Housing and Lens Coating Material Designed for Long-Term Use
The rugged magnesium housing material prevents corrosion from sweat, rain, fog and dew. The lens adopts SDLC coating technology, which can effectively prevent scratches. With IP67 waterproof rating, the device can be immersed in up to 1 meter of water for up to 30 minutes. It is perfect for constant and heavy use.
Replaceable and rechargeable high-capacity battery for non-stop observation time
With a single battery pack, the device can work up to 7 hours. Thanks to the convenient replacement function, you can use another backup battery for uninterrupted operation. In addition, power banks connected via Type-C interface can be used as external power supplies.
See further or further. Learn more

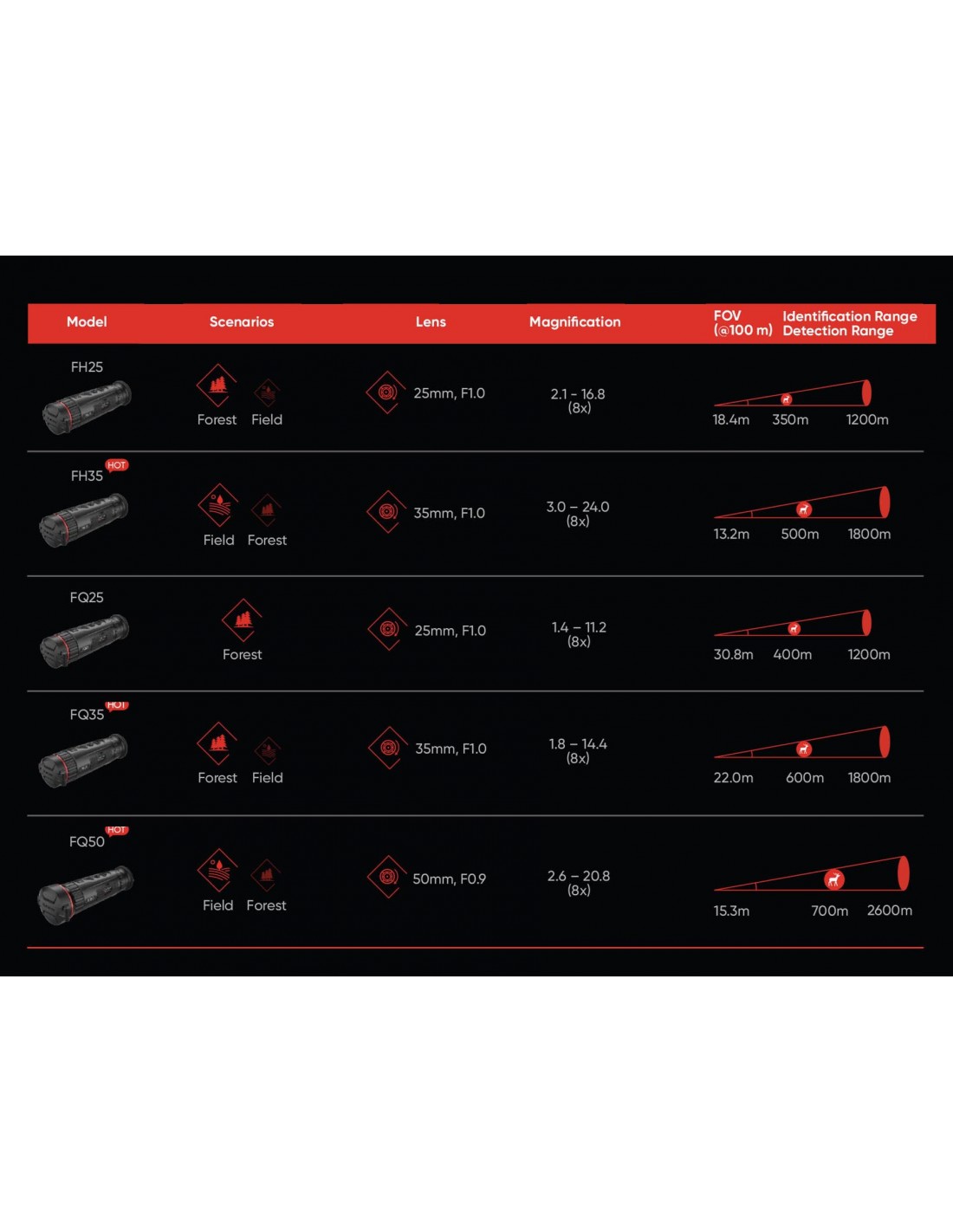

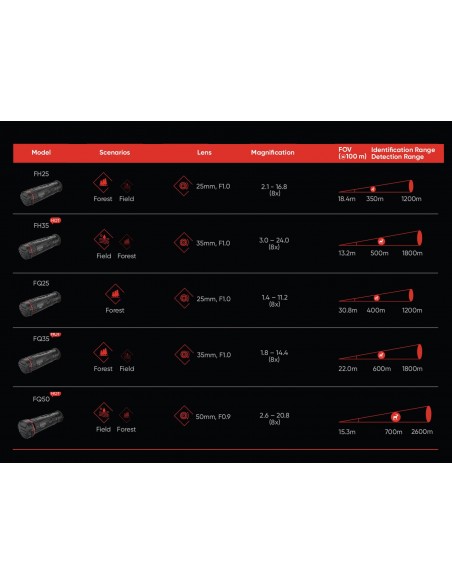

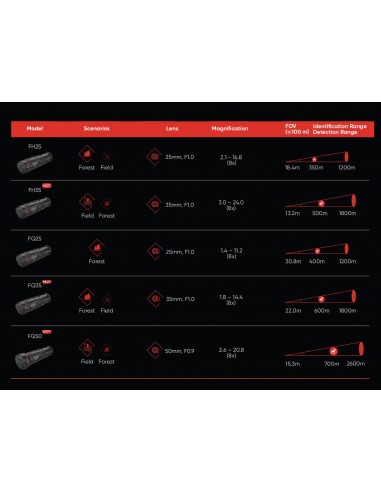

1. Long detection range of up to 2600 m and very wide field of view of up to 22 m at 100 m
Suitable for various observation scenes, it offers a significant advantage when tracking at night over long distances from an elevated hiding place in a field, or providing a perfect overview in a forest area over short distances.

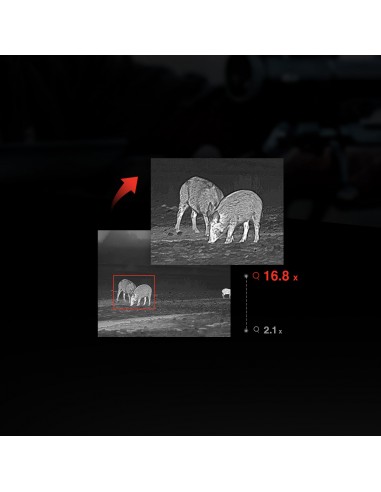

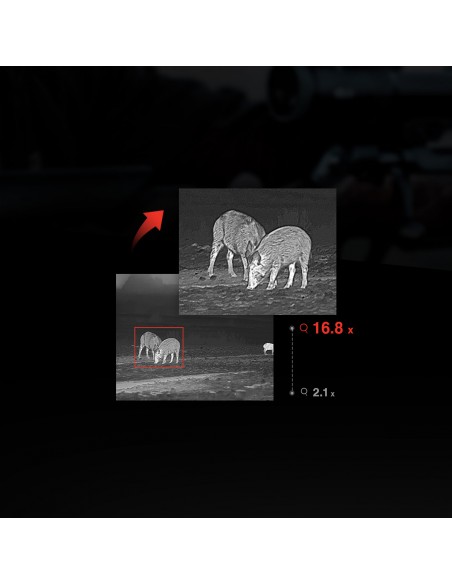

2. Powerful digital zoom, up to 8x
With the 8x digital zoom, objects can be reliably identified and recognized at any time and no detail remains hidden, even at great distances.
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 640x512
Frame Rate: 50Hz
Pixel Interval: 12μm
Response Waveband: 8μm to 14μm
NETD: Less than 20 mK (@25°C),F#=1.0
Lens (Focal Length): 35mm, F1.0
Focus Mode: Focus Ring
Min. Focusing Distance: 3.5m
Magnification: 1.8×-14.4 (8x) Support Continuous Zooming
Field of View(H × V), Degrees / m @100m: 12.5° × 10.0°/21.9m × 17.5m
Detection Range: 1800m
Display: 1024x768, 0.39 inch, OLED
Contrast Adjustment: Yes
Brightness Adjustment: Yes
Palettes: Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
Exit Pupil: 4mm
Eye Relief: 15mm
Diopter (Range): -5D to +3D
Image Pro: Yes
Storage: Built-in Memory Module (64 GB)
Record Video: Yes
Capture Snapshot: Yes
Standby Mode: Yes
PIP: Yes
Hotspot: Yes
Hot Track: Yes
Distance Measurement: Yes
Audio Recording: Yes
Battery Type: Replaceable and Rechargeable Li-ion Battery
Battery Operating Time: ≥5h (25°C, with Hotspot Off)
Type-C Power Supply: 5V DC, 2A Supports External Power Supply
Work Temperature/Humidity: From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less
Protection Level: IP67
Dimension: 190.3mm × 58.3mm × 65.2mm
Weight: 455g without Battery
