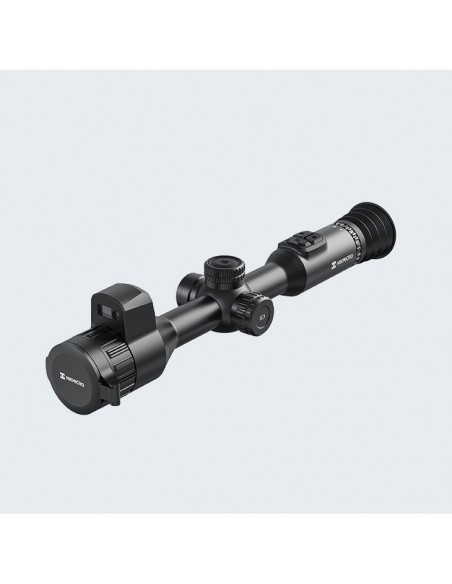

The SQ35L 3.0 is a desirable option for woodland hunters, thanks to its wide 22m field of view and modest 2.5x base magnification. The substantial 35mm objective lens has also been adapted to the needs of hunters in the field, providing exceptional clarity and depth of detail. It is a versatile tool, suitable for both types of hunting enthusiasts.
Exceptional image quality
High-end thermal sensor for improved visibility
The HIKMICRO Stellar 3.0 is equipped with a 640 thermal sensor, to offer superior image quality.
High thermal contrast (NETD<15mK) captures the smallest details
With a NETD of less than 15mK, the new STELLAR 3.0 is able to detect temperature differences with extreme clarity, reaching a new level of precision. The more sensitive the device, the greater the perception of the entire scene, which is clear and rich in details. In this way, it is possible to always have the territory under control and always make the right choice when hunting.
The large 1.03" display guarantees the best viewing experience
The new HIKMICRO STELLAR 3.0 has a 1.03" OLED display with 2560x2560 resolution to offer the best viewing and aiming experience on your hunting trips, helping you to observe more details without fatigue, even in prolonged use. It is also possible to choose the classic view with a square or rounded display, to meet the needs of every hunter. It's all up to you. Choose between the sub-round or square viewing modes to adapt to your hunting style and preferences.
Uninterrupted viewing with innovative Shutterless Technology (HSIS)
HSIS (HIKMICRO Shutterless Image System) does not cause any loss of image quality, it is based on the continuous study of different grey backgrounds and is a dynamic learning process. This eliminates the need for periodic calibration pauses, ensuring that you never miss a critical moment in the field. Enjoy an uninterrupted viewing experience with the innovative HSIS technology of HIKMICRO STELLAR 3.0.
The new Image Pro 2.0 algorithm guarantees images rich in detail
When hunting, when observing the environment where the animal is located, it is important to observe the details of the animal itself. Thanks to the innovative image analysis system, the new Image Pro 2.0 algorithm offers scenes with richer and more detailed details, with less noise. In this way it is possible to recognize not only the details of the prey, but also to accurately evaluate the territory in which it is located.
Redefine precision and shooting experience

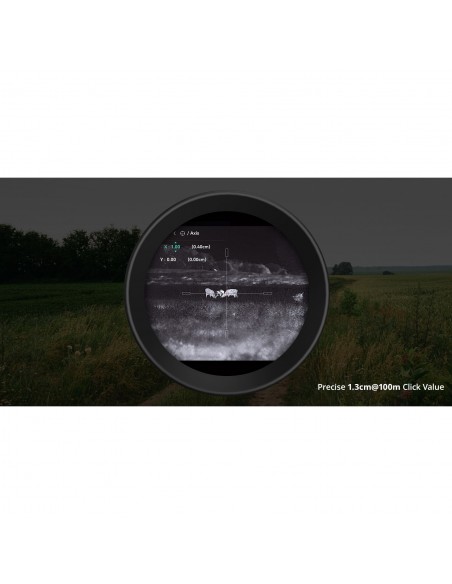

1.3 cm click at 100 m for more accurate targeting
STELLAR 3.0 guarantees perfect calibration, up to 1.3 cm at 100 meters. With STELLAR 3.0 it is easy to calibrate the optic perfectly and allows you to have greater precision during your hunting trips, increasing your performance.

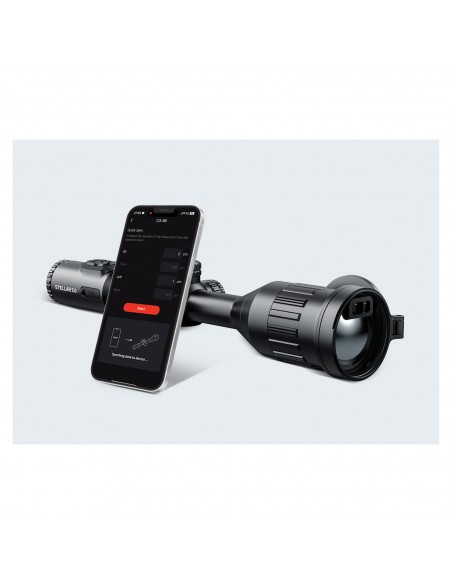

Quick calibration via device or via App
In addition to remote control, content to browse and download and firmware updates, with the HIKMICRO Sight App you can calibrate your STELLAR 3.0 quickly and easily. Configure the deviation of the impact point compared to the aiming point via App and quickly calibrate your optic in record time and with just one shot.

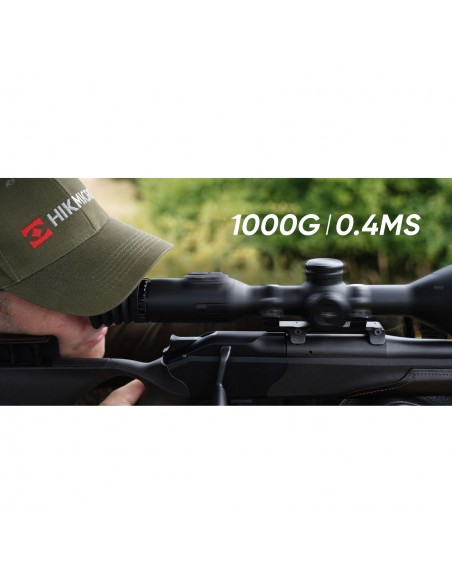

High shock resistance
The magnesium alloy body and robust components ensure that the new HIKMICRO STELLAR 3.0 can withstand shocks of up to 1000g/s generated by larger calibers, such as .375 H&H, 12 gauge and 9.3x64
Maximum usability for the best hunting experience
Ergonomic and efficient design

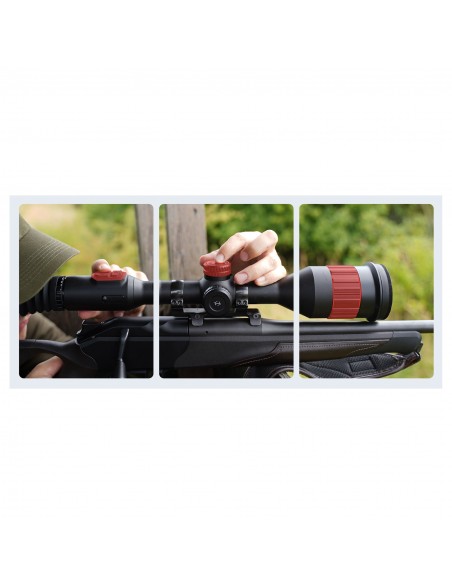

The STELLAR 3.0 thermal optic continues its tradition of classic style with a 30mm tube for mounting on standard rings, meeting the needs of hunters who love traditional aesthetics. In addition, thanks to the even softer bellows, the magnetic lens cover and an even easier to use focus ring, it guarantees an even more intuitive user experience.
Low consumption, to have all the time your passion needs
The two internal rechargeable batteries, in combination with the external replaceable and rechargeable 18650 battery, offer a battery life of up to 9 hours of continuous use. Thanks to this configuration, you can live your passion to the fullest, without fear of running out of batteries at the moment of action.
Relive the best moments directly from the STELLAR 3.0 display
With the automatic recording function on shot, the new STELLAR 3.0 will automatically produce a video that includes a few seconds before and after the shot. The videos are saved in the local album: this way you can relive your hunting action directly from the STELLAR 3.0 screen immediately after the shot.
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 640x512
Frame Rate: 50Hz
Pixel Interval: 12μm
Response Waveband: 8μm to 14μm
NETD: Less than 15 mK (@25°C, F# = 1.0)
Lens (Focal Length): 35mm, F1.0
Focus Mode: Focus Ring
Detection Range: 1800m
Min. Focusing Distance: 3m
Magnification: 2.5x-24.5x Support 1× step value of continuous zooming
Field of View(H × V), Degrees / m @100m: 12.5° × 10.0°/ 21.9m x 17.5m
Display: 2560 × 2560, 1.03-inch OLED
Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil: 6mm
Eye Relief: 45mm
Diopter (Range): -4D to 4D
Brightness Adjustment: Yes
Tone Adjustment: Cold, Warm
Contrast Adjustment: Yes
Zoom Pro: Yes
Image Pro 2.0: Yes
HSIS (HIKMICRO Shutterless Image System): Yes
Record Video: On-board Video Recording
Capture Snapshot: Yes
Audio Recording: Yes
Recoil-activation Recording: Yes
Standby Mode: Yes
Storage: Built-in EMMC (64 GB)
PIP: Yes
Hotspot: Yes
Hot Track: Yes
Distance Measurement: Yes
Zeroing Profiles: 5

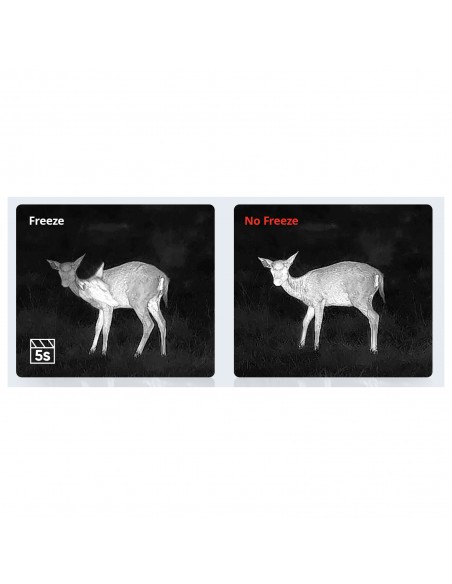

Freeze Zeroing: Yes
Max. Recoil: 1000g/0.4ms
Local Album: Yes
Ballistic Calculation: Yes
Battery Type: Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external)
Battery Operating Time: 9 hours continuous running (@25°C, Zoom Pro, LRF on)
Type-C Power Supply: 5 V DC/2 A, USB Type-C interface Supports QC3.0 * Only the built-in battery will be charged via the type-C cable. Use the battery charger to charge the external battery.
Mounting: Standard 30mm
Protection Level: IP67
Dimension: 410mm × 85mm × 86.3 mm
Weight: 830g without external battery
Working Temperature: -30 °C to 55 °C (-22 °F to 131°F)
Center Height: 32mm
Safety Class for Laser: Class 1
Wavelength: 905 nm
Max. Measuring Range: 1000 m
Measurement Accuracy: ±1 m
Min. Measuring Range: 10 m
