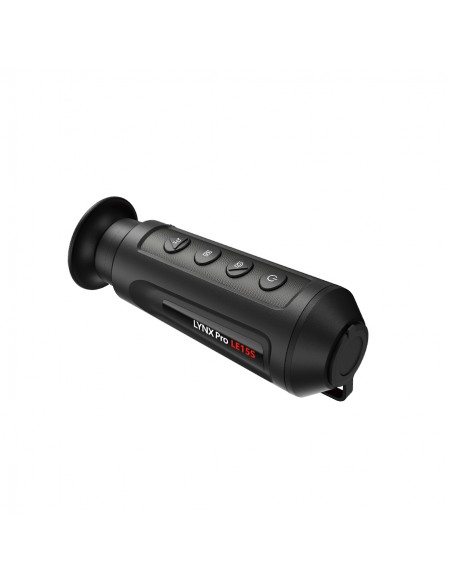

The LE15S is an excellent entry-level choice for forest and country hunters. With an updated OLED display, it offers hunters smoother and clearer images and an impressive 20.5m @100m field of view and up to 750m field of view in open field.

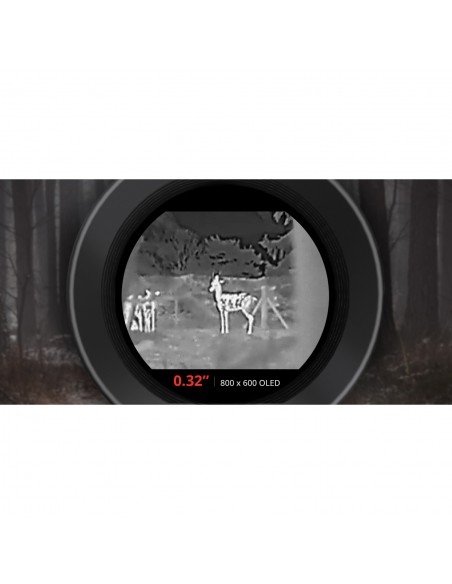

Large OLED display for more immersive viewing
0.32” 800 x 600 high-resolution OLED, which reduces power consumption and has a wider viewing angle and richer colors.
High frame rate, smoother and more detailed images
The LYNX S series features 50Hz shooting. This means that each image is enhanced with a higher dynamic range and effectively reduces eye fatigue when observing outdoors for a long time.

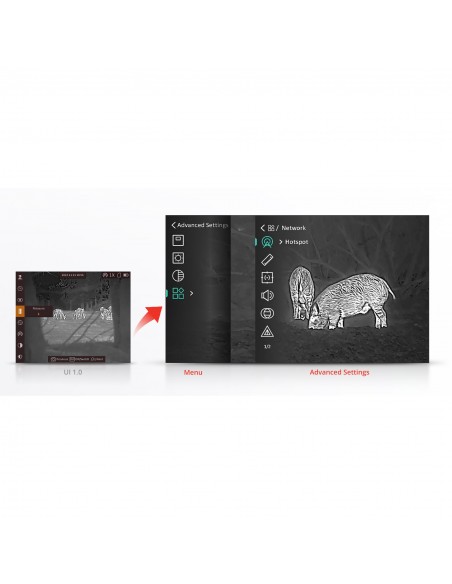

Convenient new user interface design
The new user interface design improves the operating experience, allowing you to quickly call up frequently used functions and never miss a chance to focus on your game.

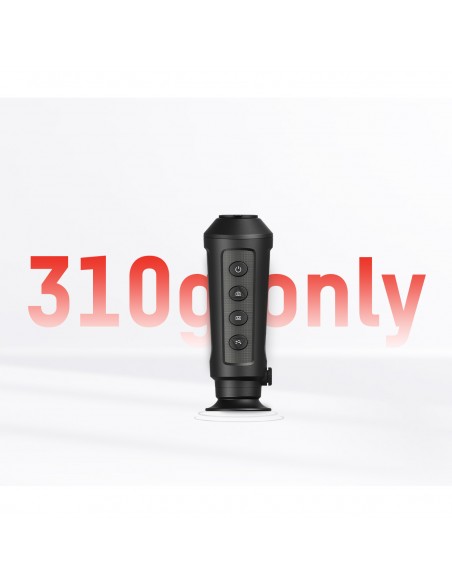

Compact and lightweight, to take anywhere
Lightweight design of only 310g / 0.68 lb.
Wide detection range helps you break through any camouflage
With the advanced image detector and lens, the detection range of a target of 1.7 meters can reach 1200 meters.

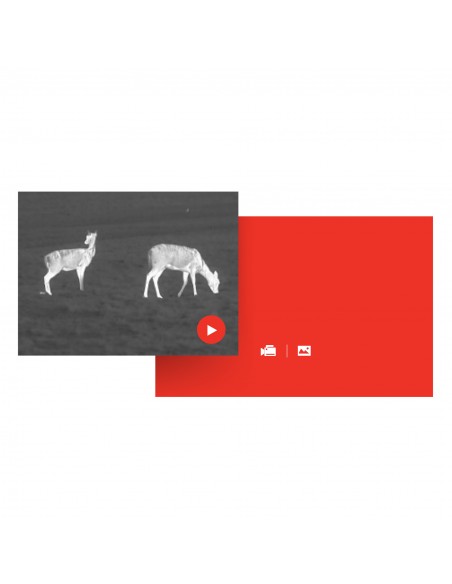

Video and Instant Photo
Built-in 8GB memory provides storage space for snapshots and video clips. Recorded files can be downloaded when connected to a PC via a USB port.

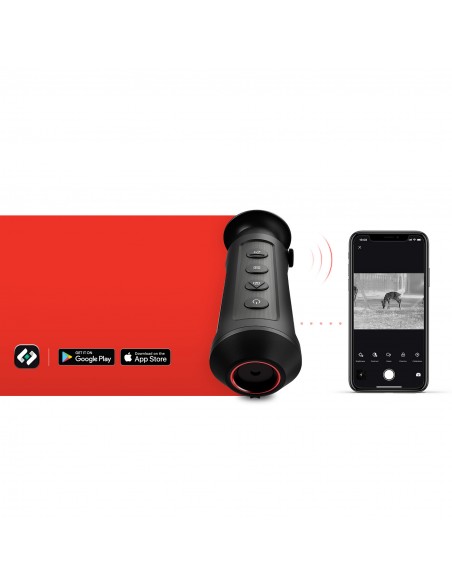

Phone App Hotspot
The built-in hotspot module makes the Sight App become a second display. Users can use digital zoom, video recording and other functions on their phones.
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 256 × 192
Frame Rate: 50 Hz
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD: Less than 35 mK (@ 25 °C),F# = 1.0
Lens (Focal Length): 15mm, f1.0
Detection Range: 750m
Focus Mode: Focus Free
Min. Focusing Distance: 10m
Magnification: 2.2x-17.6x(8x)
Field of View(H × V), Degrees / m @100m: 11.7° × 8.8° / 20.5 m × 15.4 m
Display: 800 × 600, 0.32 inch, OLED
Palettes: Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
Exit Pupil: 6mm
Eye Relief: 20mm
Diopter (Range): ﹣5D to +4D
Brightness Adjustment: Yes
Tone Adjustment: Cold, Warm
Contrast Adjustment: Yes
Record Video: Yes
Capture Snapshot: Yes
Audio Recording: Yes
Standby Mode: Yes
Storage: Built-in memory module (8 GB)
PIP: Yes
Hotspot: Yes
Hot Track: Yes
Distance Measurement: Yes
Battery Type: Rechargeable Lithium Battery
Battery Operating Time: 8 hours continuous running with hotspot function off (@ 25 °C) 6 hours continuous running with hotspot function on (@ 25 °C)
Type-C Power Supply: 5V DC, 2 A Supports External Power Supply
Protection Level: IP67
Dimension: 158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")
Working Temperature: - 20 °C to 55 °C (- 4 °F to 131 °F)
Weight: 280 g (0.62 lb)
