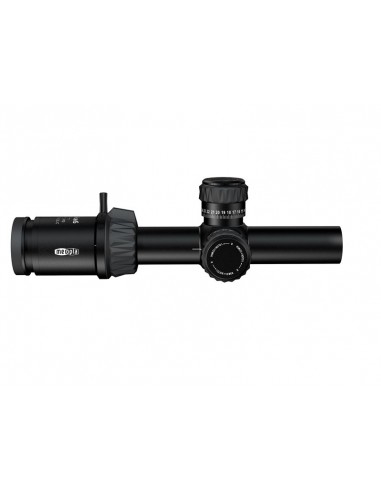

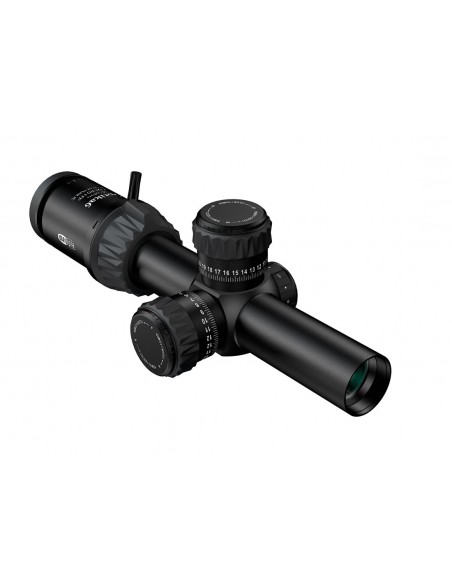

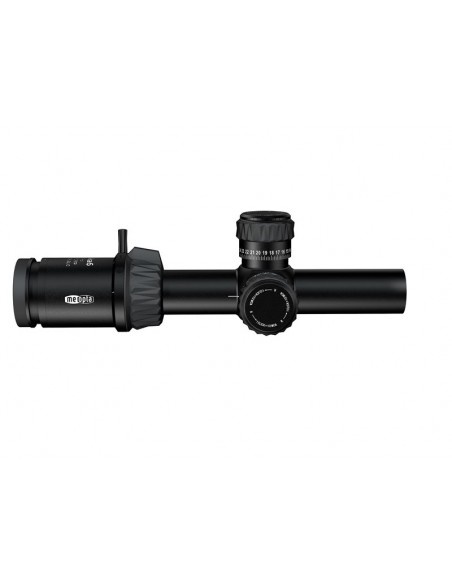

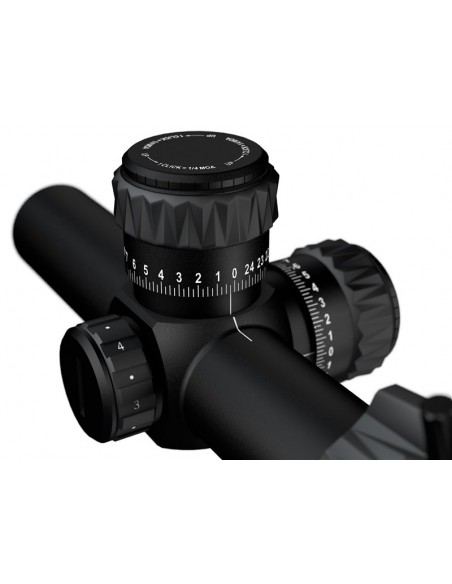

MEOPTA SCOPE OPTIKA6 1-6X24 RD FFP RETICLE .223 RD ILLUMINATED

The Meopta Optika6 1-6x24 is best suited for fast-paced medium range competition and hunting. The 1X bottom end of the 6x magnification range allows for fast reflexive shooting, while 6x allows you to zero in on more distant targets with ease. Second Focal Plane (SFP) models feature capped 0.5 MOA windage and elevation adjustments, while First Focal Plane (FFP) models feature exposed, locking adjustments for rapid correction in the field. Available with illuminated reticle for hunting challenges.

Technical data:

Magnification: 1 - 6 x
Objective lens: 24 mm
Objective Filter Thread: M28.2x0.75
Main Tube Size: 30 mm
Exit Pupil Diameter: 10 - 4 mm
Eye relief (mm / in): 100 / 3.94
Field of view (m/100m // ft/100yds): 36.5-6.3 // 109.5-18.9
Field of View: 20.7 - 3.6 °
Focal Plane Position: 1
Dioptric compensation: -2.5 / 3.5 D
Daylight Transmission: 91 %
Twilight Transmission: 88 %
Twilight Factor: 4.9 - 12
Impact per click (cm/100m // in/100yds): 1.5 // 0.52
Windage and elevation adjustment range (cm/100m // in/100yds): 349 // 125.7
Paralax Correction: ne y/n
Reticle: .223 RD - Illuminated
Length (mm / in): 256 / 10.07
Weight (g / oz): 578 / 20.4

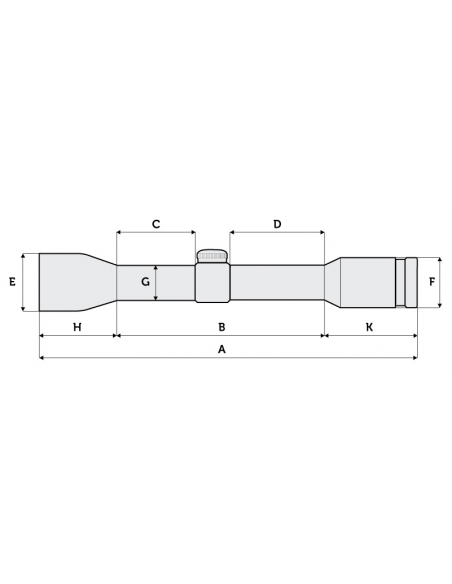

A (mm / in): 256 / 10.07
B (mm / in): 148 / 5.83
C (mm / in): 63 / 2.49
D (mm / in): 50 / 1.96
E (mm / in): 30 / 1.18
F (mm / in): 47 / 1.83
G (mm / in): 30 / 1.18
H (mm / in): 12 / 0.45
K (mm / in): 96 / 3.79
