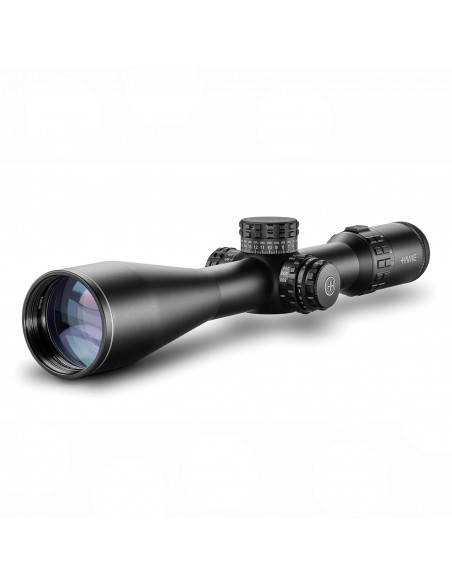

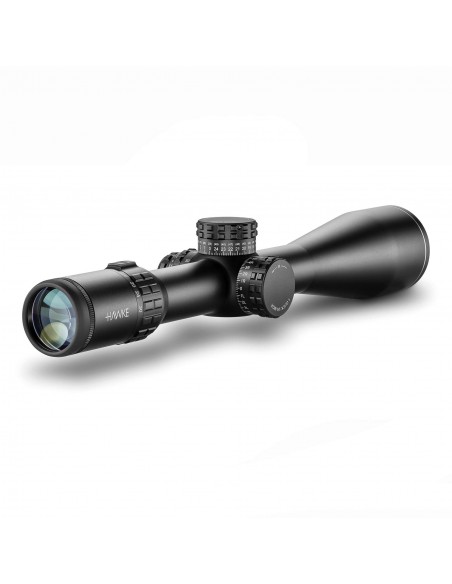

HAWKE OPTIC FRONTIER 34 FFP SF IR 5-30X56 MIL

FEATURES

- High Turrets, With Zero Stop System

- First Focal Plane Reticle (FFP)

- 34mm Mono-Tube Aluminium Chassis

- Parallax adjustment

- Red Illumination (11 levels of intensity)

- Wide Angle Field of View

- Large Volume Eyebox

- 102mm Focal Length Of

- High Intensity Multi-Led Reticle

- High Quality Low Dispersion Crown Lenses

- 21-Layer Multilayer Lens Coating

- Extended Zoom Lever (Removable)

- Quick Focusing Eyepiece Bell and High Friction Zoom Ring

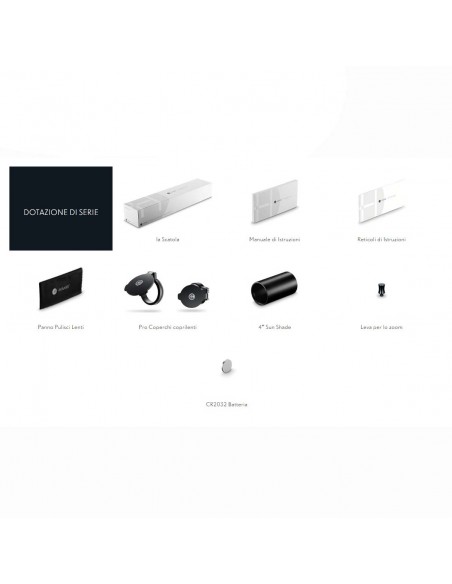

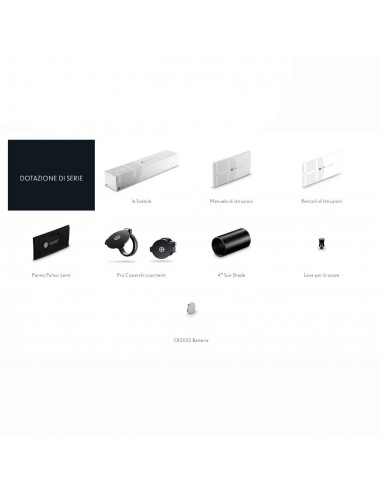

- Supplied with Professional Metal Flip-Up Lids

TECHNICAL SPECIFICATIONS

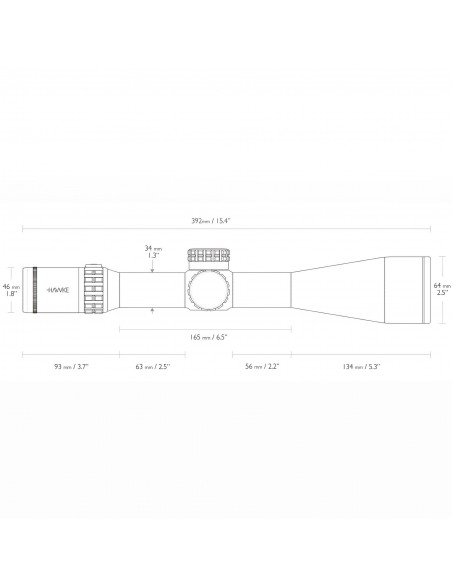

- Length: 392mm

- Weight: 830g

- Focal Length: 102mm

- Parallax/ Side Focusing: 14m - ∞

- Field of view: 7.5 - 1.3m @100m

- Output pupil: 11.2-1.9mm

THE RETICLE

The 30-magnification FFP MOA Pro Ext. reticle was developed specifically for optical systems on the first focal plane and is based on the common principles of MOA distance reticles. With MOA spacing markings extending up to 60 MOA holdovers, the FFP MOA Pro Ext. reticle is a versatile reticle that provides aiming points at any extreme distance. All reticle sizes are spaced by 1 MOA and offer 1 MOA and 0.5 MOA brackets for spotting distance. Each quarter MOA of the lower section is numbered to ensure quick and easy target acquisition and reference. The outer portions of the reticle are internally blank to ensure visibility at all magnifications.

ADJUSTMENTS

- Elevation adjustment sensitivity: 1⁄4 MOA

- Elevation adjustment range: 99 MOA

- Drift adjustment sensitivity: 1⁄4 MOA

- Drift adjustment range: 53 MOA
