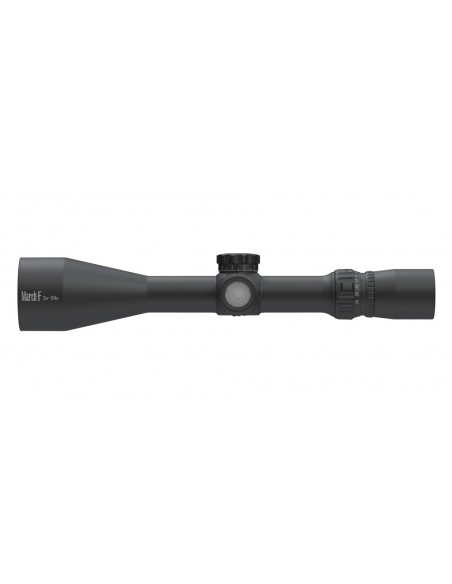

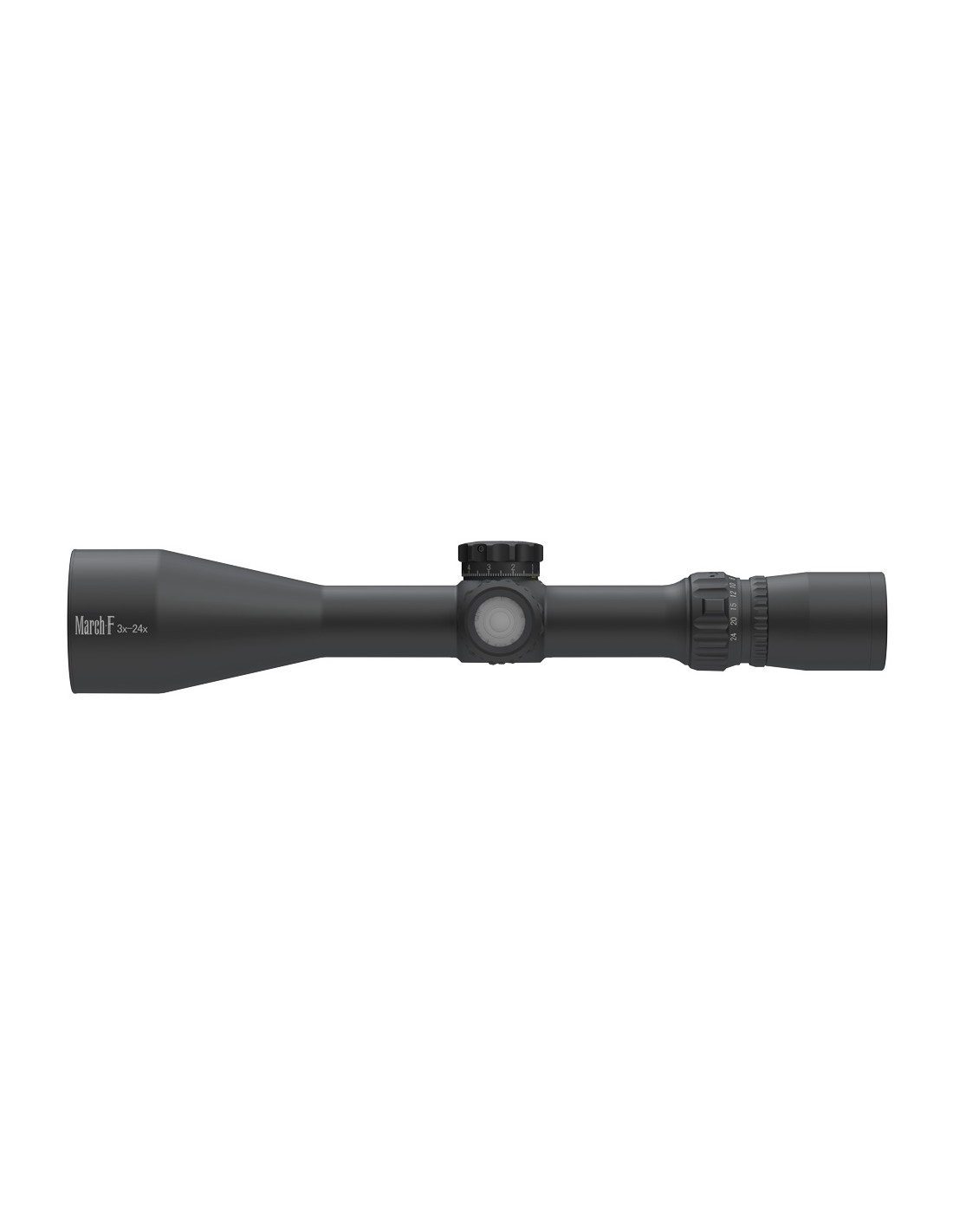

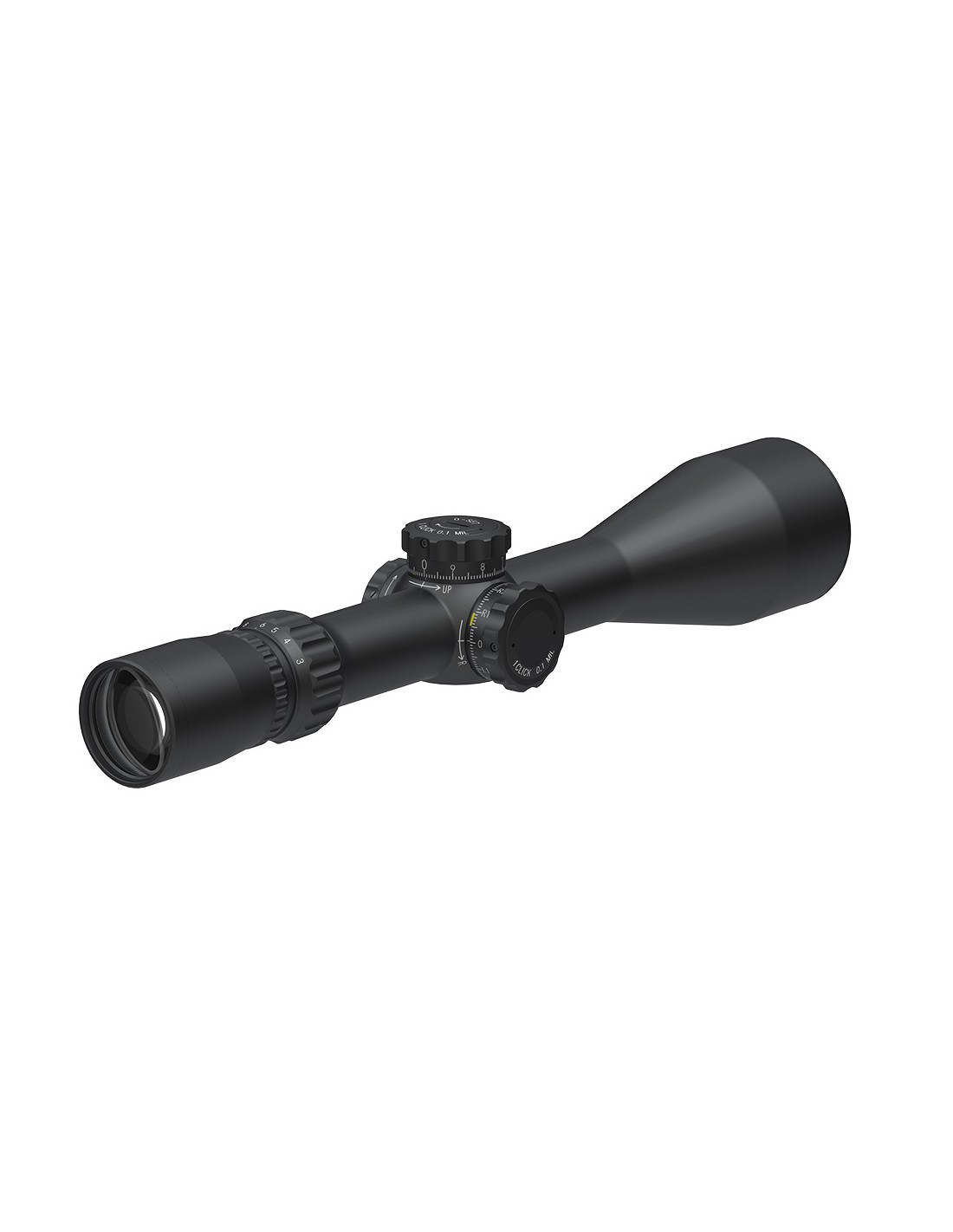

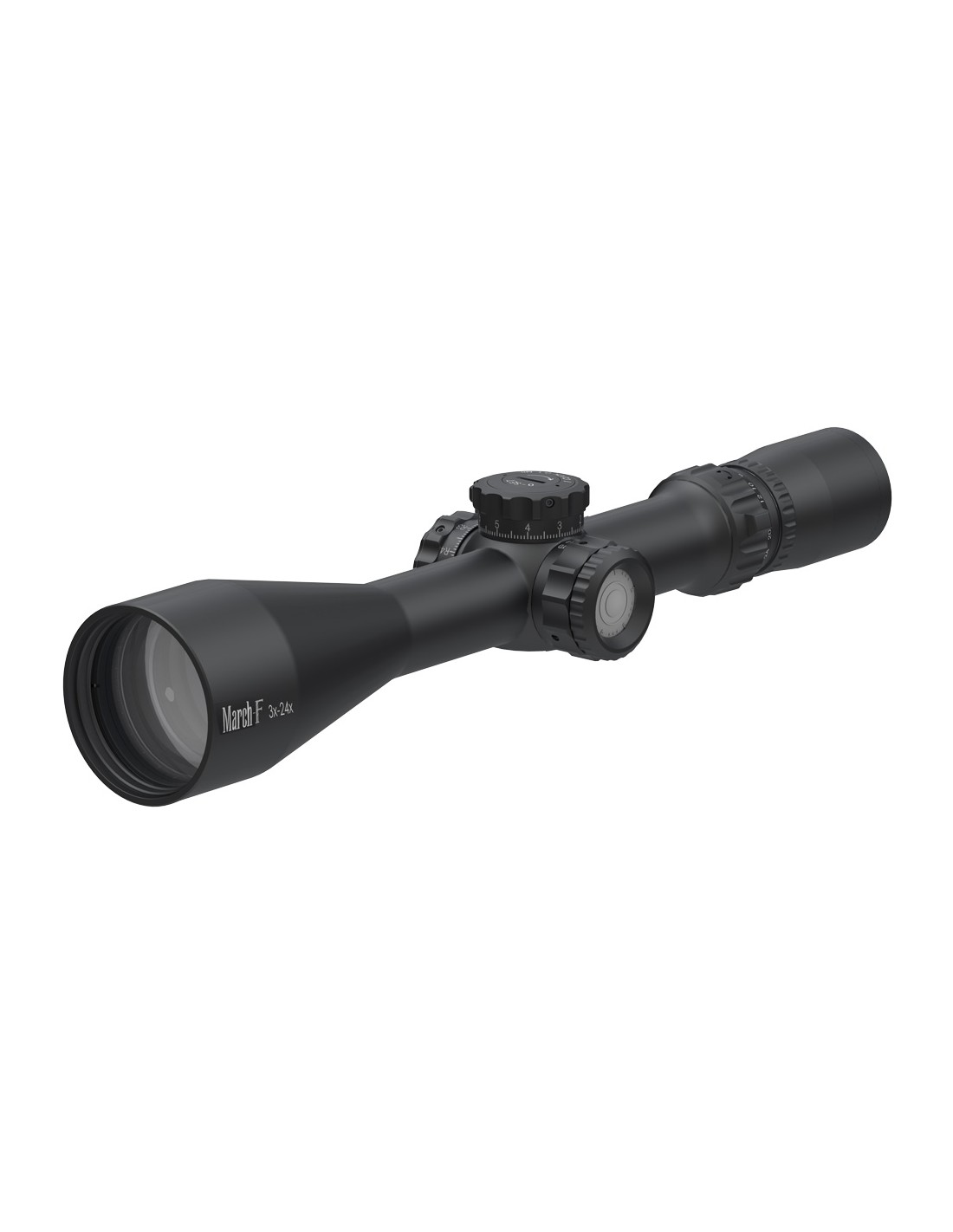

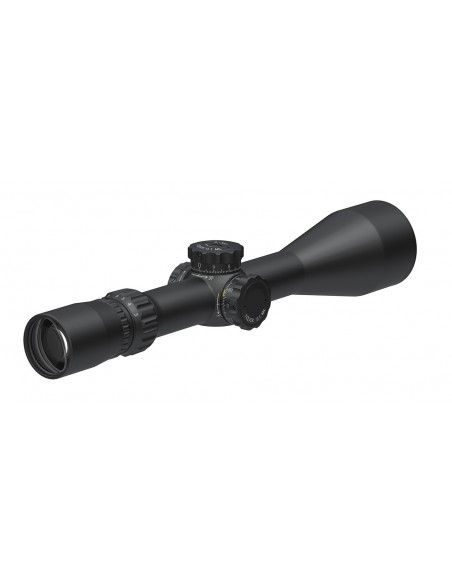

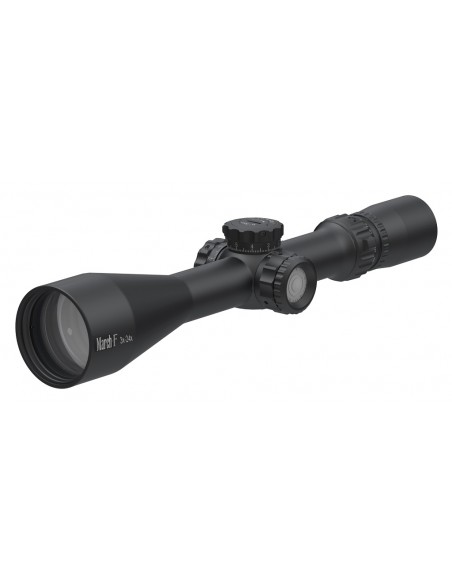

MARCH-F SCOPE 3-24X52 TACTICAL

Tactical Model (Non illuminated - illuminated)

March-F 3-24x52mm

Compact and lightweight scope perfect for hunting and general shooting.

・8X Zoom in FFP
・ED Glass
・30mm diameter body
・52mm objective lens
・Side focus 10 yard - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability

First Focal Plane Reticle Scope (FFP)

A feature of First Focal Plane design, also known as FFP, is the reticle scale value does not change over the entire zoom range. Also the point of aim (POA) does not change over the entire zoom range. Using the reticle for ranging and also with trajectory drop charts is much simplified. However, the reticle scale will get thicker when magnification is increased. The special reticle design in the March scope allows target acquisition quickly at both low and high magnification.

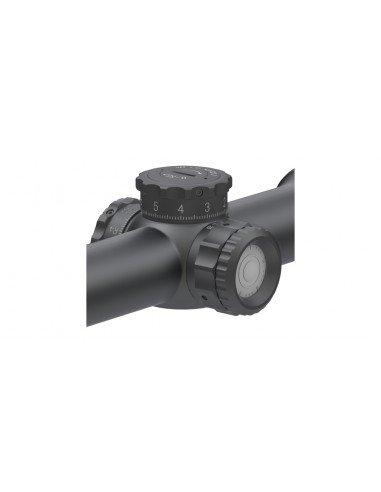

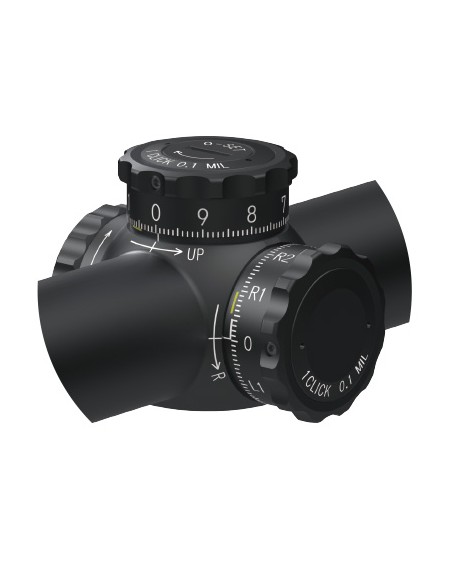

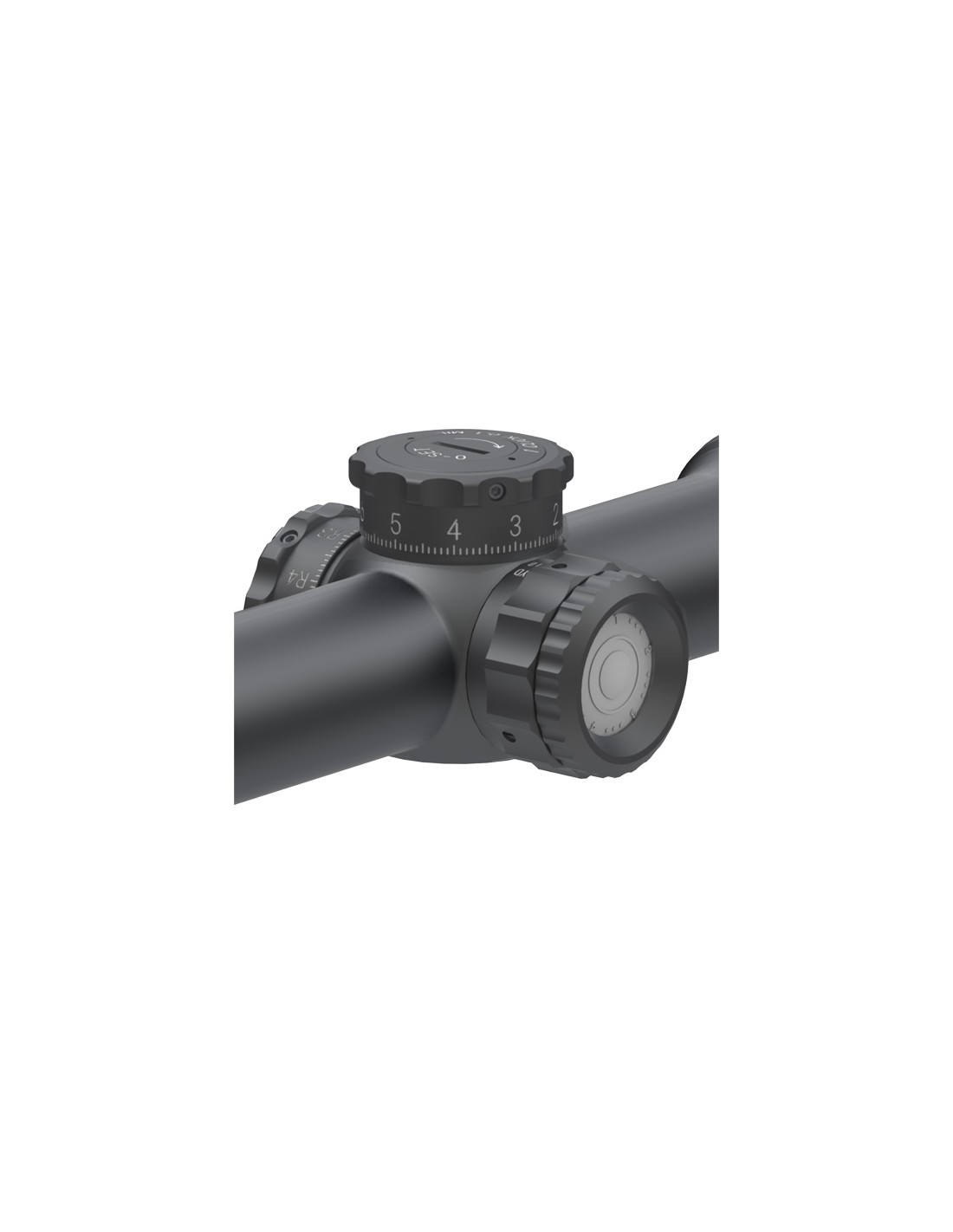

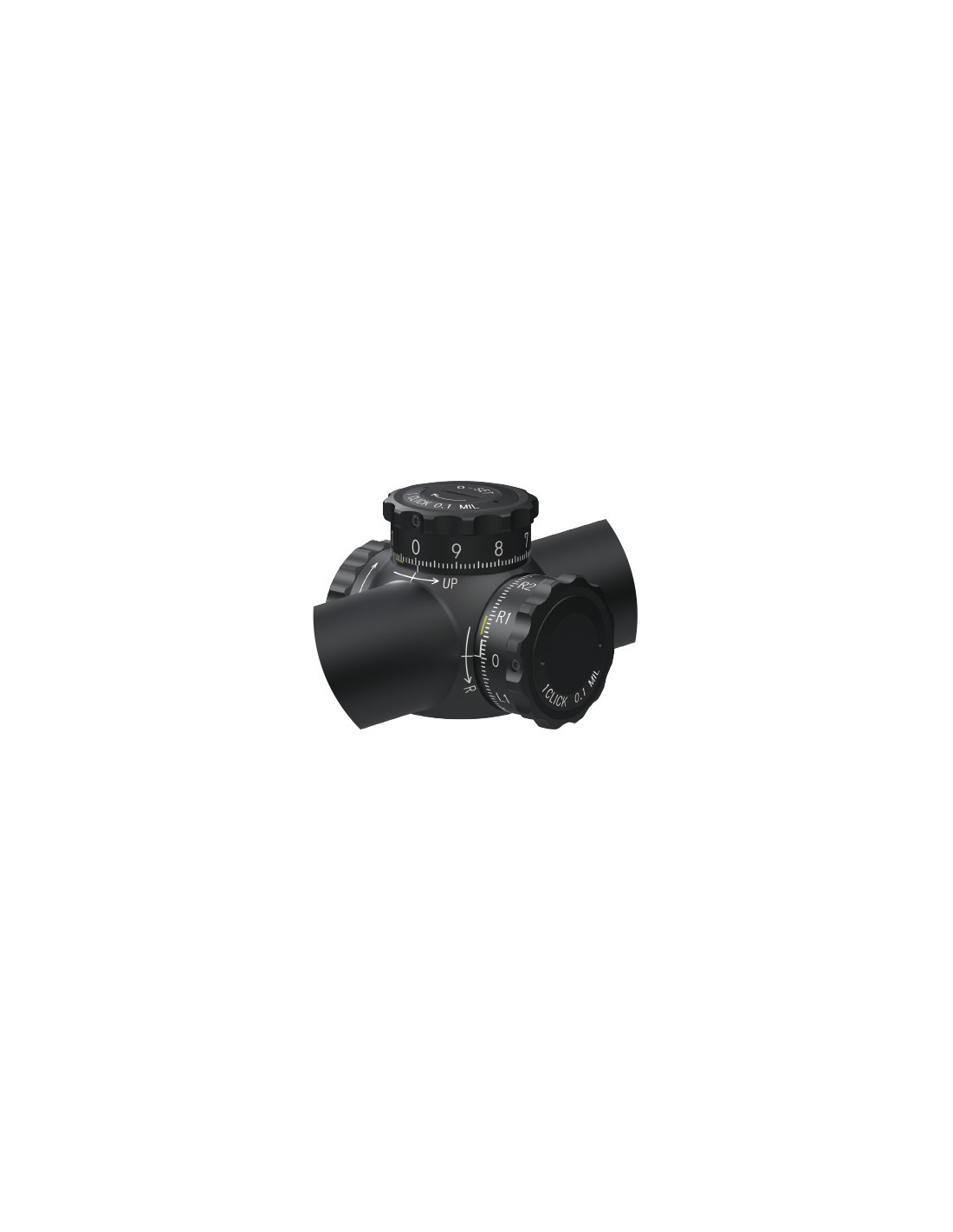

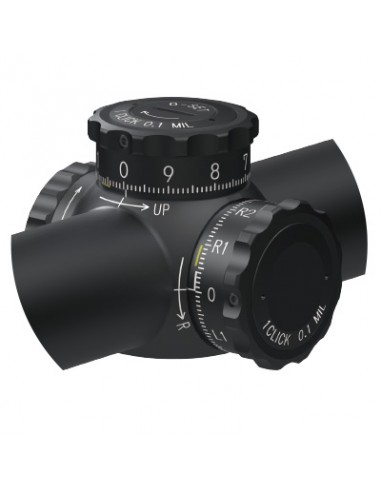

Oversized dials for elevation, windage, and side focus for easy adjustment.

The elevation dial has a 0-set function.

0.1 MIL Type

1 click adjustment : 0.1MIL (1cm @100m)
10 MIL turret revolution (100cm @100m)
0-set on Elevation turret

Technical Data:

		Low	High
Magnification		3x	24x
Effective Lens Diameter		52mm
Body Tube Diameter		30mm
Exit Pupil		--	2.17mm (0.09inch)
Field of View (real)	degree	6.67°	0.83°
	ft/100yd	35.0ft	4.3ft
	m/100m	11.66m	1.45m
Eye Relief		85-100mm (3.35-3.94inch)	89-96mm (3.5-3.78inch)
1 Click Adjustment		0.1MIL
Elevation Travel		34MIL
Windage Travel		17MIL
Focus Distance		10yd - infinity

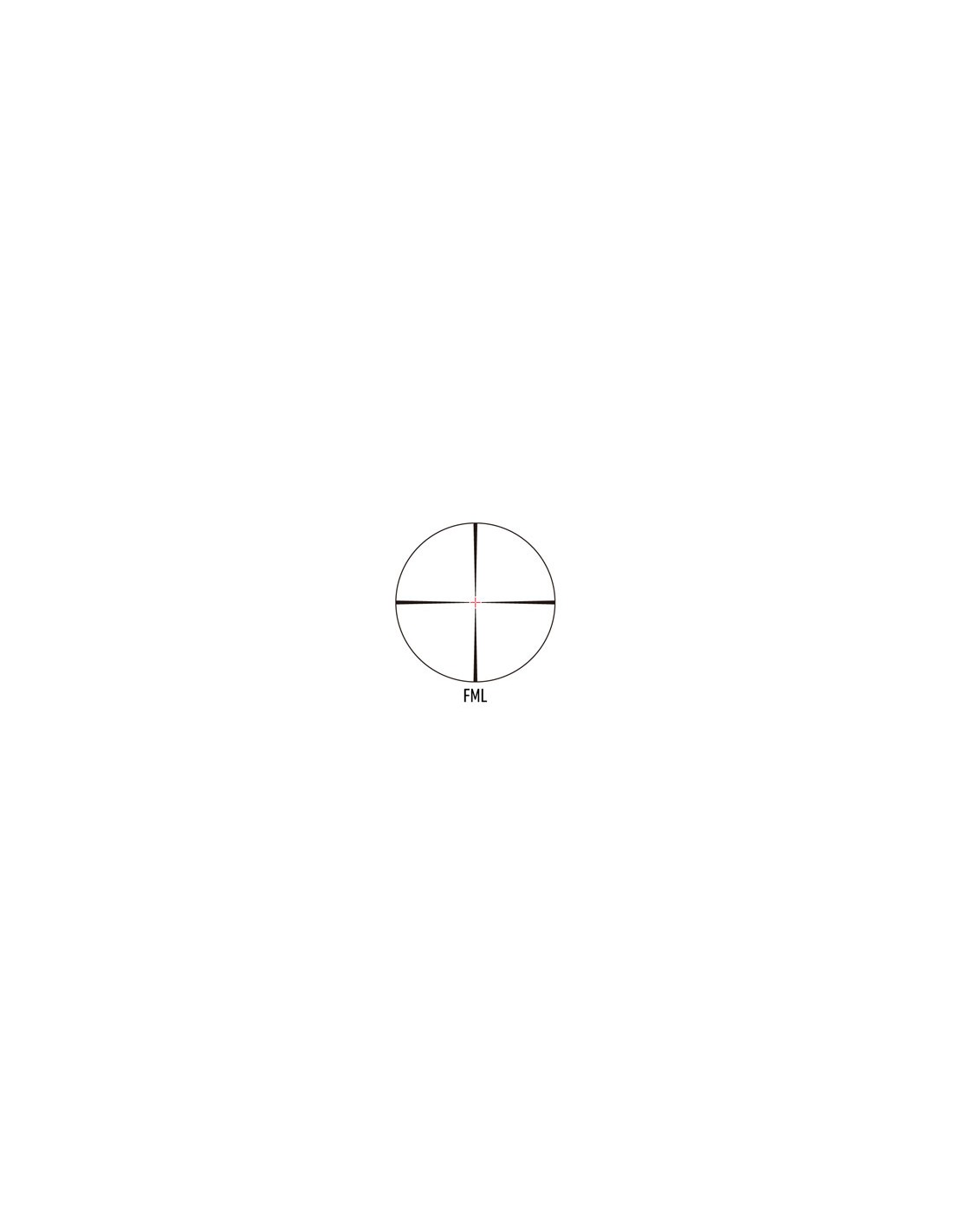

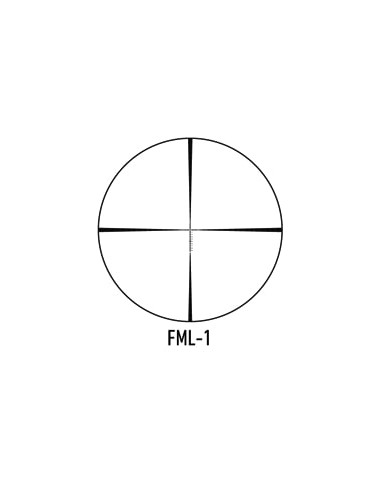

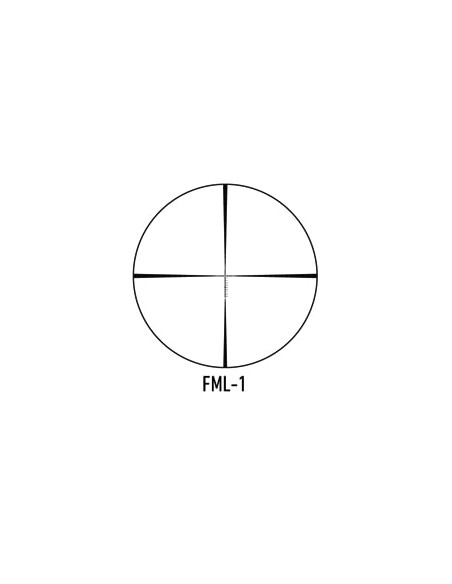

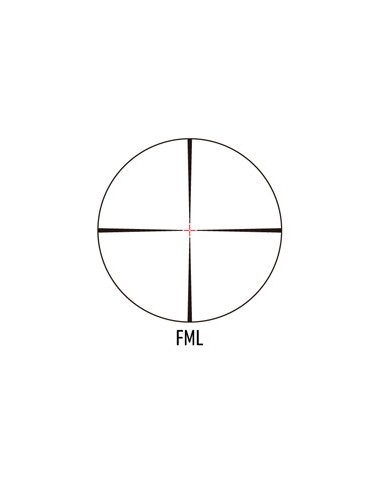

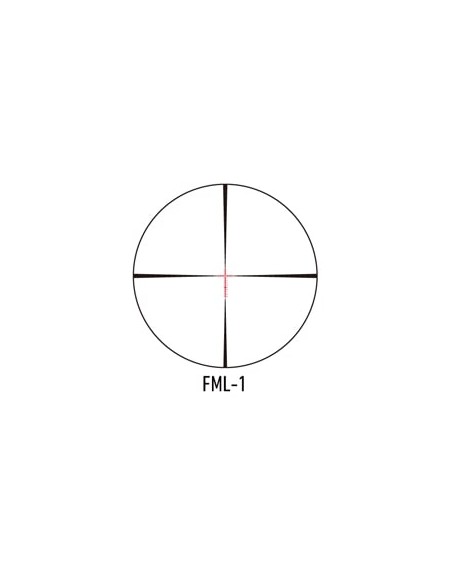

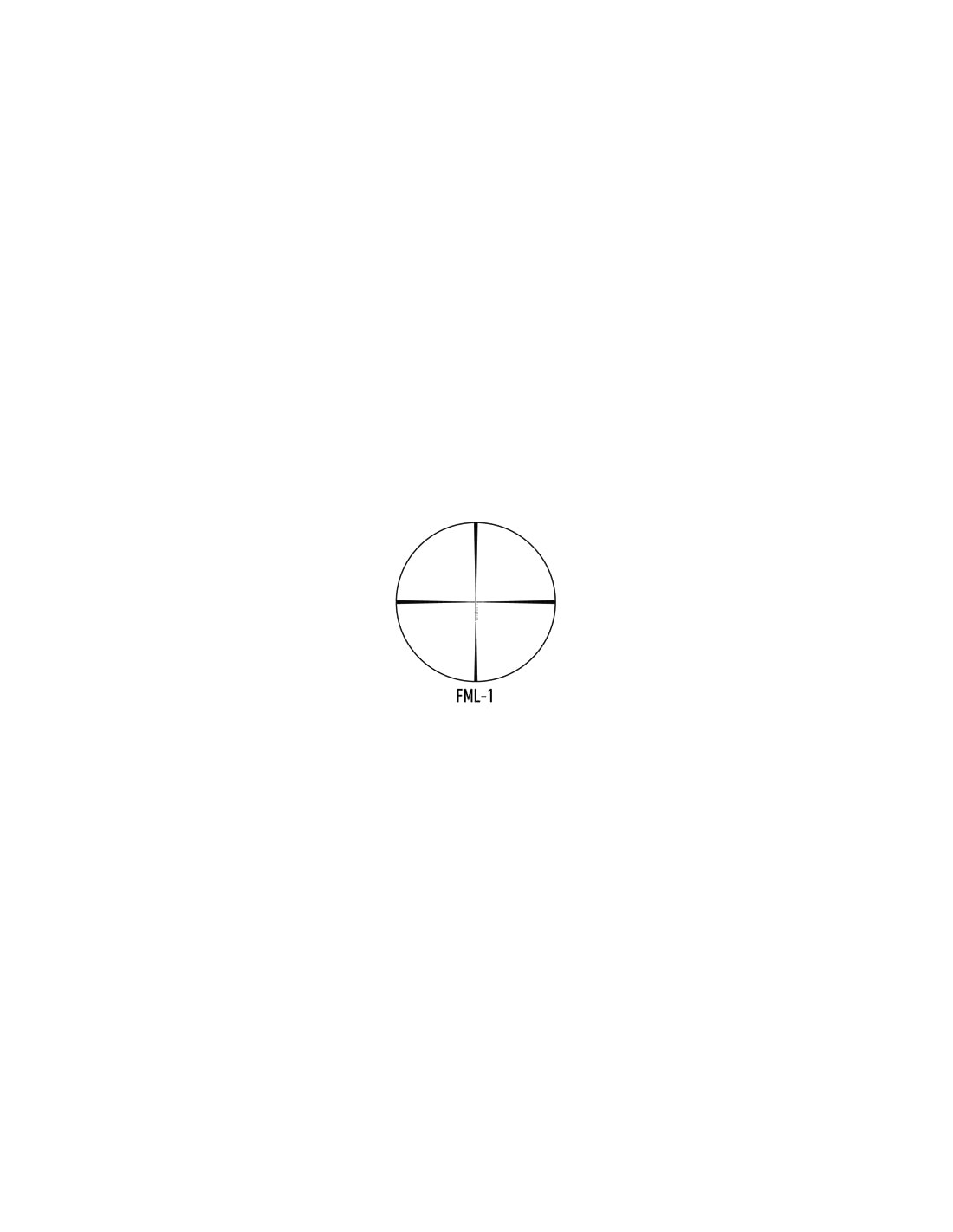

Reticle		FML FML-1
In the box		Flip Caps (Objective and Eyepiece) Sunshade Lens Cloth Fast Lever Hex wrench MD disk
Scope Size	A	336mm (13.23inch)
	B	139mm (5.47inch)
	C	60mm (2.36inch)
	D	41mm (1.61inch)
	E	105mm (4.13inch)
	F	92mm (3.62inch)
	G	53mm (2.09inch)
	H	48mm (1.89inch)
Weight		655g (23.10oz)
