- Extra-Low Dispersion (ED) Glass
- 40mm Tube Design for Extreme W/E Adjustments
- Precision Tactical Turrets with internal Zero Stop
- Exclusive ExacTrack Windage and Elevation adjustment system

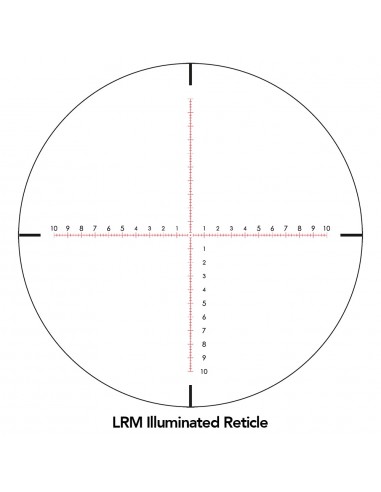

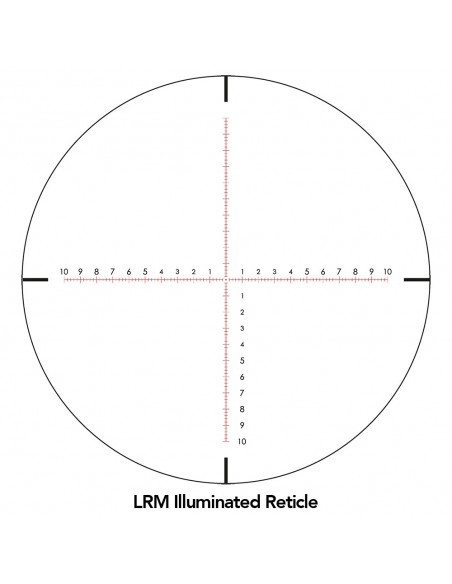

- Illuminated LRM First Focal Plane Reticle design
- Screw in Aluminum lens covers
- Lifetime Performance Guarantee

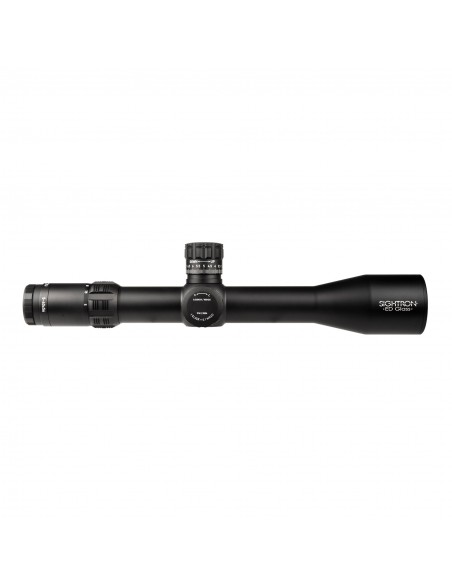

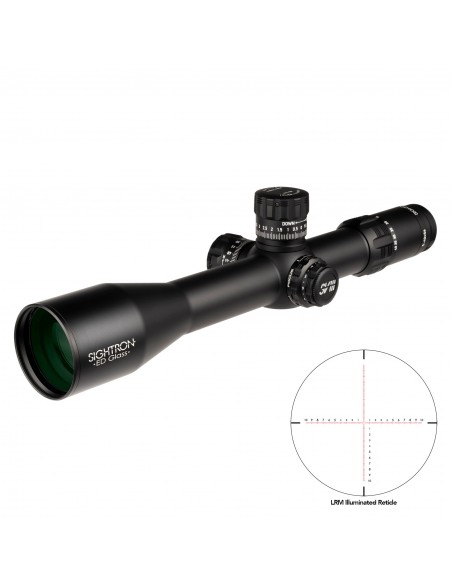

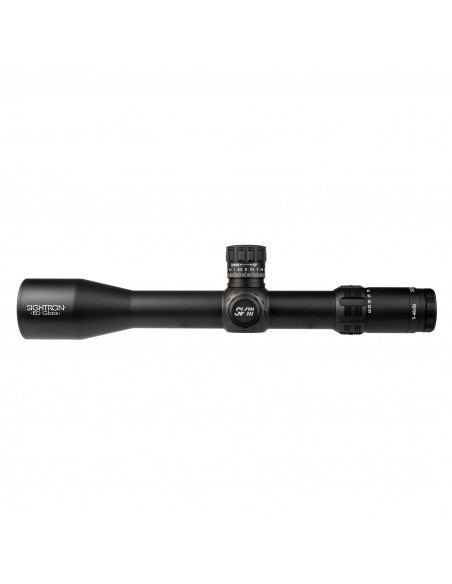

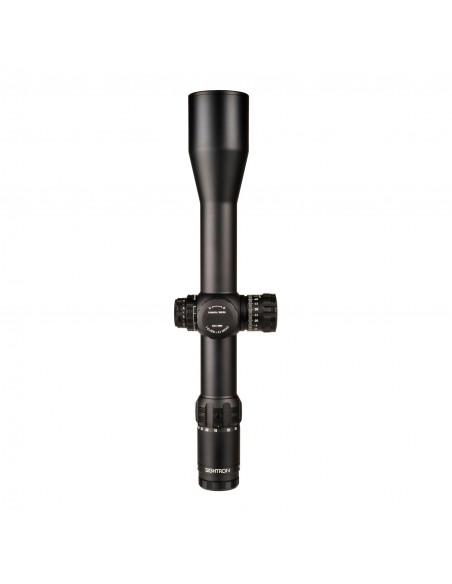

The SVIII 5-40x56 ED is a Zero-Stop First Focal Plane riflescope. It features ED Glass, a new internal zero-stop mechanism, and a First Focal Plane illuminated LRM reticle. Designed for long range target shooting and hunting, the scope provides 20 MILS of windage and 40 MILS of elevation with .1 Mil tactical knobs. The windage and elevation knobs have 10 MILS per revolution. The new 40 mm body tube is waterproof, shockproof and nitrogen charged. Minimum focus is 10 meters.

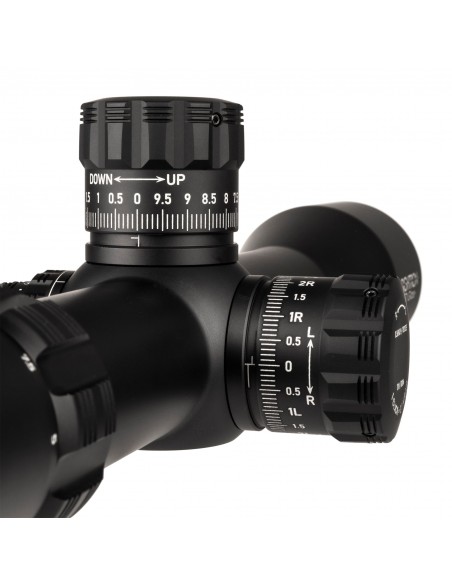

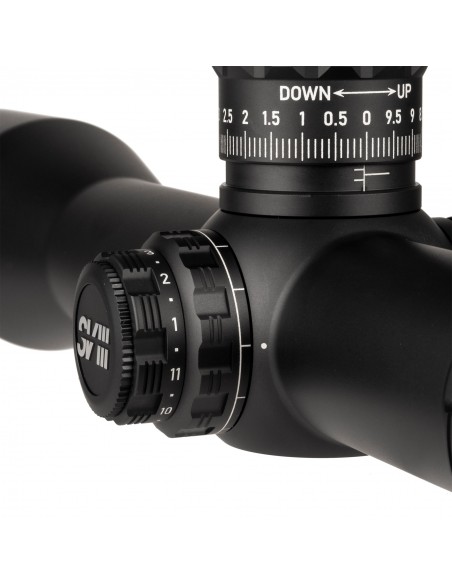

The SVIII features ED (Extra-low Dispersion) Glass provides Long Range Shooters the brightness and clarity required for accurate target acquisition. The large oversized tactical knobs are finished in black matte with high visibility markings to quickly identify your scopes settings. The Windage knob is marked for left and right so there is no second guessing when making adjustments. The new internal zero-stop mechanism provides a tactile and audible positive stop for dead-on zero settings.
For superior performance, Sightron created a new MC-777 multi-coated lens coating for increased light transmission and improved clarity. Sightron’s patented ExacTrack Windage and Elevation system is standard on all models. All reticles in this series are illuminated with a side mounted 11 position off/on rotary type dial which uses the CR2032 Battery. The side mounted focus system has been redesigned for improved minimum focus performance.

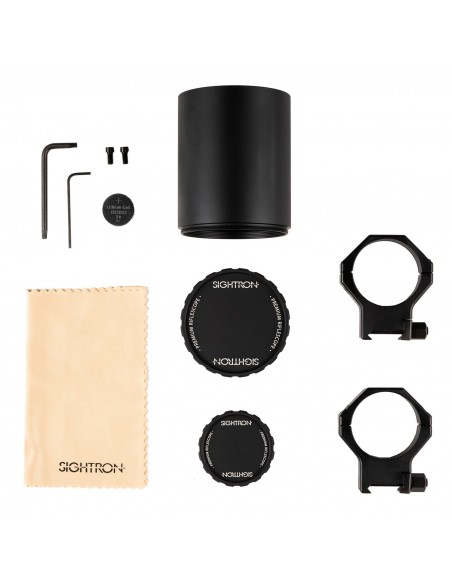

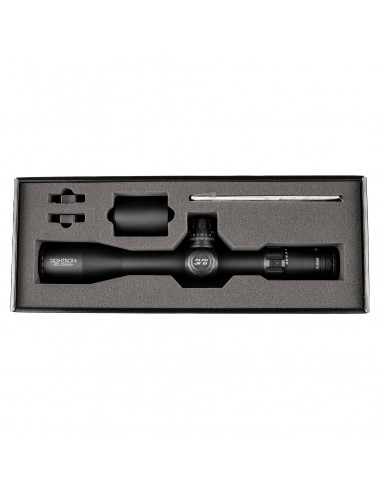

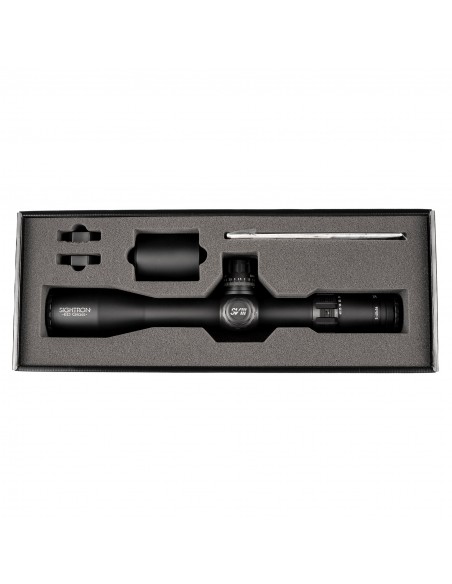

The SVIII 5-40x56 ED FFP LRM includes the following:
Scope
3-inch Sunshade
CR2032 Battery
Screw in Aluminum lens covers
Allen wrench for knob and zero stop adjustments
40mm mount rings for Picatinny Rail
Wrench T-15 for 40mm mount rings
Lens Cleaning Cloth
| Magnification |
5-40x |
| Objective Lens Diameter |
56mm |
| Eye Relief |
3.8 - 3.7 inches |
| Field of View -Meters |
7.22m - .9m @ 100 meters |
| Field of View -Yards |
23.7 - 2.97ft @ 100 yds |
| Tube Size |
40mm |
| Turret Style |
Tactical (Resettable) |
| Zero Stop |
Yes |
| Click Value |
.1 MRAD @ 100 meters |
| Minutes Per Revolution |
10 MRAD |
| Max Elevation Adjustment |
40 MRAD @ 100 meters |
| Max Windage Adjustment |
20 MRAD @ 100 meters |
| Parallax Setting |
10 meters to Infinity |
| Focus Type |
Side Focus |
| Reticle Type |
LRM IR |
| Focal Plane |
First |
| Illumination |
Yes |
| Finish |
Matte Black |
| Waterproof |
Yes |
| Anti-Reflection Tech |
MC-777 Fully Multi-coated |
| Fog Proof |
Yes |
| Length |
16.8 inches |
| Weight |
49.0 oz. |
| Sunshade |
Included |
| Item Number |
29001 |
