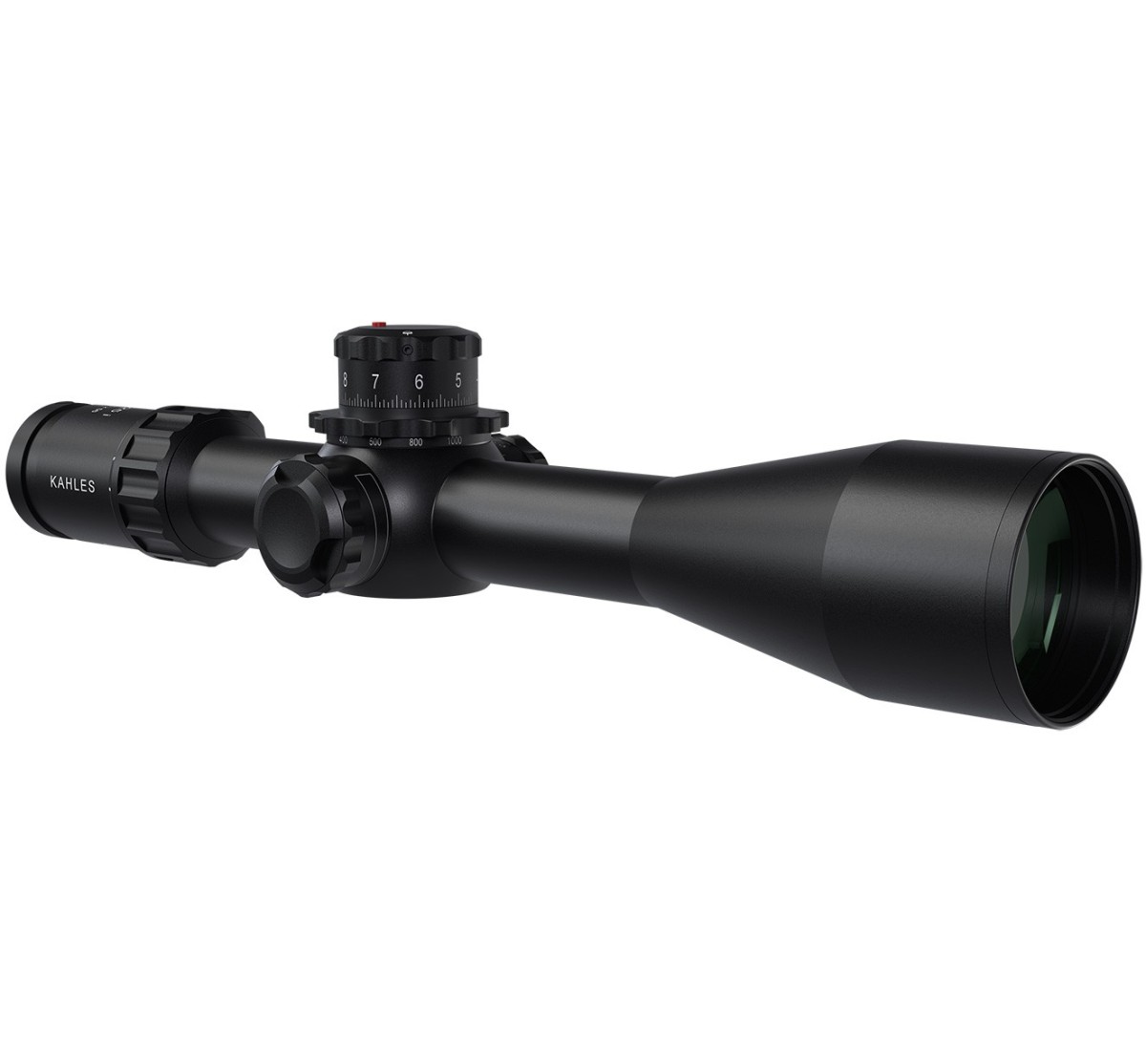

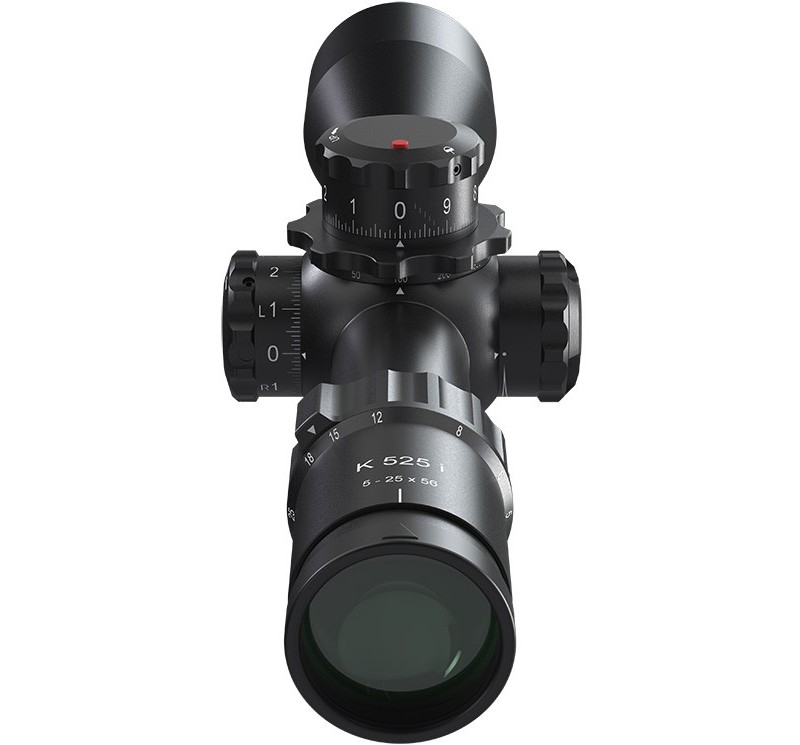

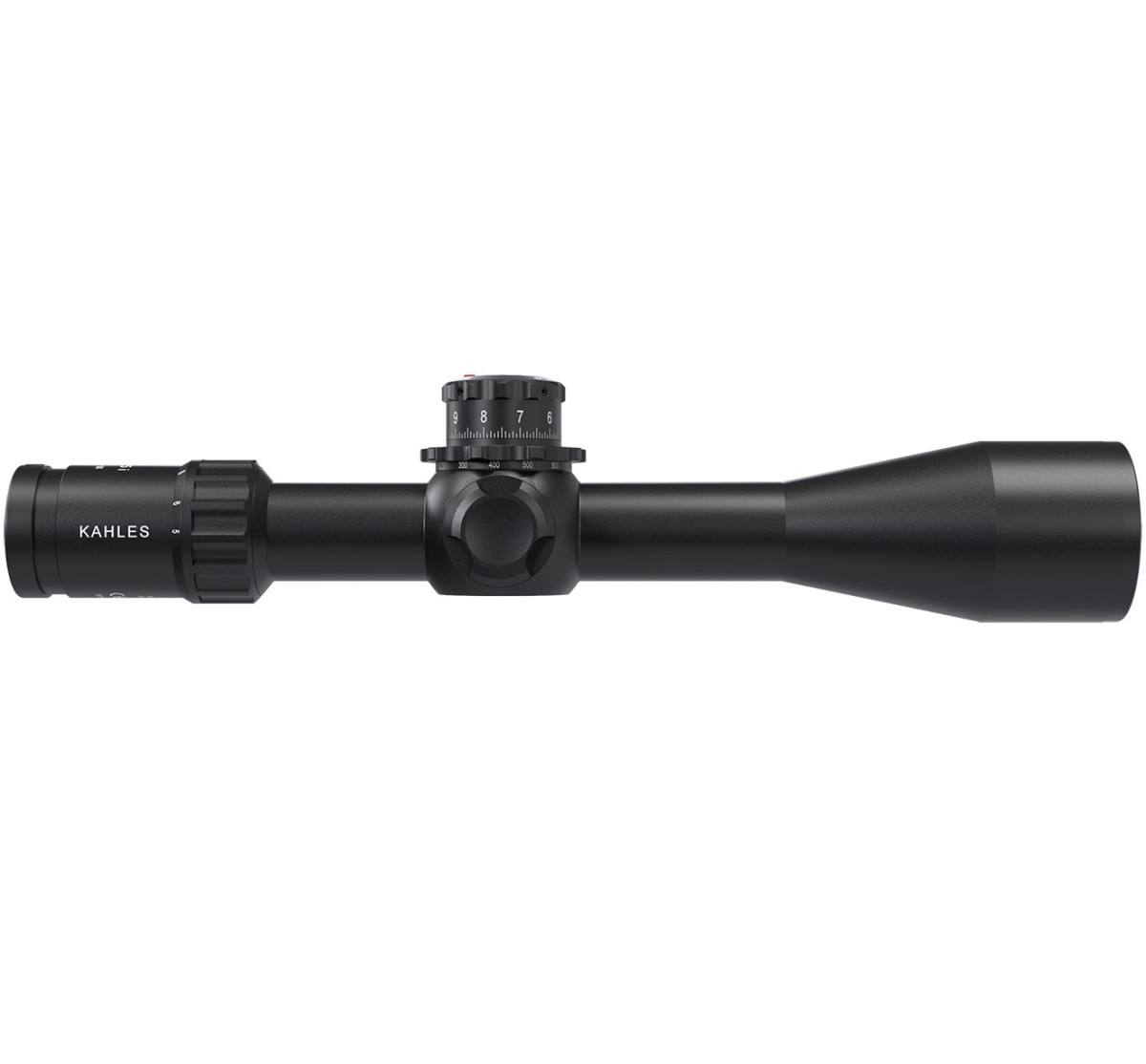

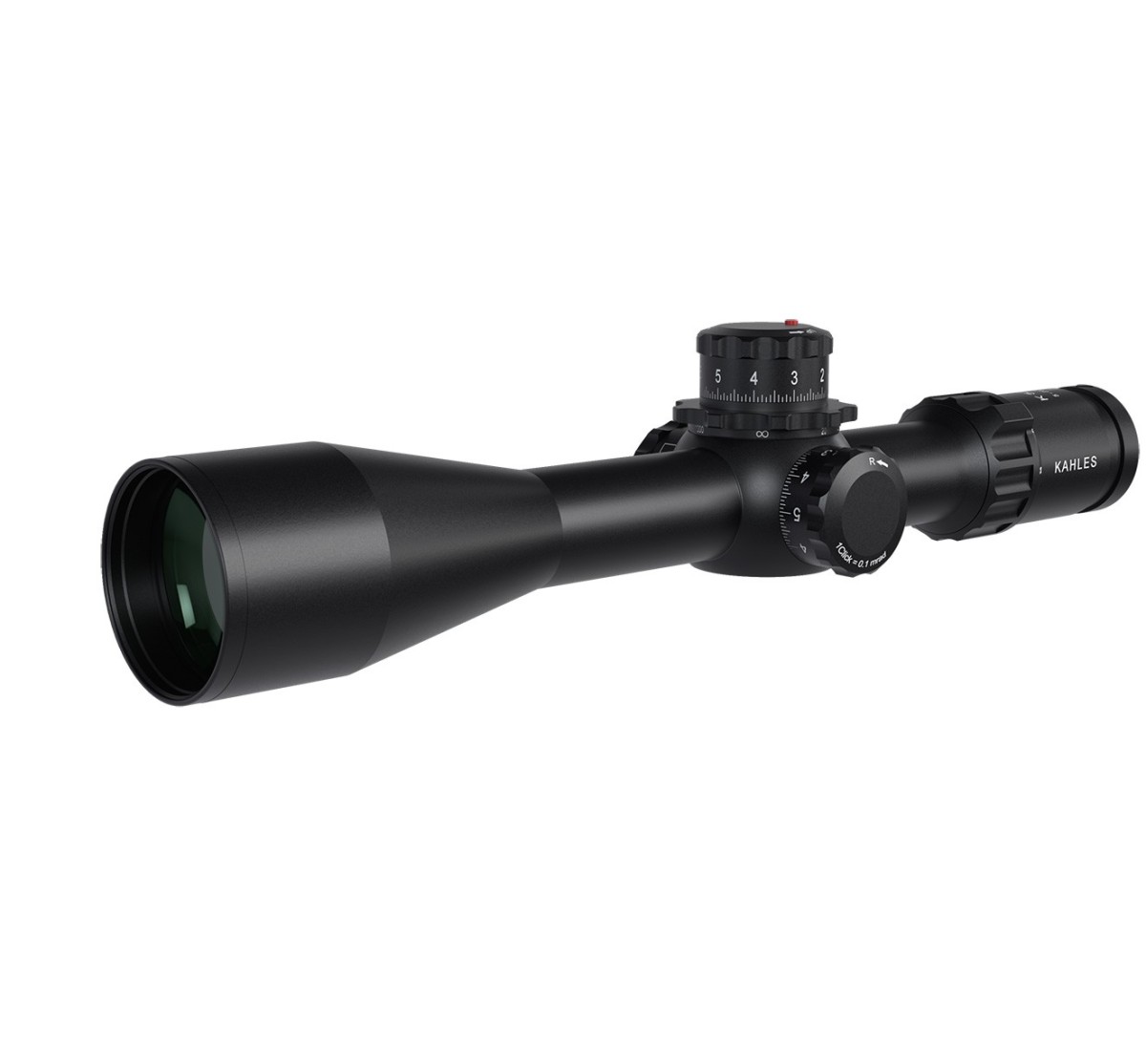

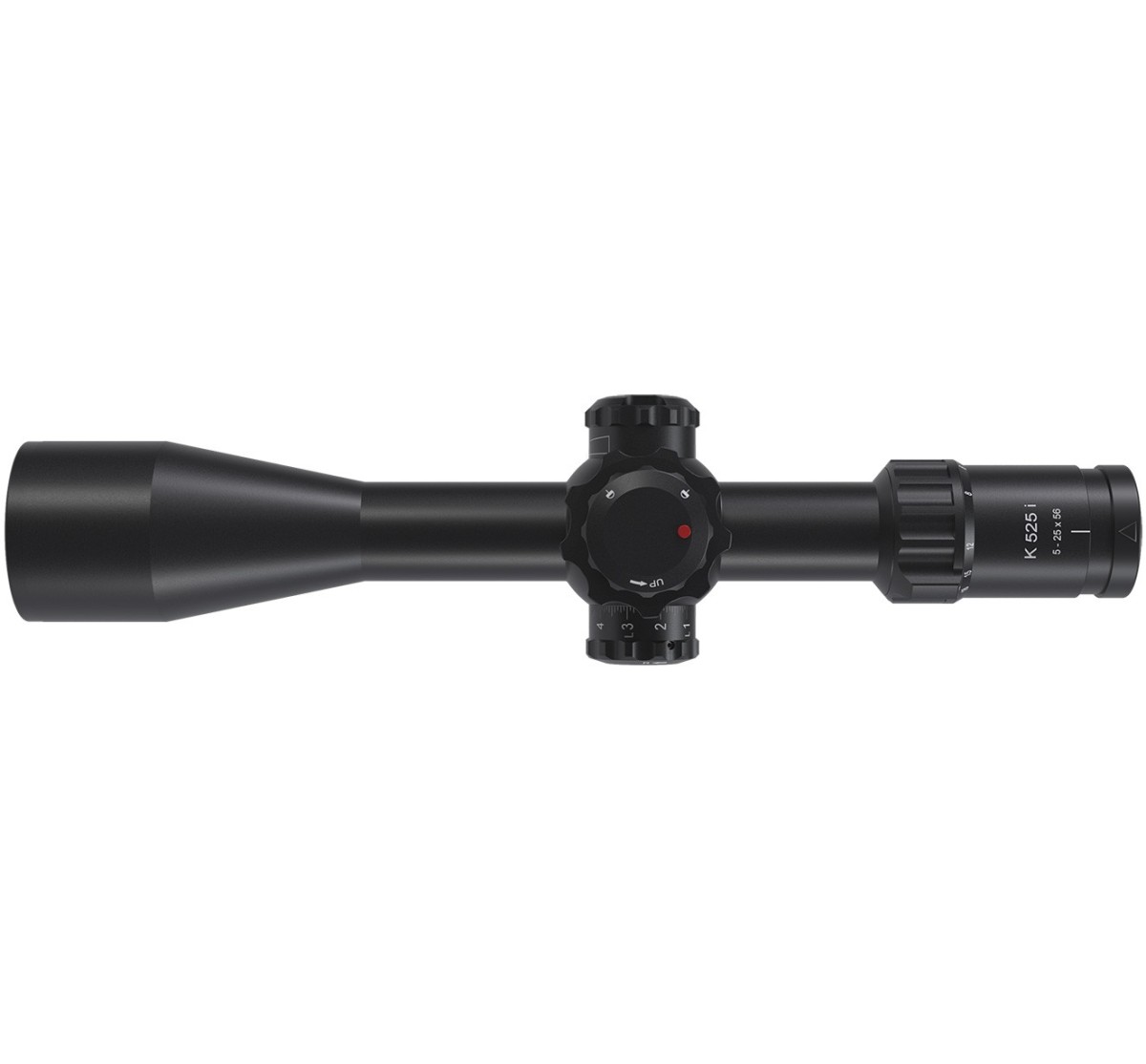

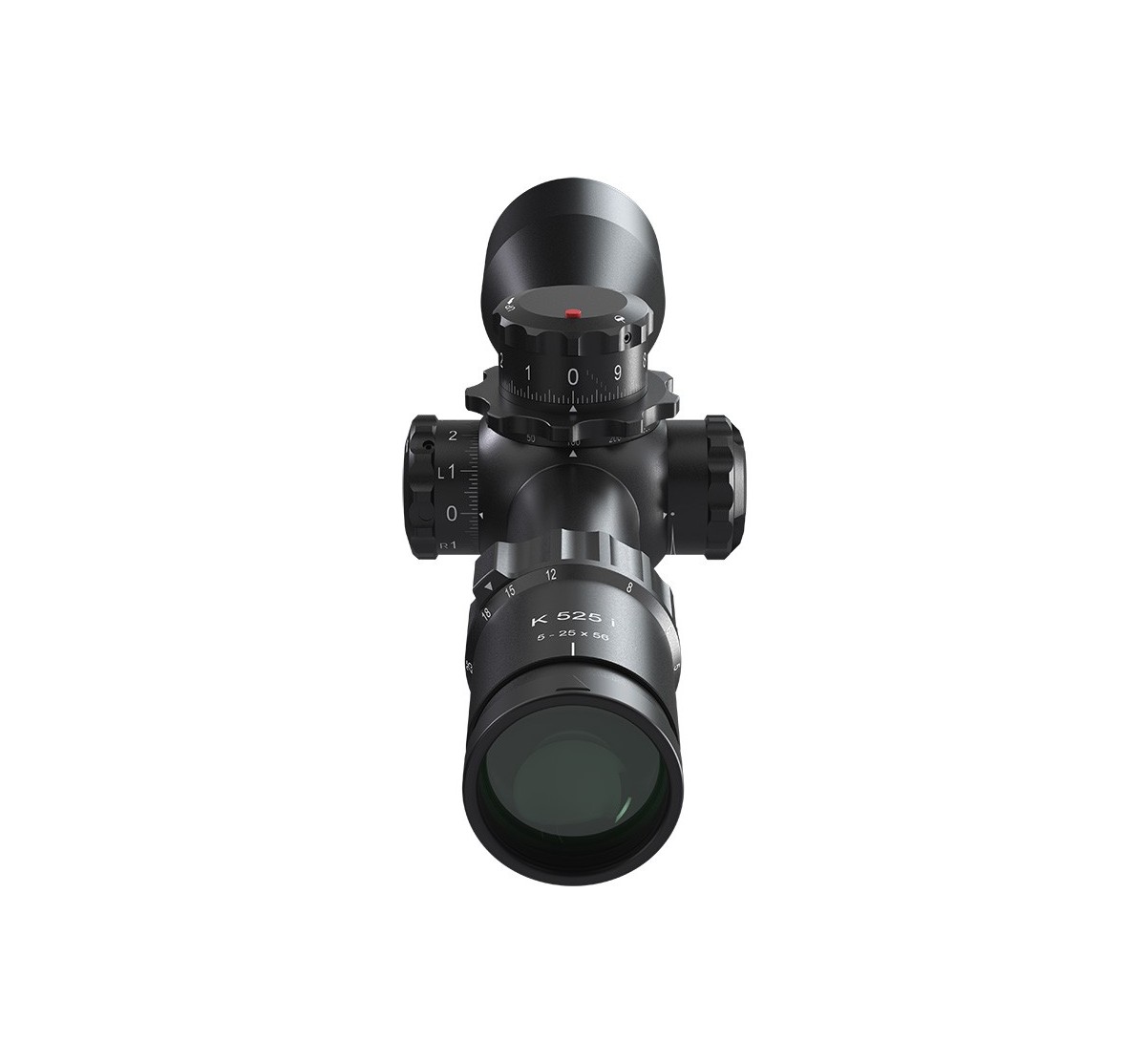

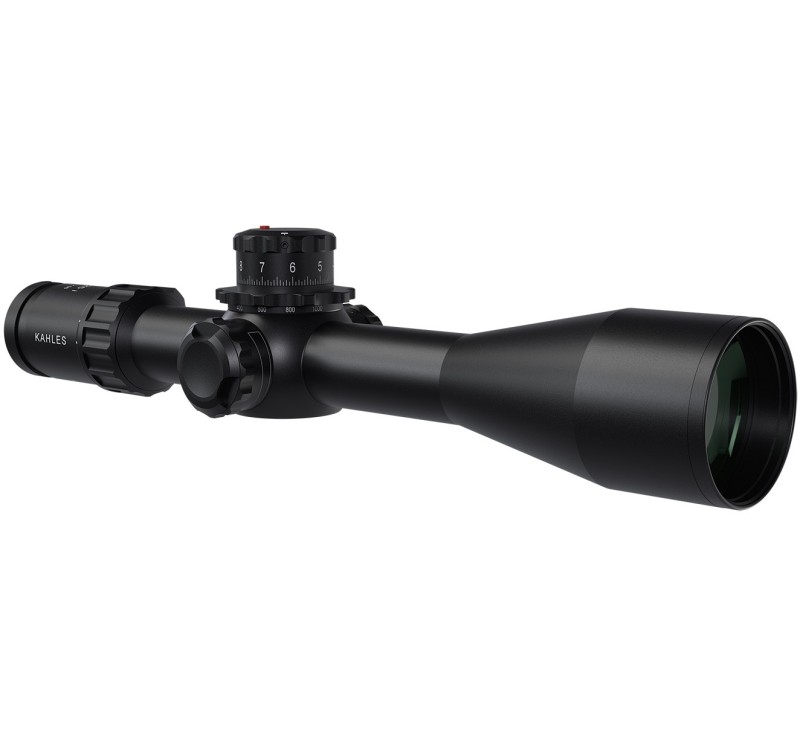

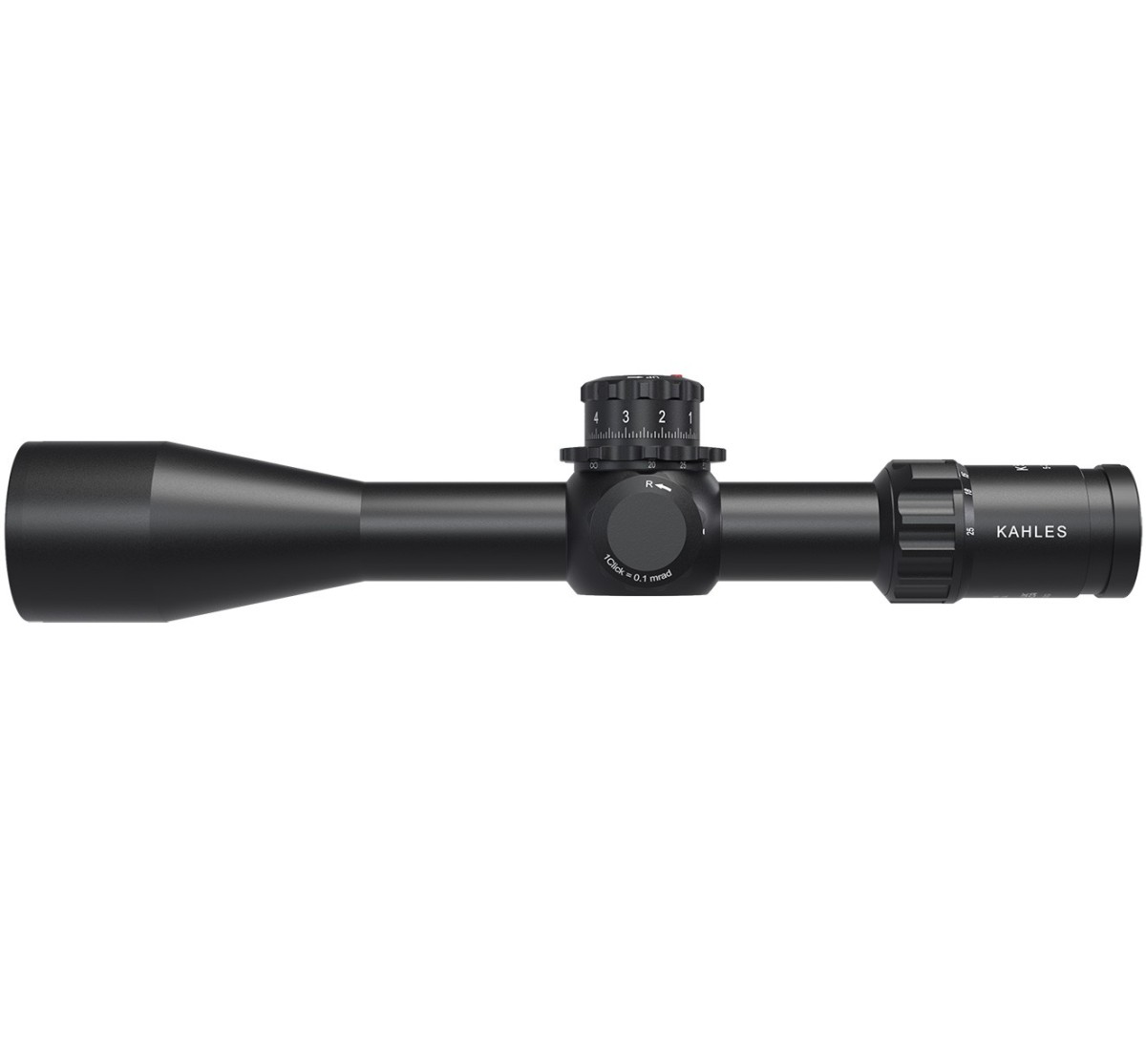

Kahles K525i 5-25X56 Scope SKMR Reticle ccw L

The Kahles K525i is a premium precision optic designed for competitive shooting and long-range applications. It delivers outstanding optical performance, precise mechanics, and rugged reliability. With a 5-25x magnification range and a 56 mm objective lens, it offers an excellent balance between field of view and target detail. The image remains sharp, bright, and high in contrast across the entire magnification range. The optical system ensures accurate color reproduction and clear target definition. An optimized eyebox allows for easy and forgiving eye positioning, improving comfort and speed during use. The turrets provide precise, tactile, and repeatable adjustments, ensuring reliable ballistic corrections. The multi-turn system with visible indicator allows quick identification of turret position. Top Parallax adjustment enables precise focusing at various distances without needing to move while aiming, while the illuminated first focal plane reticle maintains correct scaling across all magnifications.

REFINED introduces:

• 10 MIL Windage – increased usability in dynamic environments

• Enhanced Parallax Wheel Geometry – reliable handling in all conditions

• +7% FOV* – improved situational awareness with optimized peripheral perception (*Based on the comparison to K525i (2025))

• Updated Reticle Designs – latest SKMR4-design

FEATURES

First focal plane

Where riflescopes have reticles in the first focal plane, the size of the reticle remains proportional to the target and adjusts with the magnification. This allows for precise aiming points and reliable distance measurement, regardless of the chosen magnification.

Illuminated reticle

Illuminated, fine-structured reticle for precise aiming and optimal visibility.

Main tube diameter 34 mm

The main tube has a diameter of 34 mm.

10MIL per revolution turrets

The elevation and windage adjustments with 100 clicks per full revolution allow for fast and precise adjustments under demanding conditions. Enlarged click intervals and clear EASYREAD labelling ensure excellent tactile feedback and secure operation.

Adjustment direction CCW

The adjustment direction of the elevation and windage turrets is designed to be counter-clockwise (ccw).

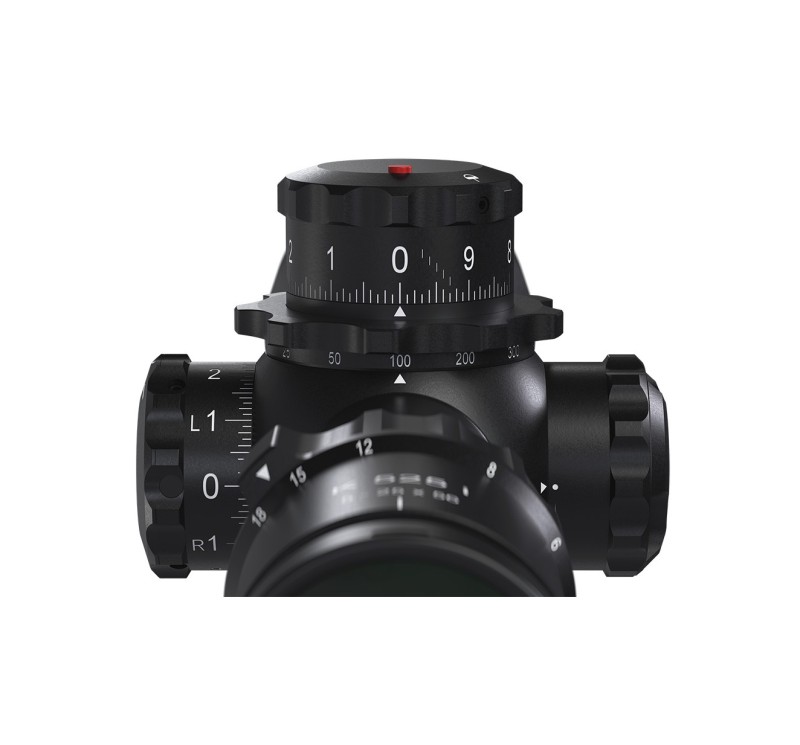

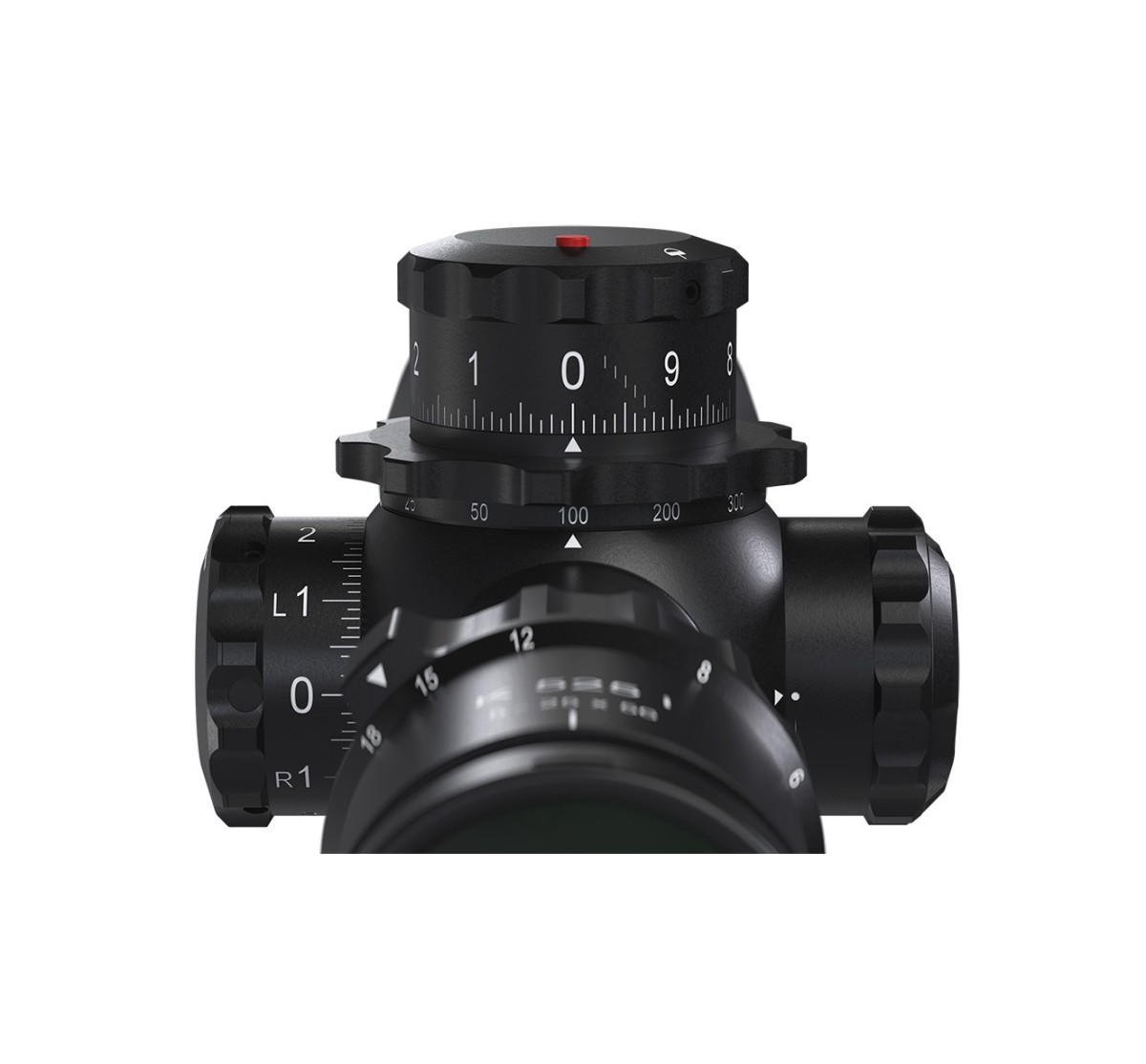

Top mounted parallax

The top mounted parallax adjustment sits below the elevation turret. The patented central arrangement allows for simple and intuitive operation of all controls with the preferred hand, without needing to reach over.

Windage left or right

Models featuring parallax adjustment integrated into the elevation turret offer ergonomic and intuitive access to all controls. This innovative design allows the windage adjustment to be positioned on either side of the turret housing – left for right-handed shooters and right for left-handed shooters. Thus adjustments can be made without ever leaving the shooting position.

EASYREAD

Adjustment turrets with EASYREAD labelling provide excellent readability and clear identification under challenging conditions.

REVOLUTION INDICATOR

The REVOLUTION INDICATOR (mechanical) uses the Indicator Pin as a reference: depending on its position, it continuously displays the current revolution level, ensuring a reliable and instantly recognisable position indication.

INDEXSTOP

The INDEXSTOP (mechanical stop) is positioned 2–3 clicks below the zero indicator and is set after sighting in, allowing a quick and repeatable return to zero.

TWISTGUARD

The patented anti-rotation mechanism of the windage turret prevents unintentional adjustments by means of a freely rotating protective cap – without additional locking mechanisms, it is immediately ready for use.

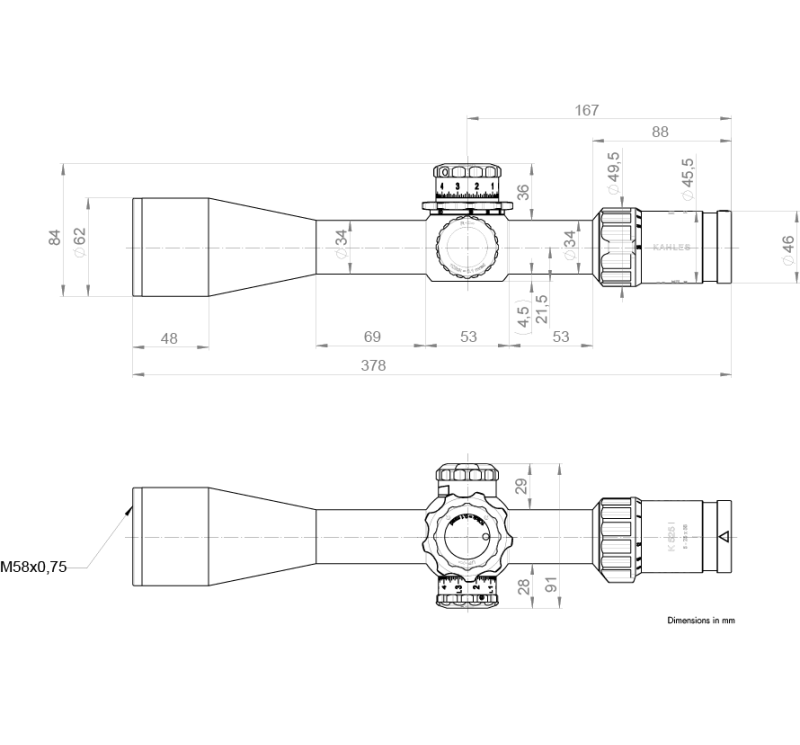

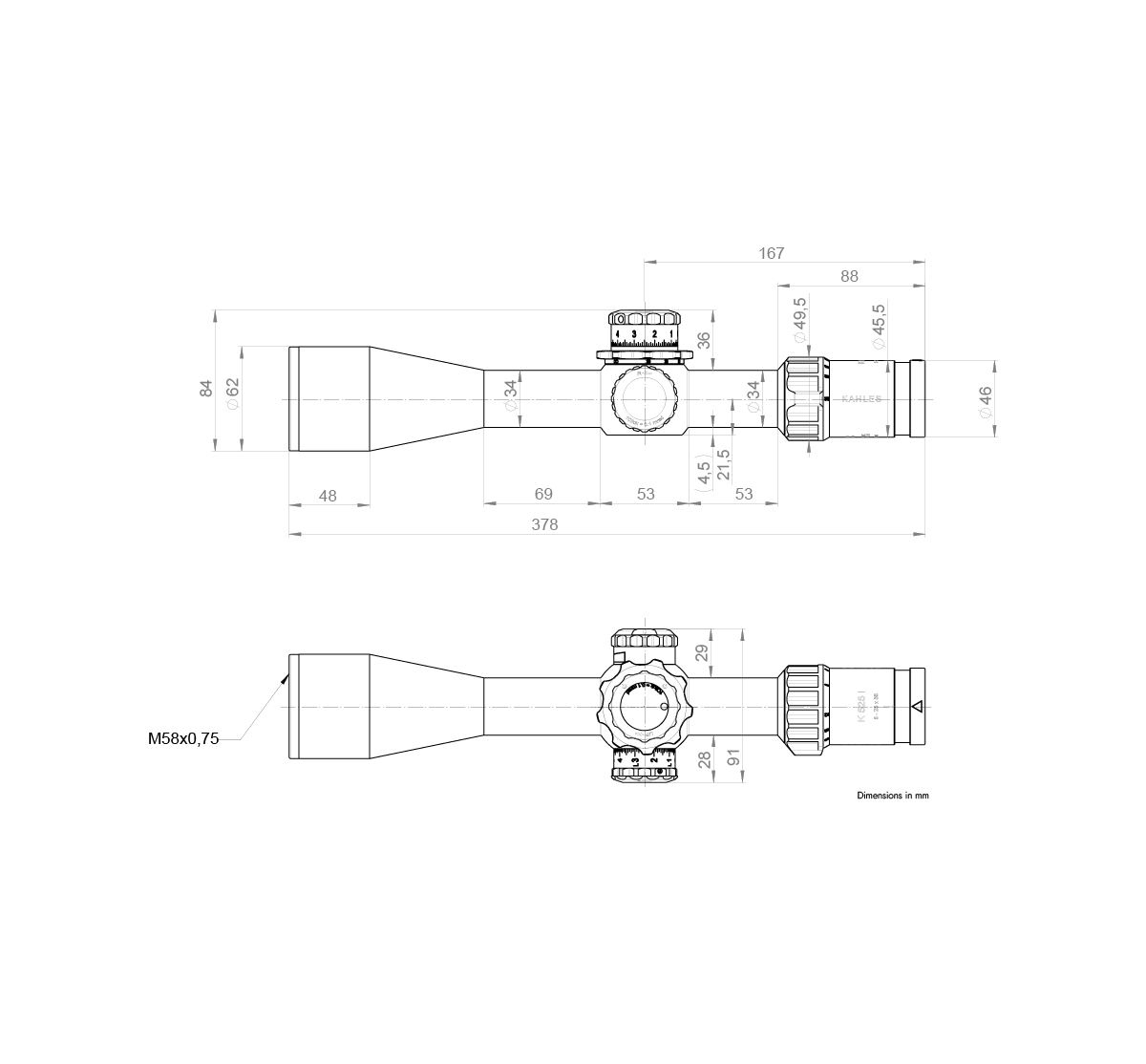

TECHNICAL DATA
