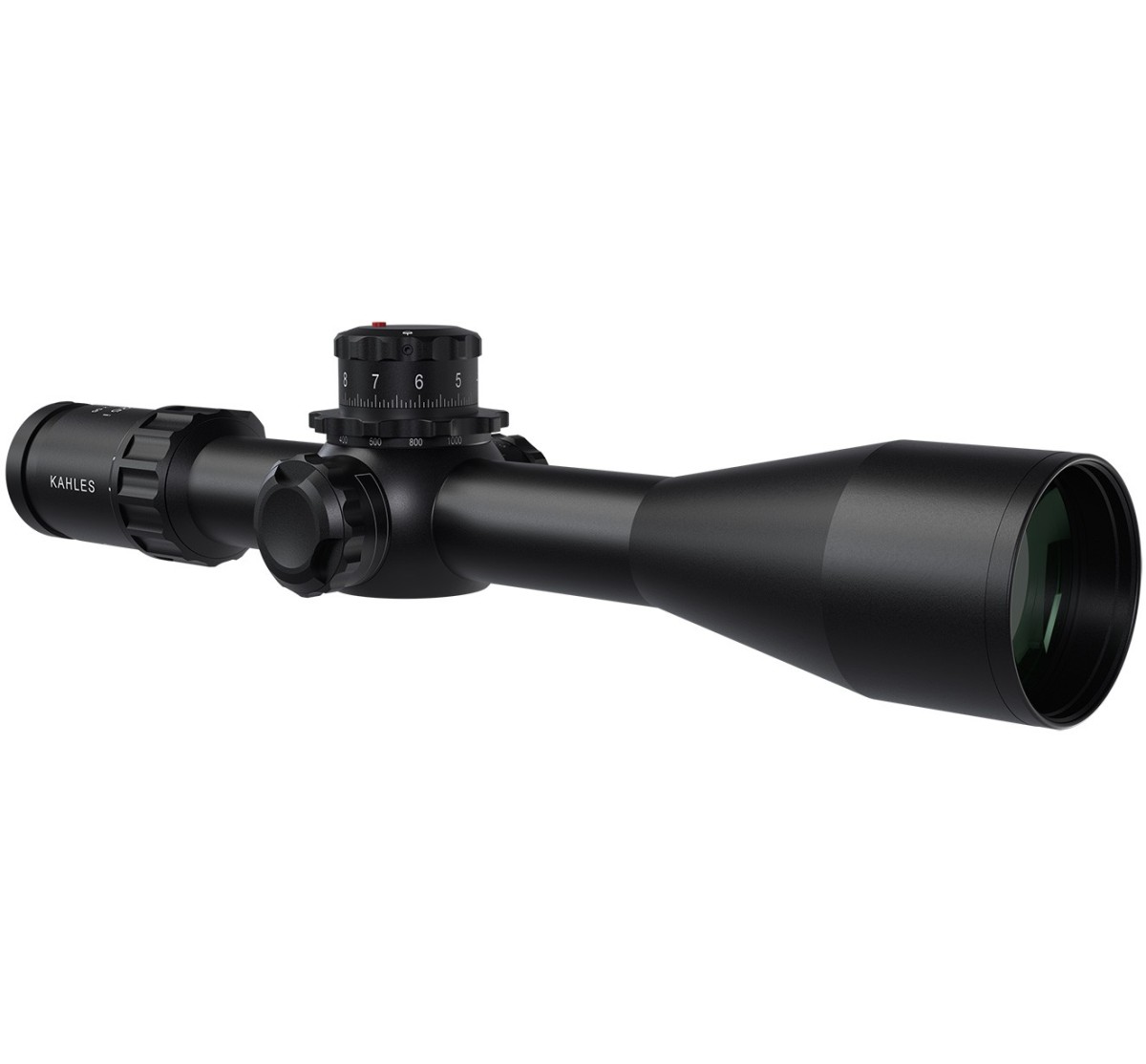

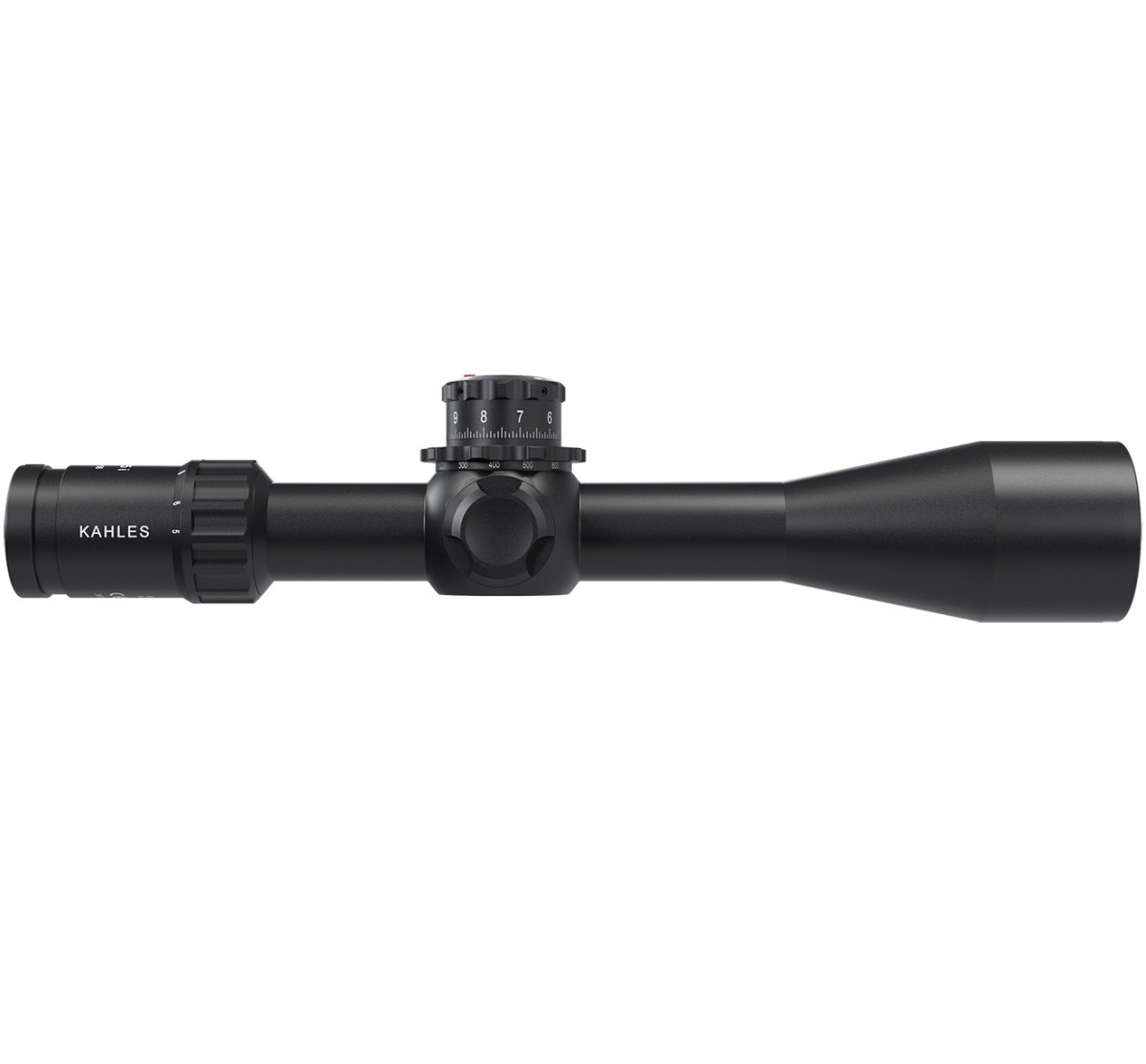

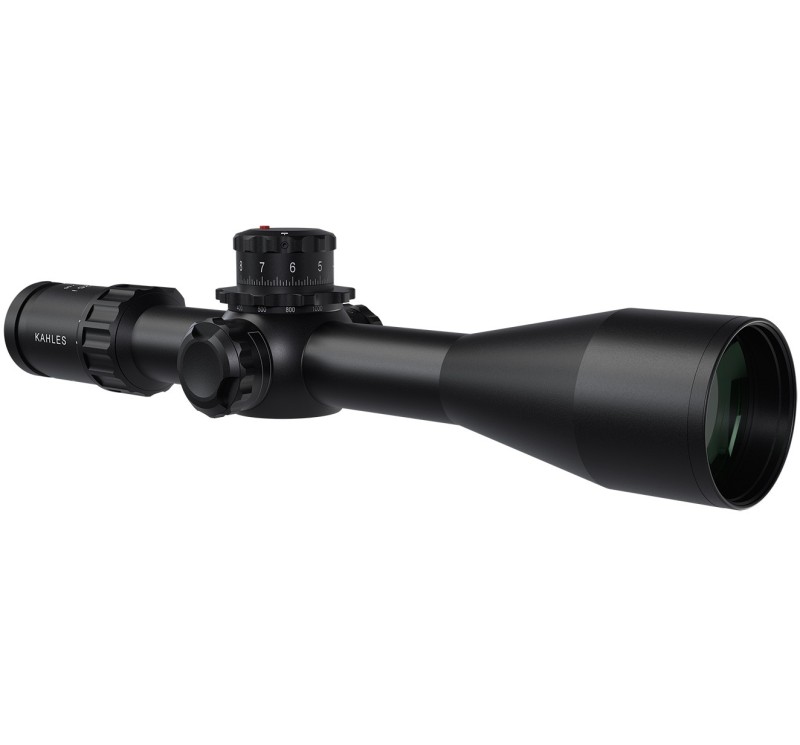

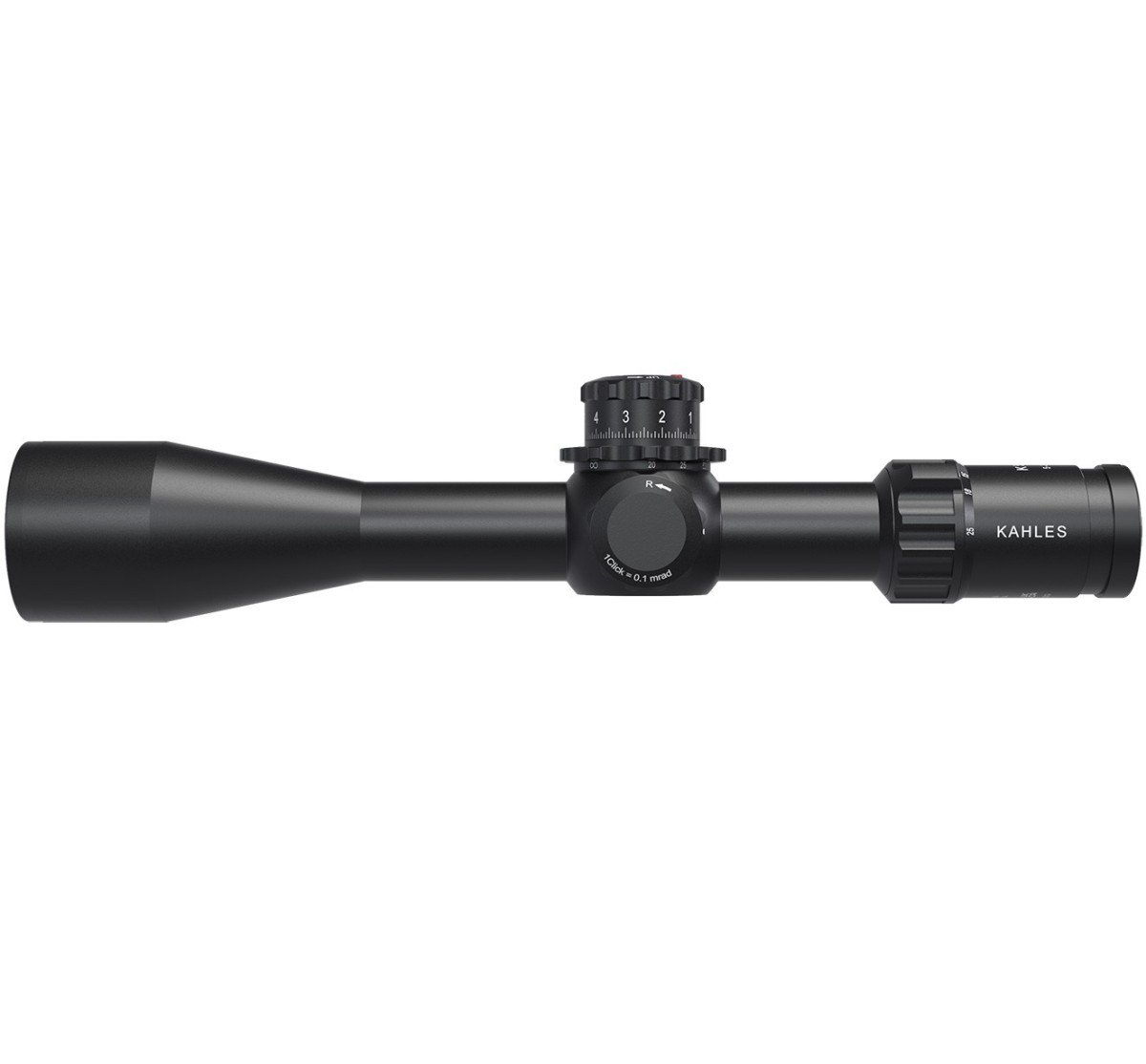

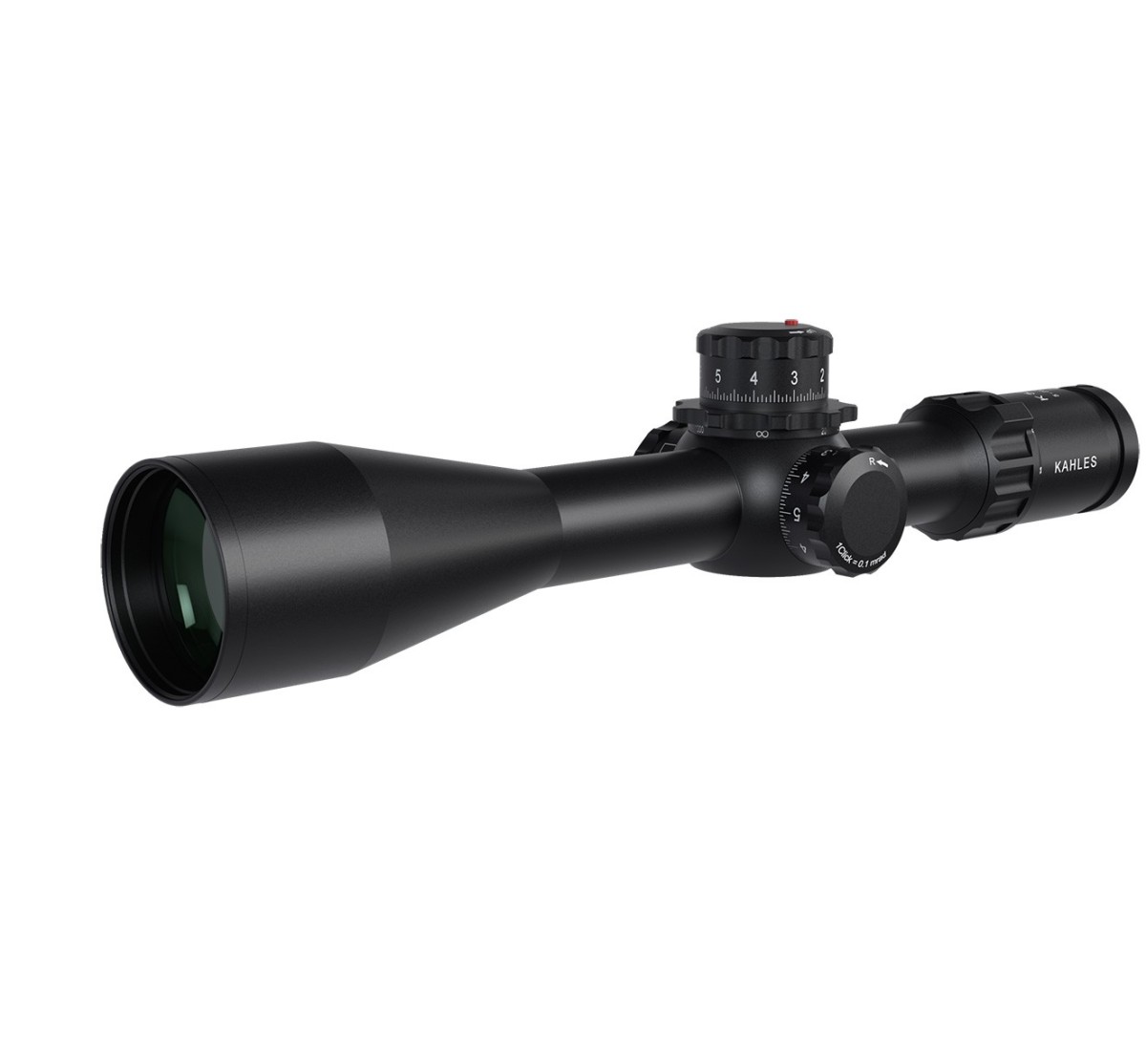

Kahles Scope K864 CCW 8-64X56 MOAK+ ccw R w-right

The Kahles K864 scope is a specialized precision optic designed for benchrest and F-Class applications. It is engineered to deliver maximum detail recognition and visual control at very high magnification levels. With a magnification range of 8-64x, it allows highly precise target observation. The image remains sharp, stable, and high in contrast even at maximum magnification. The optical system provides natural color reproduction and consistent light transmission through the 56 mm objective lens. The eyebox is designed for controlled and stable eye positioning. The reticle is located in the second focal plane (SFP), maintaining a constant size regardless of magnification—a must for Benchrest and F-Class competitions. The turrets provide precise, consistent adjustments with excellent repeatability. The multi-turn system ensures clear reference during extended adjustments. The top Parallax adjustment enables accurate focusing across different distances without needing to move to adjust it.

Features

Second focal plane

Where riflescopes have reticles in the second focal plane, the size of the reticle remains constant, regardless of magnification. As a result, the coverage area changes with the chosen magnification.

Non-illuminated reticle

Non-illuminated, fine-structured reticle for precise aiming.

Main tube diameter 36 mm

The main tube has a diameter of 36 mm.

MOA 1/8

Click resolution MOA: 1/8 MOA click corresponds to a point of impact shift of 0.36 cm at a distance of 100 m.

Adjustment direction CCW

The adjustment direction of the elevation and windage turrets is designed to be counter-clockwise (ccw).

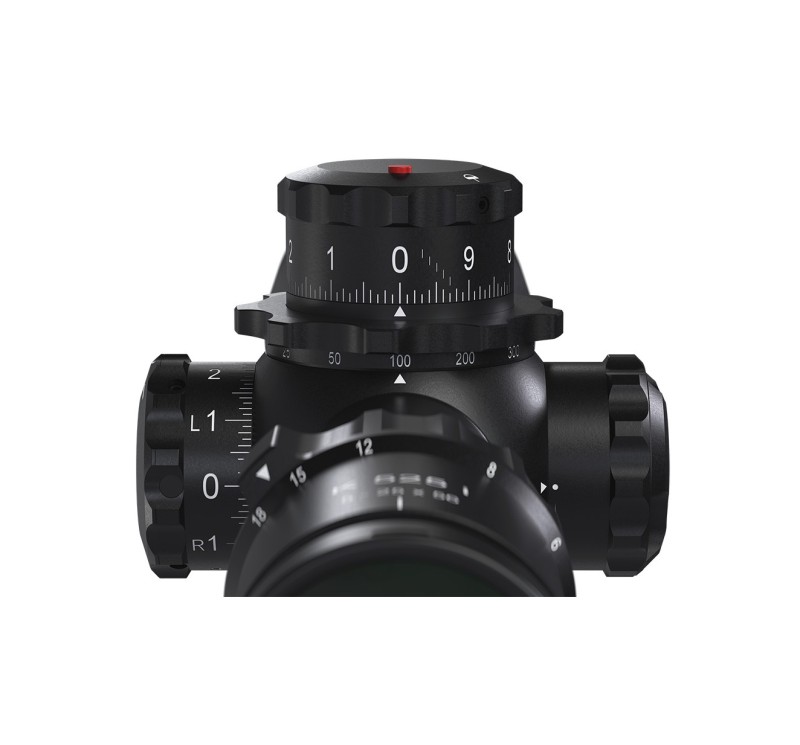

Top mounted parallax

The top mounted parallax adjustment sits below the elevation turret. The patented central arrangement allows for simple and intuitive operation of all controls with the preferred hand, without needing to reach over.

Windage right

The windage adjustment is located on the right side.

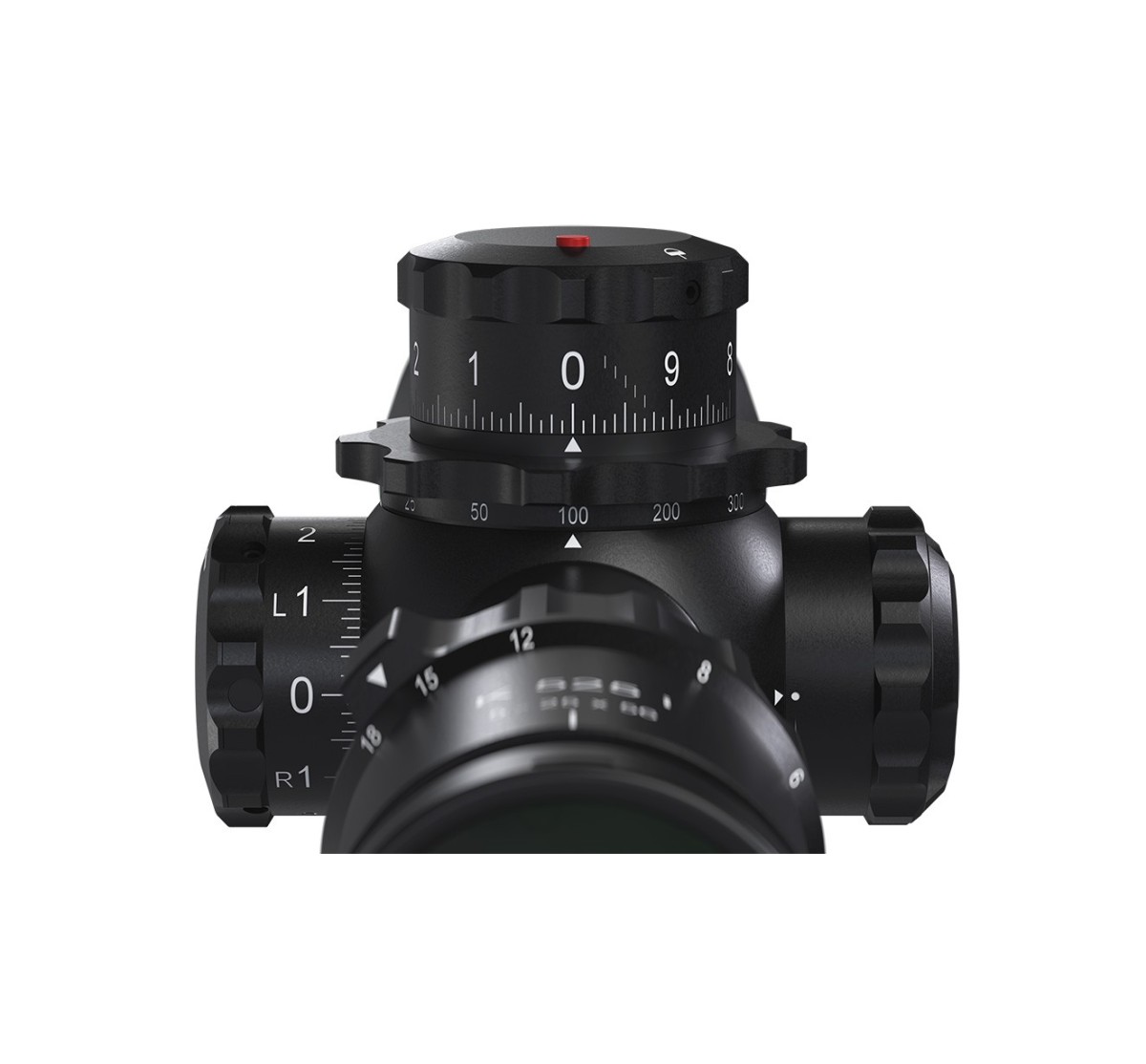

EASYREAD

Adjustment turrets with EASYREAD labelling provide excellent readability and clear identification under challenging conditions.

REVOLUTION INDICATOR

The REVOLUTION INDICATOR (mechanical) uses the Indicator Pin as a reference: depending on its position, it continuously displays the current revolution level, ensuring a reliable and instantly recognisable position indication.

INDEXSTOP

The INDEXSTOP (mechanical stop) is positioned 2–3 clicks below the zero indicator and is set after sighting in, allowing a quick and repeatable return to zero.

VISIONFLEX

VISIONFLEX creates an exceptionally wide field of view and opens a remarkably generous eyebox, delivering a natural, fatigue-free viewing experience that remains consistent across all magnifications.
