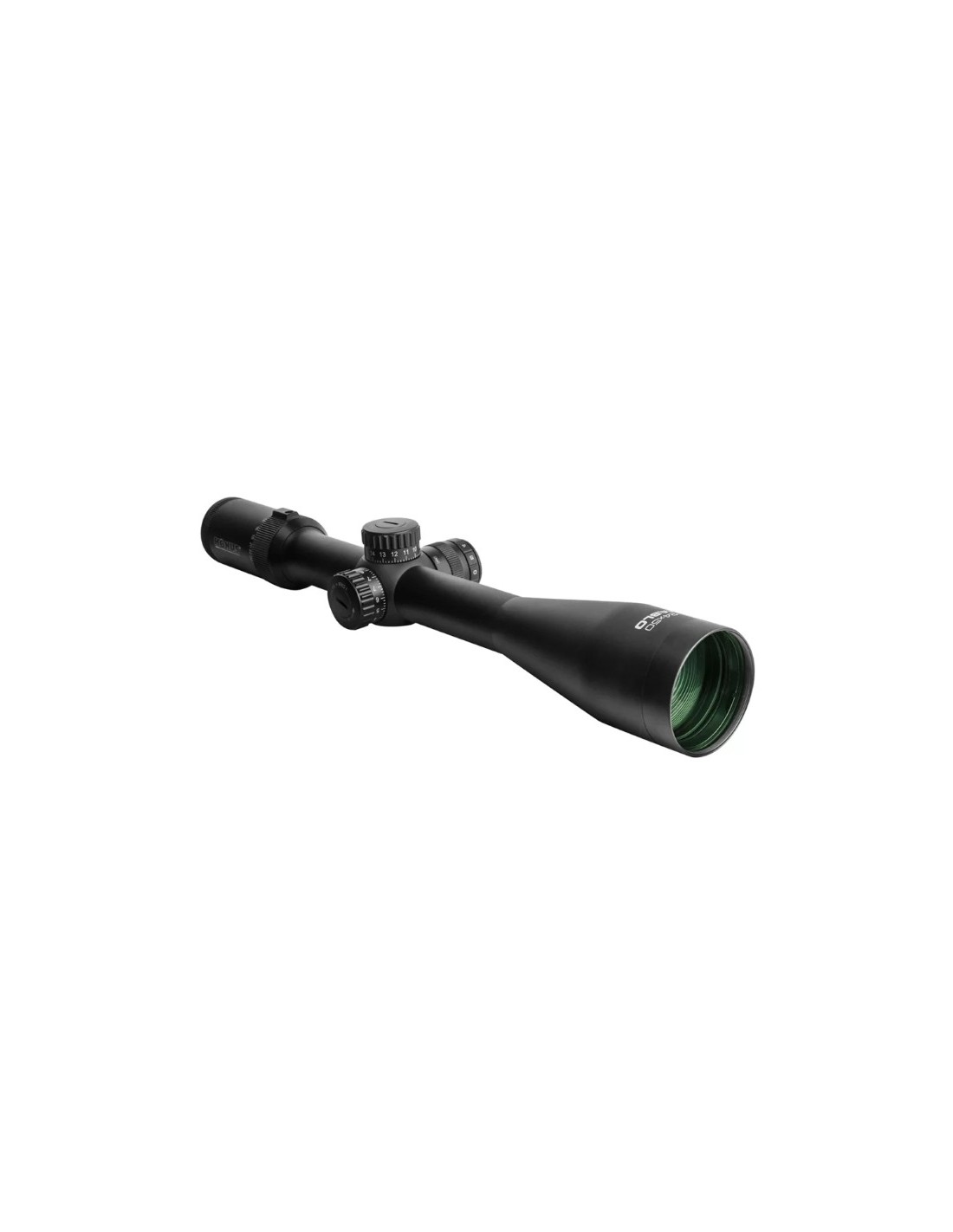

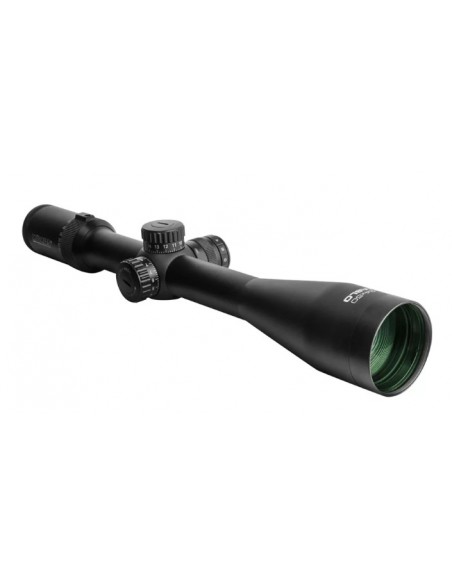

KONUS DIABLO 6-24X50 1/2 MIL DOT DOUBLE LIGHTING

OPTICS THAT MAXIMIZE PERFORMANCE AND VALUE These optics are designed for exceptional versatility and are suitable for multiple shooting disciplines. They are also particularly suited for selective hunting and target shooting. Thanks to their precise mechanics and optical brilliance, they are sold at an unprecedented price point, making them an ideal solution for all shooters.

Specifications

• EXTREMELY WIDE FIELD OF VIEW
• NEW OPTICAL SYSTEM WITH EXCELLENT PERFORMANCE AND INCREDIBLE IMAGE QUALITY
• THREE-PIECE OBJECTIVE LENS AND EYEPIECE FOR GREATER RESOLUTION AND LESS IMAGE DISTORTION
• FULLY MULTI-COATING AND ULTRA-WHITE OPTICS FOR INCREASED LIGHT TRANSMISSION AND GREATER CLARITY
• WATER-REPELLENT LENSES SUITABLE FOR RAINY DAYS
• NEW PRECISION TACTICAL TURRETS WITH QUICK-SET ZEROING

Technical Data

• Magnification for objective lens diameter: 6-24x50

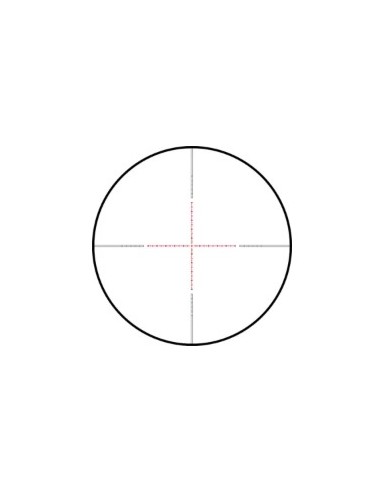

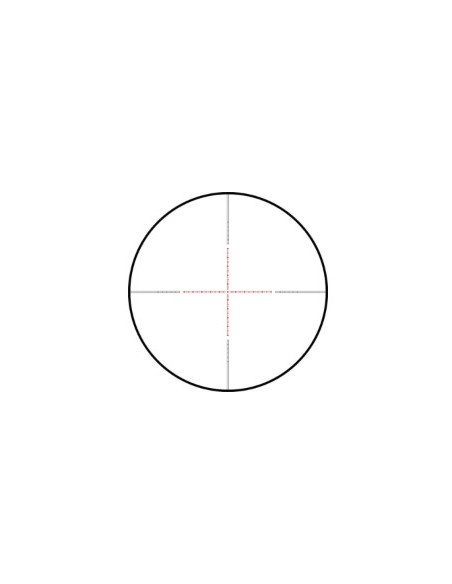

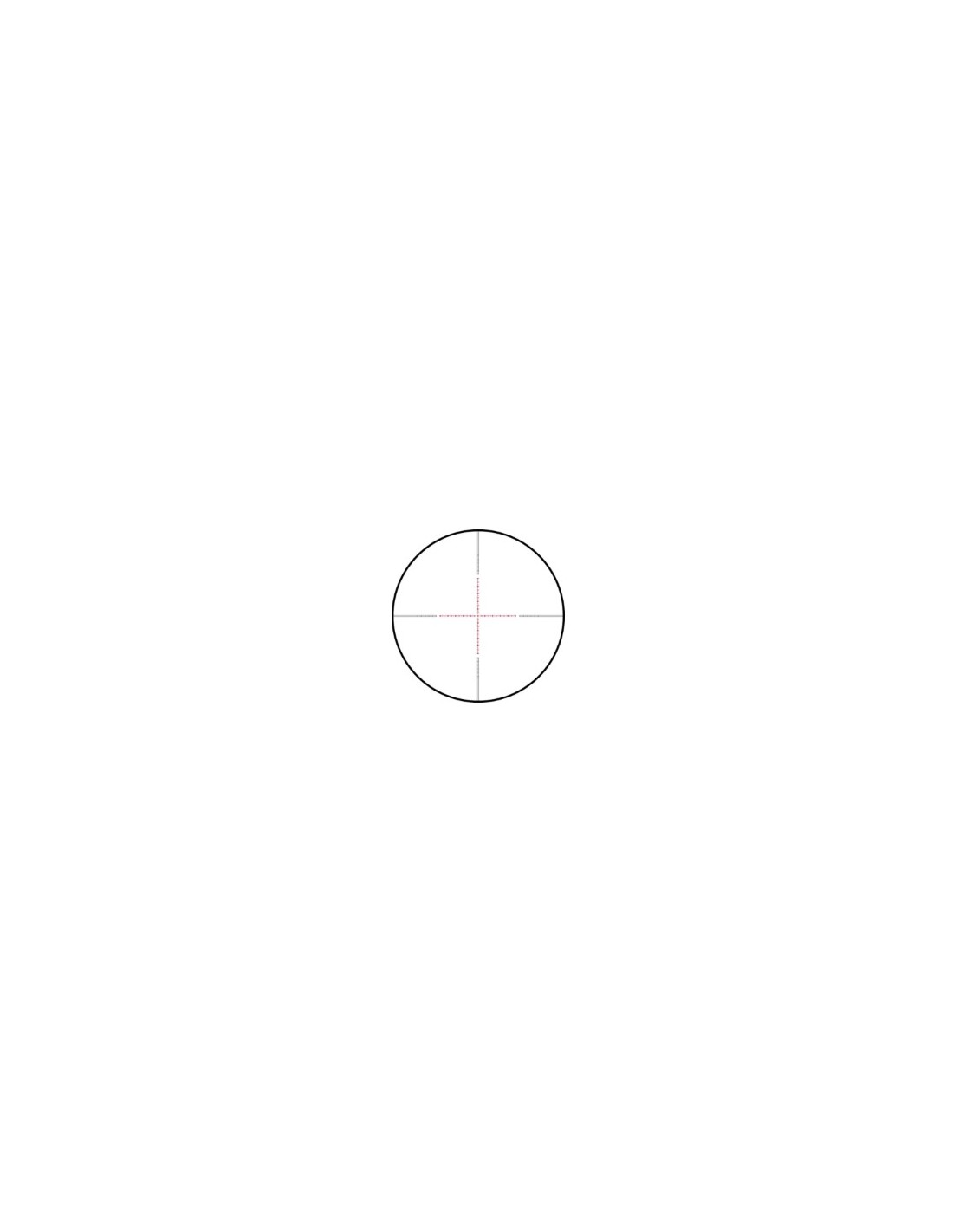

• Reticle: Modified 1/2 Mil dot dual illumination
• Field of view at 100 m: 6.46 m at 6x 1.74m at 24x
• Weight: 726g
• Length: 386.08mm
• Eye relief: 81.28mm
• Exit pupil: 7.3mm at 6x • 2.2mm at 24x
• Trigger value at 100m: 1/10 MIL
• Adjustment range at 100m: 1.35m – 52"
• Mounting distance: 173mm
