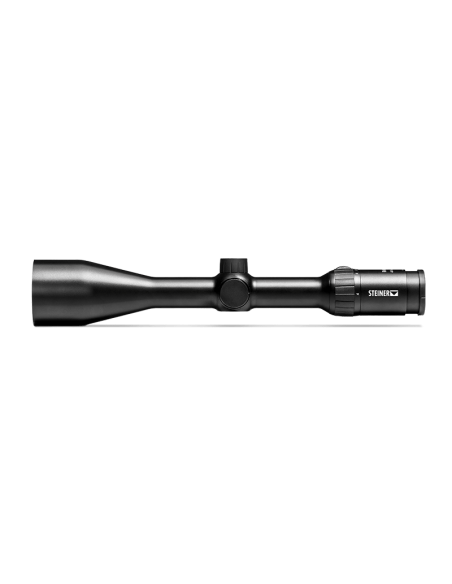

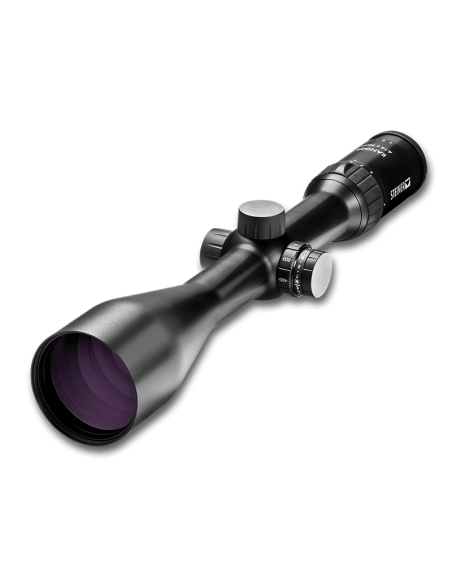

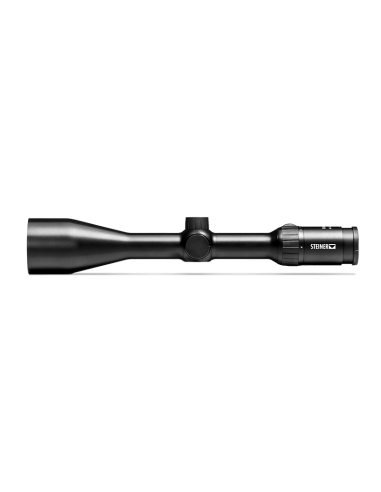

The new Ranger 4 impresses with an extended field of view, increased light transmission and optimised anodisation. In addition, a number of models have been added to the series: in addition to the high-magnification riflescopes, models with integrated mounting rail are now also part of the series. This outstanding series not only combines perfect optical quality with reliable mechanics and the usual Steiner robustness, but also allows easy mounting in any situation.
The new Ranger 4 rifle scope series thus manages to fully satisfy the demanding and varied circumstances of hunters and thus becomes an indispensable companion for every hunter.
- High-Contrast-Optic - It is bright and offers bright, brilliant and high-contrast images with high edge sharpness, thus ensuring excellent detail recognition.
- XL-field of view und sicherer 9 cm pupil distance for the highest possible visibility and safety in every situation.
- Reliable mechanics - Impresses with a repeatable click and precise absehen adjustment as well as by a quick dioptric adjustment and a rubberised adherent magnifier variator
- Extreme robustness - high impact resistance thanks to durable materials and precise, reliable construction. Water pressure tightness up to 2 m through special sealing techniques - even without cover caps on the turret . No dust, dirt or moisture can penetrate the interior. Fogging or condensation on the inside is excluded with STEINER nitrogen pressure filling. Even temperature fluctuations from -25 to +65 °C do not affect functionality and all control elements can be operated without any problems.
- Elegant, lightweight and well-made short design - One-piece, stable aluminium tubes with a velvety, matt, scratch-resistant hard anodised finish convince with smooth, rounded transitions and elegant spokes with sufficient space for mounting.
Optical characteristics
Min./max. magnification
4x / 16x
Lens tube diameter
56 mm
Eyepiece diameter
40 mm
Pupil output
9,2 - 3,5 mm
Eye distance
90 mm
Dioptric compensation
From -3 to +2
Without parallax
50 m to infinity
Function and equipment
High-performance optics
High contrast
Nitrogen filling
Yes

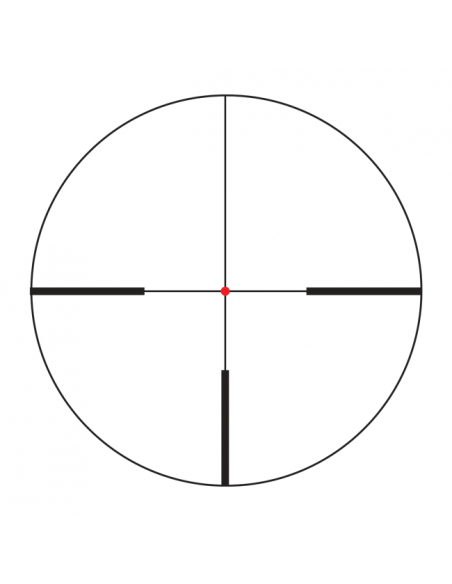

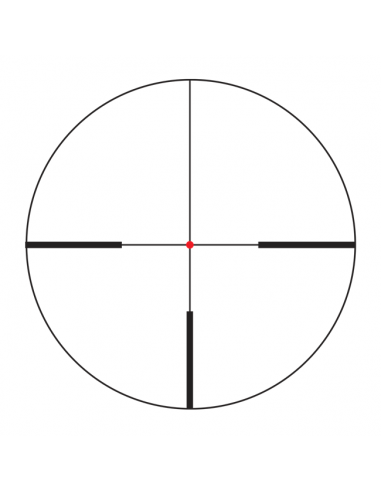

Reticle
4A-I
Lattice position
2° piano focale
Click reticle adjustment at 100 m
1 cm
Max. Stroke at 100 m height / side
72 cm / 72 cm
Reticle illumination
11 phases (5x day, 6x night)
Functional area
-25°C bis +63°C
Pressure-proof
1 m
General features and accessories
Depth
375 mm
Weight
680 g
Lens tube body diameter
30 mm
Lens protection flaps
Protective objective and ocular covers
Warranty
10 years 2 years on electronic parts
