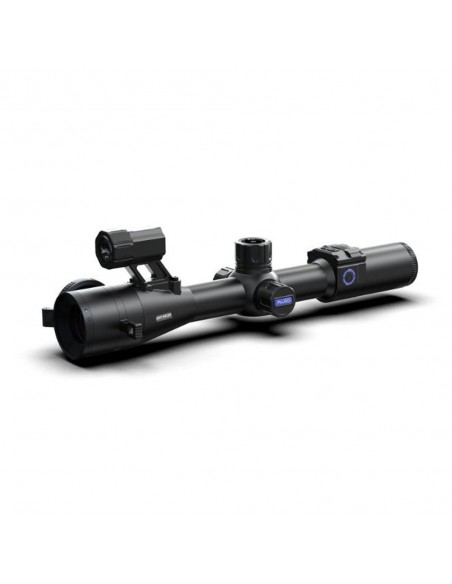

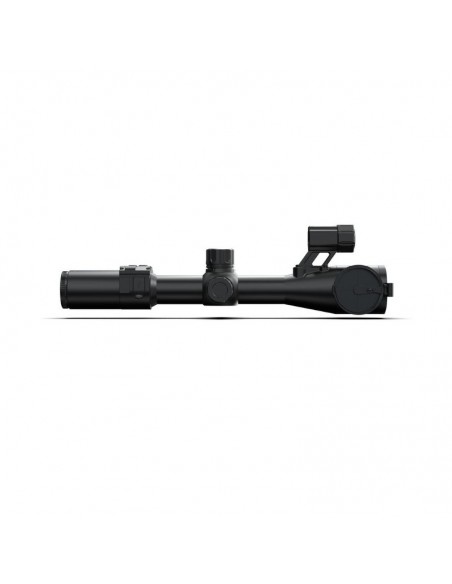

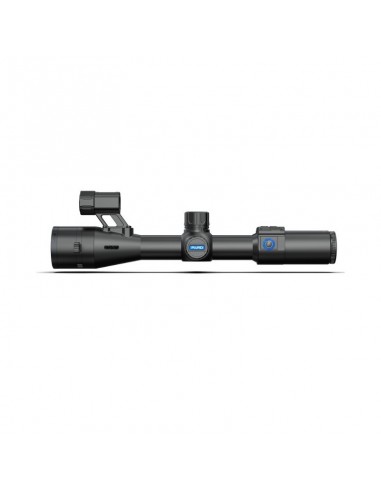

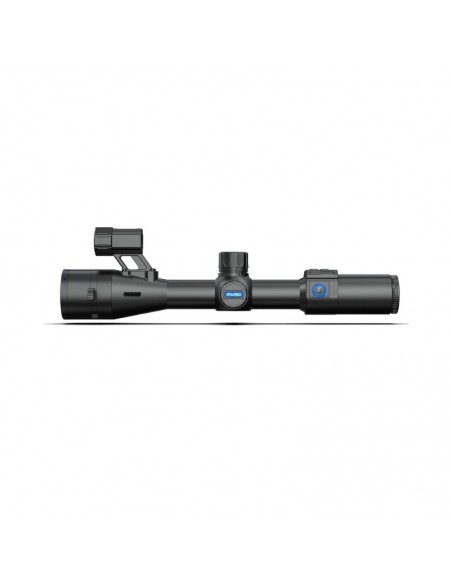

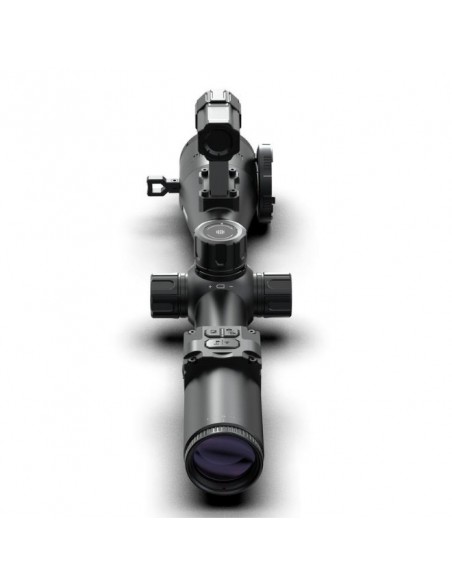

The Pard DS35-70R Night Vision Scope may look like a traditional optical scope, but it offers so much more! Whether it's day or night, this scope performs at its best in any lighting conditions. The DS series features a circular LTPS digital display with a resolution of 800×800 pixels, providing high-definition images with vibrant contrast. The 0.001 lux CMOS sensor delivers highly detailed and high-resolution images even in low-light conditions. The DS35 model is equipped with a 2560×1440 (2K) sensor, ensuring superior visual clarity.

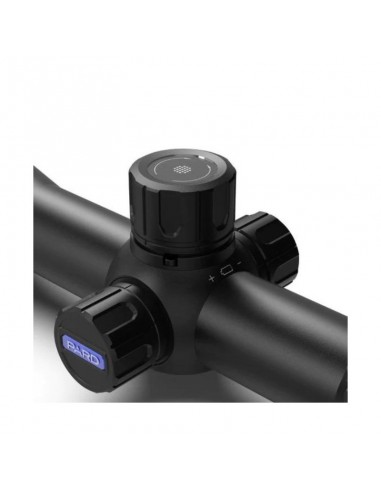

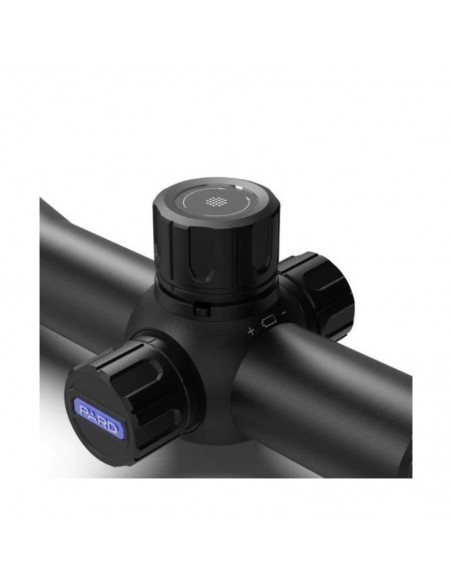

A standout feature of this scope is the conveniently placed control knob, allowing the user to easily navigate the menu options and operate the ballistic calculator in hunting mode. With this single knob, you can adjust and operate the DS35 effortlessly and with precision.
PARD DS35-70R8 850 IR Technical Specifications:
- Model: DS35-70(RF)/940
- Classification: Night Vision (Scope)
Sensor:
- Type: CMOS
- Resolution (px): 2560x1440
- Pixel size (um): 2.9um
- Sensitivity (lux): 0.001 lux
- Frame rate (fps): 30 fps
- Image engine: PARD VLEA
Optics:
- Objective lens: 70mm F2.4
- Optical magnification (x): 5.6x
- Digital zoom (x): 2x
- Continuous digital zoom: 5.6-11.2x
- PIP digital zoom: 2x
- Field of view (HxV): H: 3.4º | V: 3.4º | D: 4.8º
- Focus range: 5m-∞
- Eye relief (mm): 100mm
- Exit pupil (mm): 10mm
- Diopter adjustment (°): TBD
IR Illuminator:
- IR Type: VCSEL
- IR Power: 5W
- IR illumination levels: 3
- IR distance (m): 350m
- IR wavelength (nm): 940nm
Display:
- Type: IPS LCD
- Resolution (px): 800x800
- Reticle Style: 6 options
- Reticle Colors: white/yellow/green
- Color modes: Color/Mono BW/Mono Green/Mono Yellow
Photo/Video:
- Photo resolution (px): 2560x1440
- Photo format: JPG
- Video resolution (px): 1920x1080
- Video format: MP4
- Storage: TF card (up to 128GB)
Main Functions:
- PIP (Picture-in-Picture): Yes
- LRF detection range (m): 1000m
- Ballistics calculator: Yes
- Range unit selection: Meter/Yard
- Gyroscope: Yes
- Self-activated recording: Yes
- Auto recording: Yes
- Loop recording: Yes
- Timestamp: Yes
- Audio recording: Yes
- Beep sound: Yes
- Exposure compensation: Yes
Interfaces:
- USB Type-C: Yes
- HDMI Output: Yes
Connections:
- Wi-Fi: Yes
- Supported Apps: ppshow, roadcam
External Power Supply:
- Battery Type: Lithium Ion 18650
- Output Voltage (V): 3.7V
- Operating Time (h, max): 8 hours
- External Power Supply (V): USB Type-C
Environmental Characteristics:
- Protection Rating: IP67
- Operating Temp (°C): -20 – 50
- Recoil Resistance (J): 1000G
Materials:
- Housing: Aluminum Alloy
- Objective Lens: Glass
Dimensions:
- Product Dimensions (L x W x H, mm): L350mm x W88mm x H95mm
- Net Weight (with/without battery, g): 680g
- Inner Box Dimensions (L x W x H, mm): 396mm x 125mm x 110mm
