DOG TRACE X30B KIT HANDHELD SCREEN AND GPS COLLAR

The DOG GPS X30B is the new generation of the DOG GPS X20 +. In addition to the common functions of the X20 + GPS, the new X30 version offers more options. You can pair the standard set of the GPS handheld and the collar with an Android or iOS (Apple) smartphone. The use of the “Dogtrace GPS” App offers greater comfort and allows the use of additional functions.

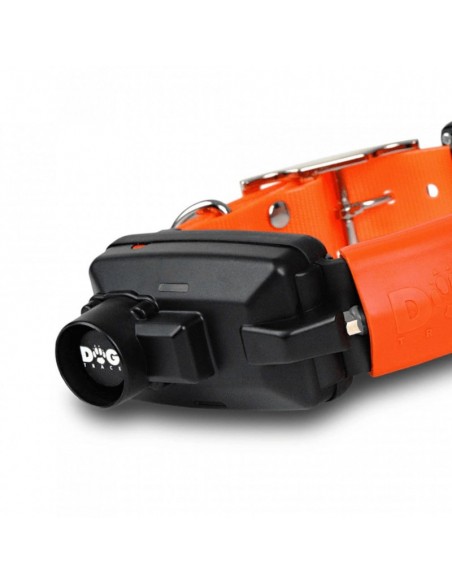

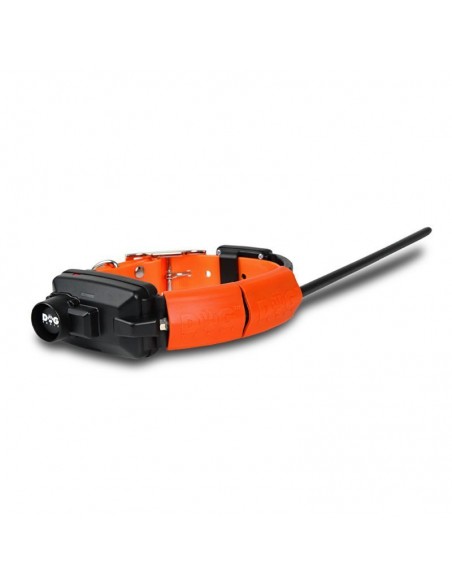

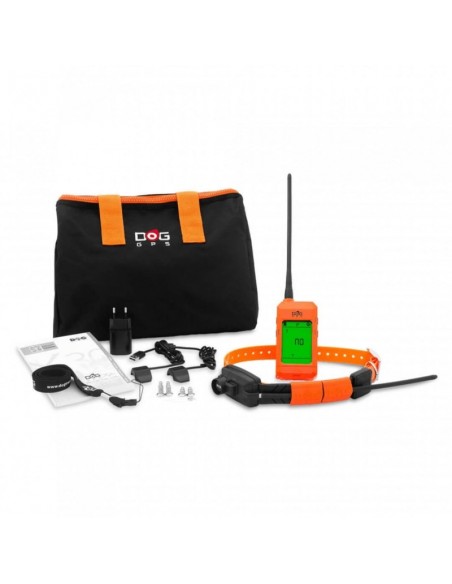

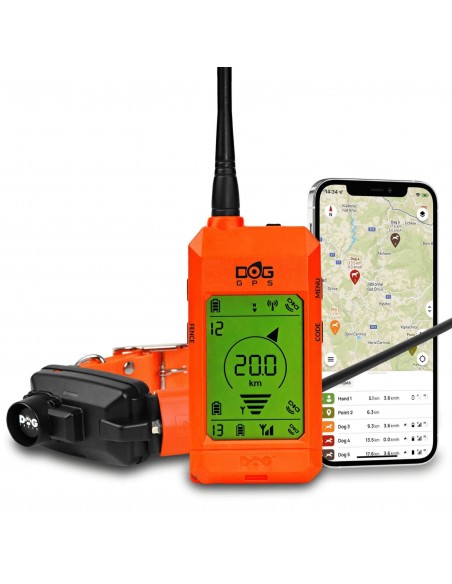

DOG GPS X30 / X30T is a device for locating dogs up to 20 km. It consists of a neon orange transmitter located on the collar and on the receiver (portable device) on which the handler follows the distance and direction towards the position of the dogs. The transmitter obtains its position from the GPS satellites and sends the position information to the receiver via the radio frequency (RF) signal. The transmitter can optionally mount a training module (module X30T), which allows to send a stimulus impulse from the receiver up to a maximum of 20 km.

The X30 / X30T collar can be played remotely (the X30 / X30T with a sound that is heard up to 10/15 meters while the X30B / X30TB with a sound that is heard up to 200/300 meters away).

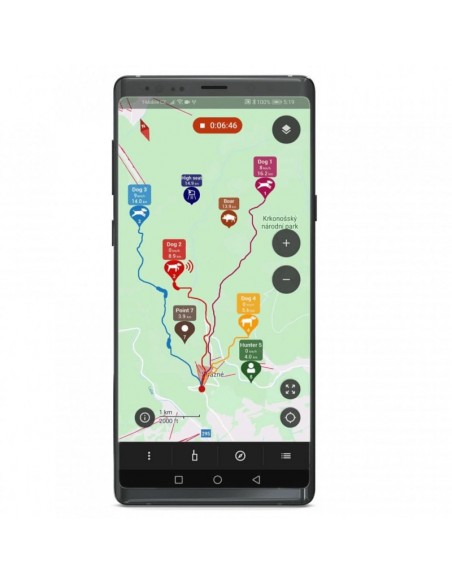

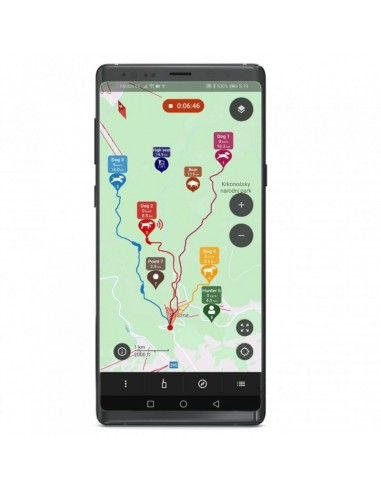

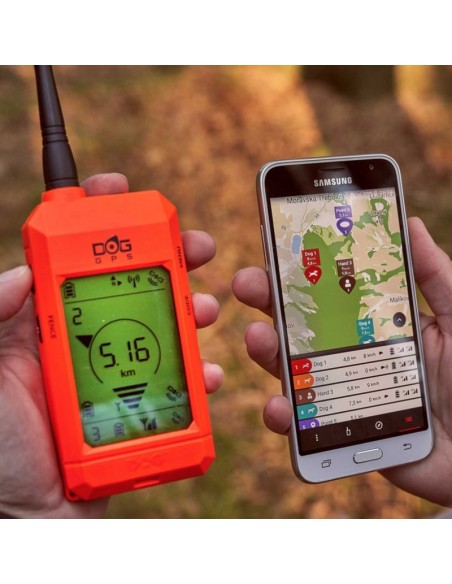

The receiver can be connected wirelessly to an Android or iOS (Apple) mobile phone . The application allows you to view all paired GPS devices and their detailed information on the map. Maps are available online and offline.

The device allows you to locate up to 13 devices over a distance of more than 20 km depending on the terrain.

Search device with DOG GPS X30B sound locator characteristics:

• The range between transmitter and receiver is up to 20km (depending on terrain, vegetation and other factors)
• Track up to 13 dogs, hunters or waypoints
• Latest technology with high GPS sensitivity in the receiver and transmitter
• Easy to read receiver display – in direct sunlight and in the dark
• Fully waterproof receiver and transmitter
• Long battery life (more than 40 hours) – receiver and transmitter with rechargeable batteries
• 2 acoustic signal modes: low / high
• Compass function
• FENCE function – virtual acoustic boundary for the dog
• BEEPER function – evaluates whether the dog is standing still, moving or barking when stationary
• Waypoint function : allows you to store up to 13 coordinates of the receiver and track towards these points (for example the car, a point in the woods …)
• CAR mode function – mode for using the receiver (handheld) inside a vehicle or indoors, without the possibility of intercepting the GPS signal
• Quick start of the receiver
• Smallest and lightest collar (transmitter) of competing devices
• Very easy to use
• The receiver is compatible with X20 / X20 + transmitters (collars) (some functions are limited)
• The dedicated Dogtrace App is compatible with both Android and iOS operating systems.

Dogtrace GPS App characteristics:

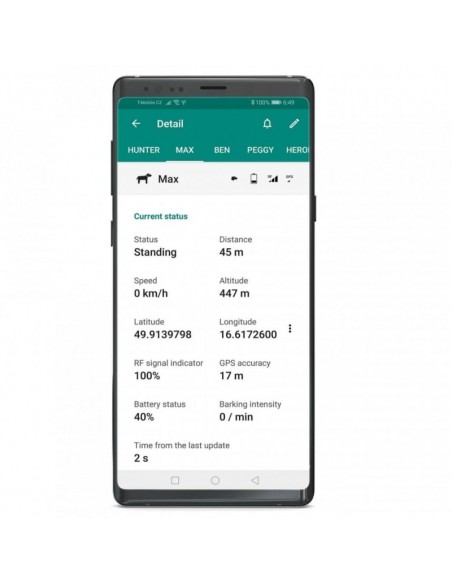

• Display of all devices (dogs, other hunters, waypoints) on the map
• Online and offline maps

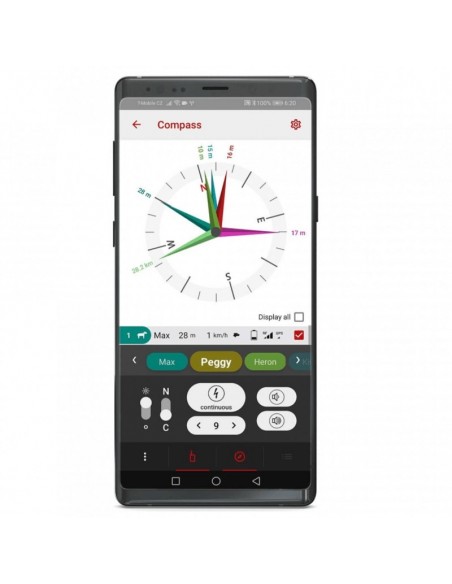

• Compass
• Logging of the path of all devices
• Indication of a barking dog with track recording

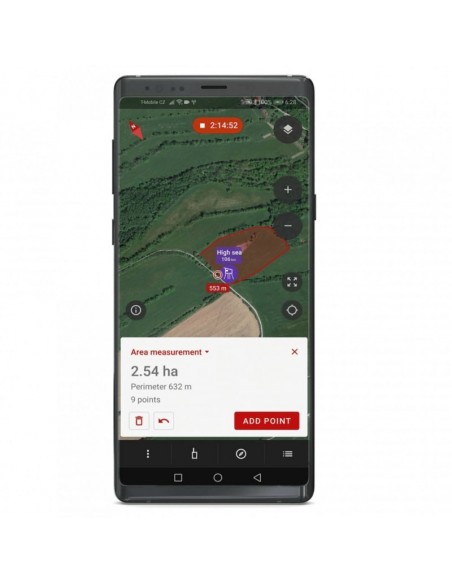

• Measurement of distance and area on the map

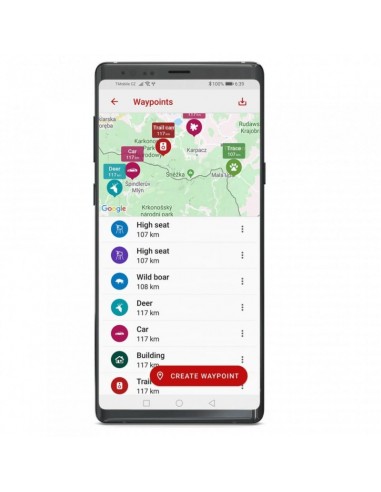

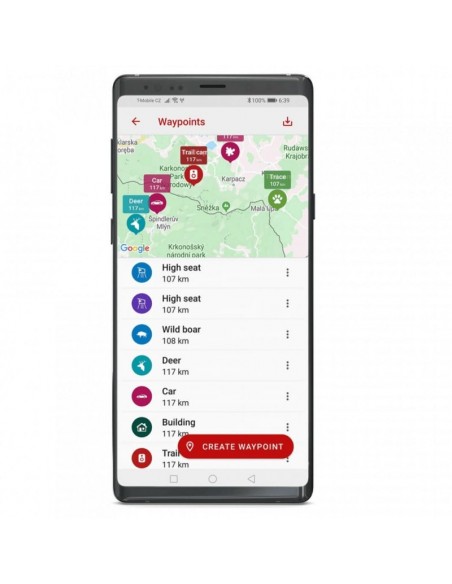

• Saving waypoints on the map
• Geo-plot: the ability to create a virtual acoustic boundary on the map
• Acoustic signal
• DOG GPS X30TB – electrical stimulation pulse and light function
• Application to download:
• Android operating system
• IOS operating system

Advice:

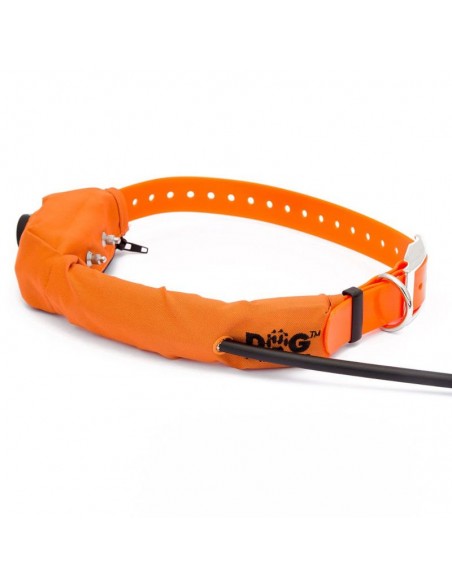

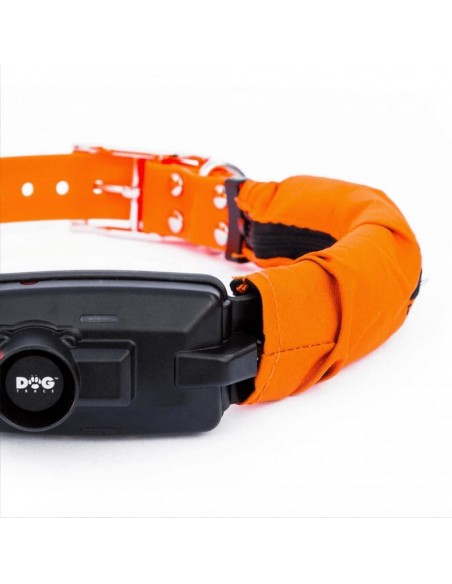

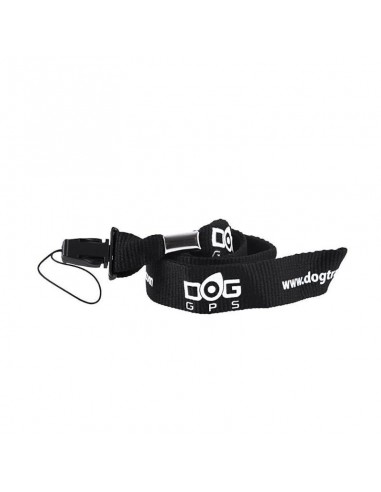

If you have a small dog, you can order a narrower strap, which is suitable for a smaller circumference:

• Plastic Belt 25mm × 70cm (Package Contents), the smallest adjustable circumference is 29.5cm
• Plastic belt 20 mm × 70 cm, minimum adjustable circumference 26.5 cm
• Plastic belt 15 mm × 70 cm, the smallest adjustable circumference is 26 cm

The technical data (charging time, dimensions, weight, etc.) can be found in the Instructions for Use.

Our devices transmit on approved and free-to-use frequencies, 869.525 MHz (500 mW)

Receiver dimensions 119 × 62 × 15 mm
Receiver weight (without battery) 192 g
Transmitter dimensions 77 × 45 × 44 mm
