HENDERSON PRECISION GEN 3 ELECTRIC CASE TRIMMER 220V
HPTRI220V
Enter your email address below and you will be notified
when the product is back in stock.
local_shipping Left until a free shipping: €150.00

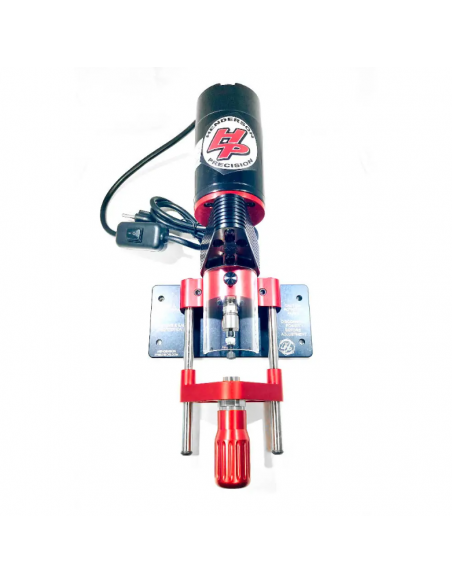

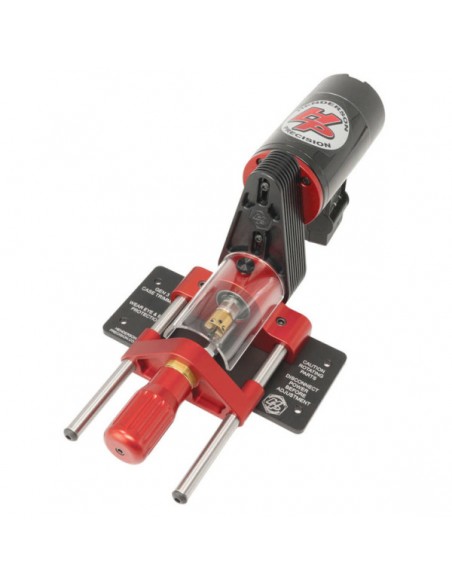

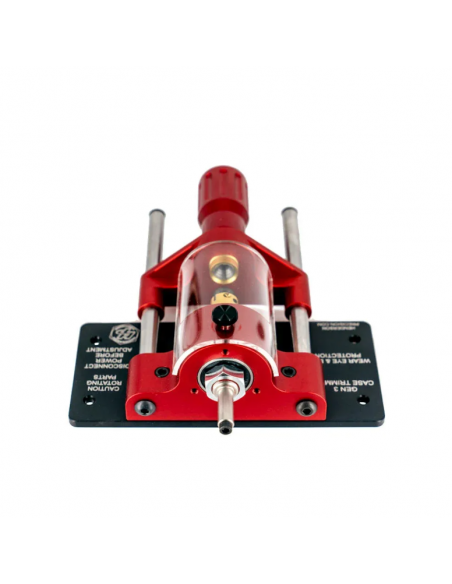

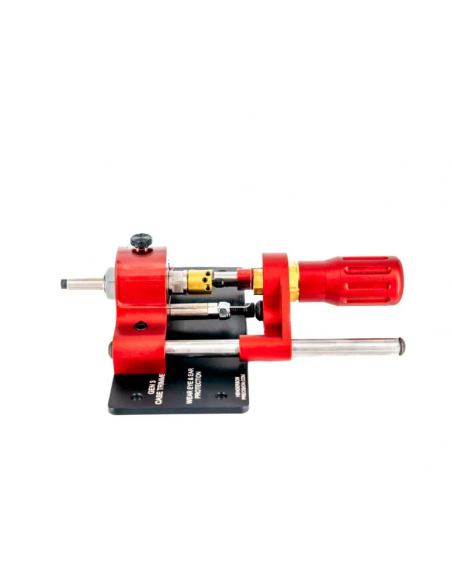

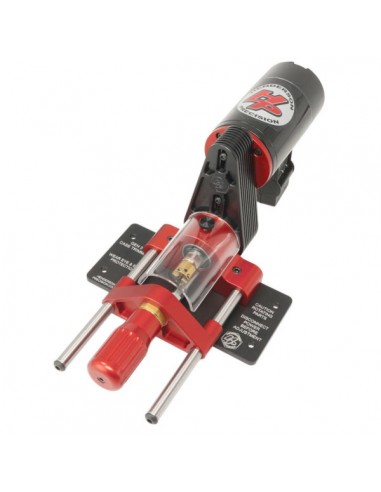

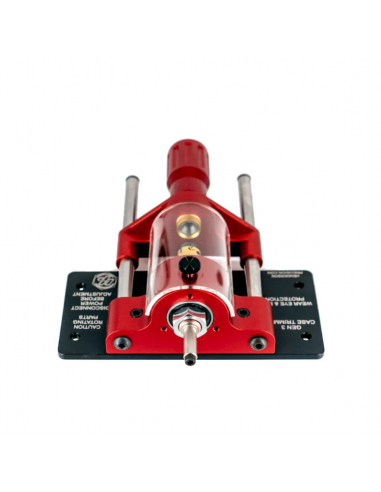

The Henderson Precision Tri-Trim Gen 3 Case Trimmer represents the pinnacle of innovation in the field of case reloading. This trimmer is engineered to deliver clean, precise, and consistent cuts in a single operation, thanks to its Taper-Lock cutting head that utilizes adjustable carbide blades, ensuring lifetime durability and burr-free trimming of the case mouth. Constructed from a combination of 6061-T6 aluminum and 303 and 416 stainless steel, the Tri-Trim Gen 3 is entirely built in the United States to provide long-lasting service and exceptional performance.
Designed to be powered by a corded electric drill, a drill press, or a cordless solution for mobile use, the trimmer offers flexibility in any work environment. Its adaptability to various power systems makes it a versatile choice for experienced reloaders.
Key Features

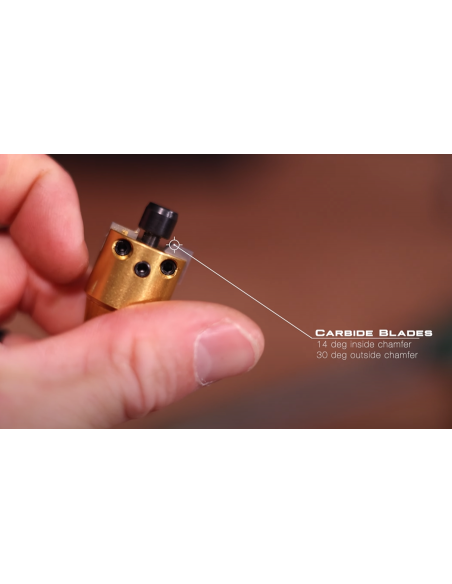

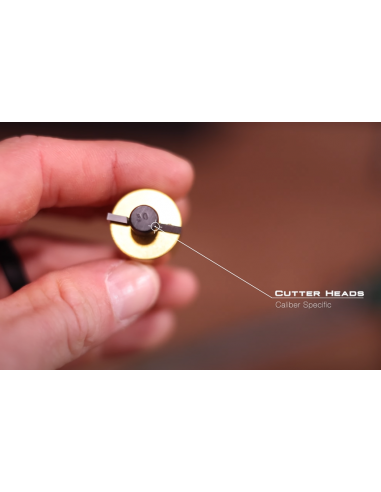

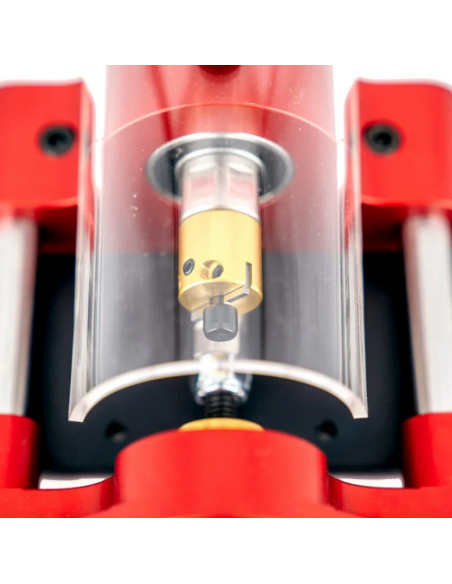

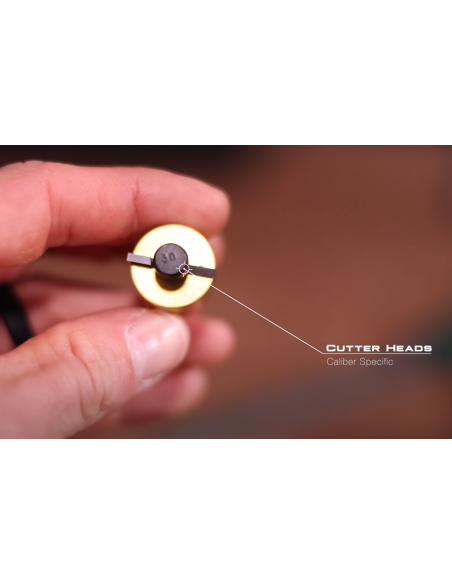

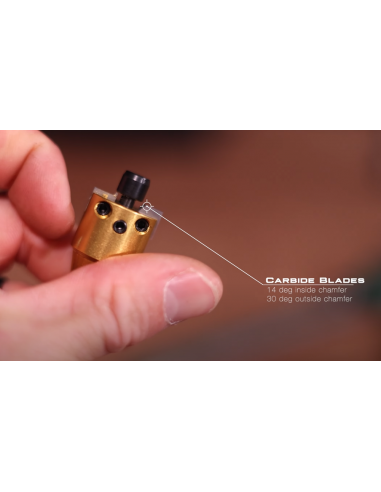

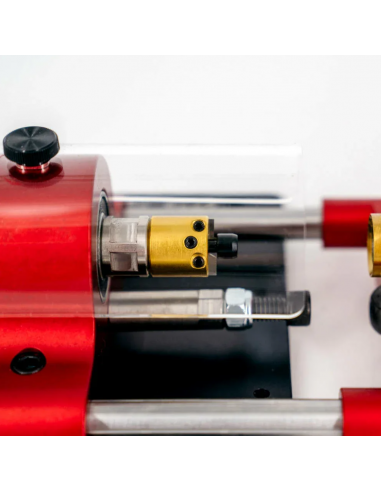

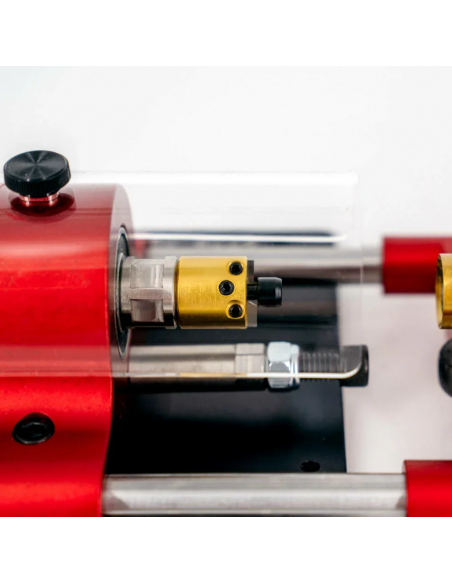

- Taper-Lock Cutting Head: Impeccable trimming with carbide blades for clean and precise cuts, without burrs. Ideal for rapid and consistent operations.
- Robust Construction: Made from 6061-T6 aluminum and stainless steel, the trimmer is built to withstand the test of time, ensuring reliability and durability.
- Precision Collet: Utilizing Brown & Sharpe type collets, unparalleled accuracy can be achieved. Available in four sizes, these collets accommodate cartridges from .224 up to .338 Lapua, ensuring repeatable results for every caliber.

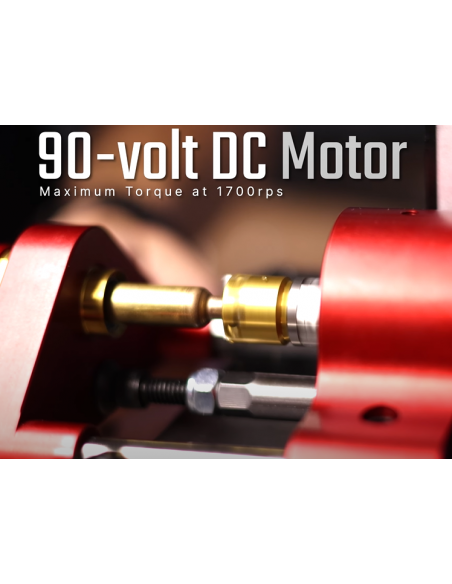

- Versatile Motor: Compatible with both corded and cordless drills, the DC motor provides an optimal speed of around 1800 RPM for ideal trimming. The belt drive ensures maximum torque at critical moments.
- Quiet Operation: The DC motor operates smoothly and quietly, reducing noise during extended use.
Collet Compatibility List for Calibers
- Collet #1 (Diameter .379, .473 & .532): 222 Rem Mag, 223 Rem, 225 Win, 22-250, 220 Swift, 243 Win, 6mm Dasher, 6×47 Lapua, 6XC, 244 Rem, 6mm BR Rem., 257, 25-06, 264 Win Mag, 260 Rem, 6.5×47 Lapua, 6.5 Creedmoor, 6mm Creed, 6mm SLR, 6.5×57 Mauser, 6.5 Jap Mauser, 6.5×55 Swede, 270 Win, 270 Savage, 270 Wby, 7×57 Mauser, 7mm Rem Mag, 7mm-08, 308 Win, 30-06, 300 Win Mag, 303 British.
- Collet #2 (Diameter .350, .418 & .506): 30-30, 7.5×55 Swiss.
- Collet #3 (Diameter .356, .440 & .545): 6mm PPC, 6.5 Grendel, 300 WSM, 300 PRC, 7mm PRC, 26 Nosler, 28 Nosler.
- Collet #4 (Diameter .310 & .605): 300 Norma Mag, 338 Lapua Mag.
Setup and Adjustment

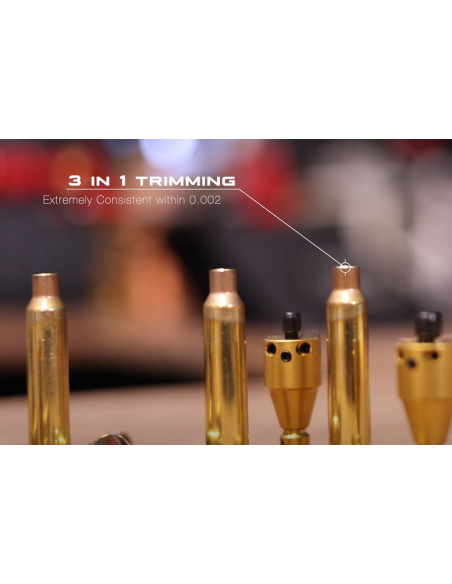

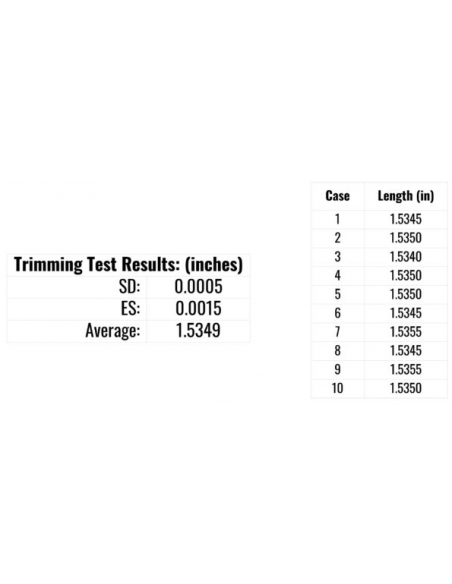

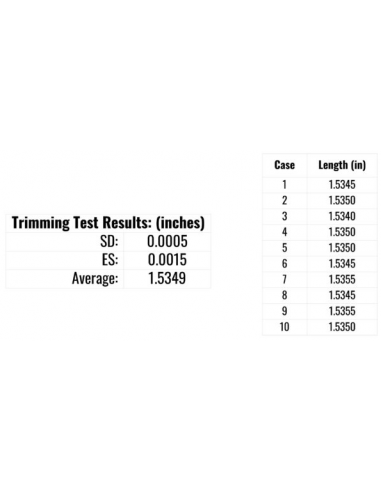

Before using the Tri-Trim Gen 3 Case Trimmer, proper configuration is essential. Each unit comes equipped with a cutting head and a collet for the desired caliber. The cutting length can be easily set by inserting the cartridge into the respective collet and adjusting the supplied stop screw. Once adjusted, the machine will guarantee repeatable results within a tolerance of ±0.002". After installing the protective cover, the trimmer is ready for safe operation.
Operation

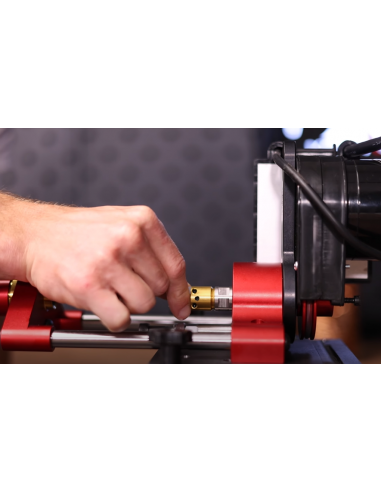

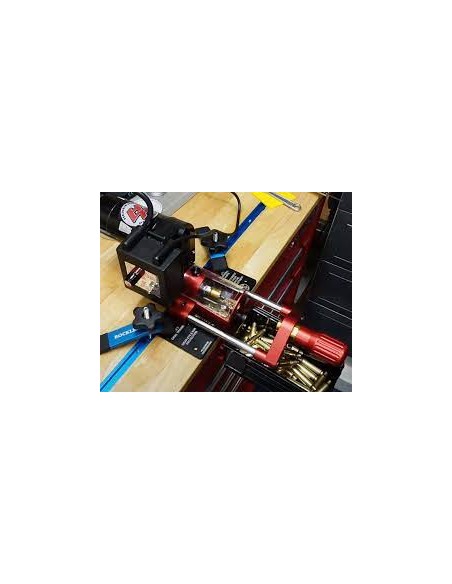

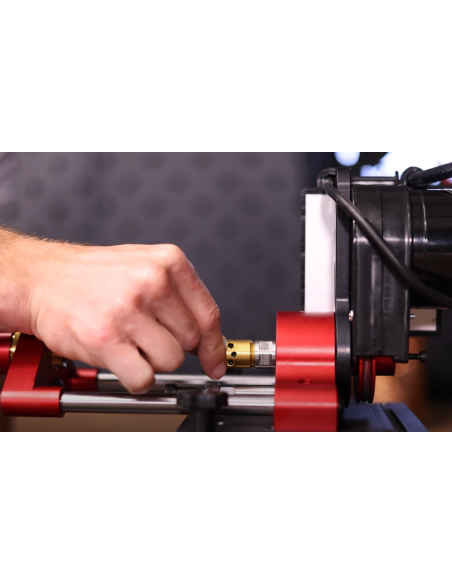

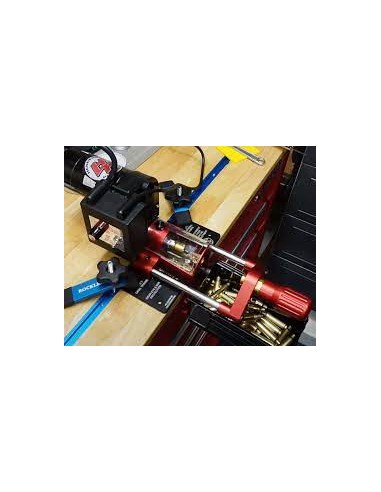

The Tri-Trim Gen 3 is designed to deliver excellent performance across various configurations, supporting rotational speeds ranging from 1400 to 1800 RPM, with an optimal speed of around 1700 RPM. For continuous operation, it is advisable to secure the trimmer to a workbench. Once the drill is connected to the machine’s socket, the trimming process can commence by inserting the cleaned and sized case into the collet, then gently pushing the handle towards the cutting head. Trimming is complete once no cutting sensation is felt.
What's Included
- Collet #1 (for diameters .379, .473 & .532)
- Extra drive belt
- Adjustment screws for case length
- Adjustment tools: Allen wrenches and a 11/16” wrench
