The essentials:
linear distance determination of up to 2,700 yards
output of equivalent horizontal range (EHR) of up to 1,100m,display simply at the press of a button
barometric pressure, temperature sensors and angle measurementfor enhanced precision
Perger-Porro prism system for extremely bright, high-contrast imagewith unique plasticity (three-dimensionality), no light reflection thanksto efficient ambient light suppression
highly shock-absorbing rubber-armoring ensures comfortable andsecure grip
water and dirt-repellent AquaDura® coating
nitrogen filling prevents internal fogging
guaranteed use from +55 °C to -25 °C, waterproof up to 5m
Product description:

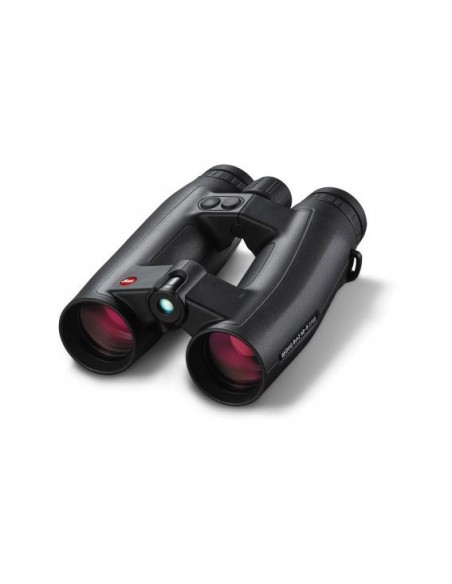

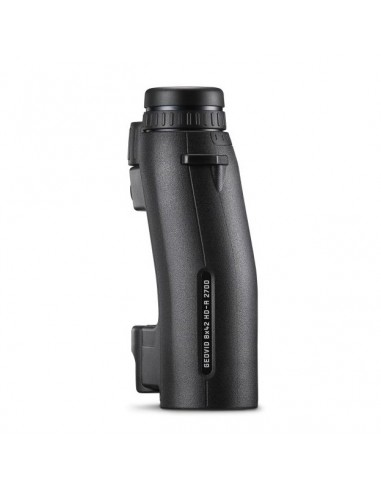

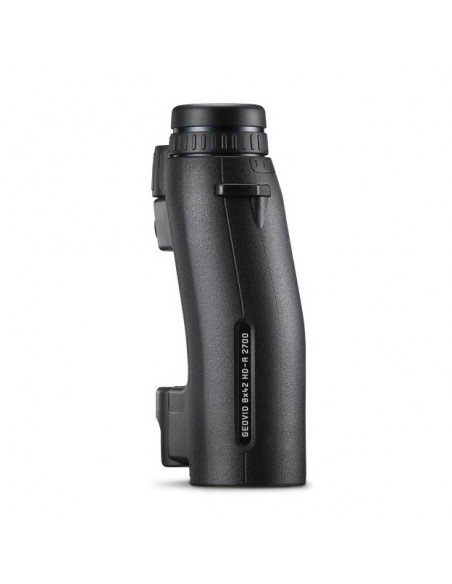

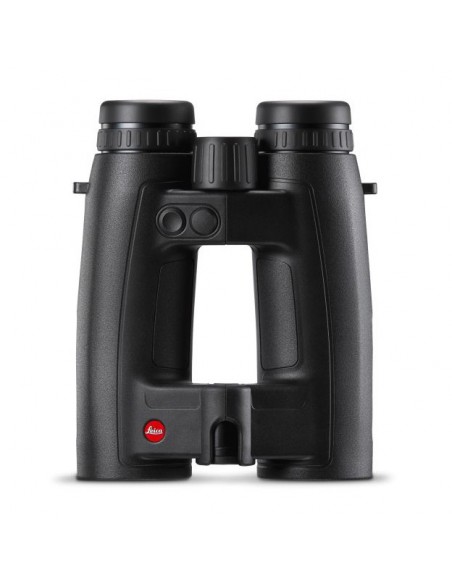

The Geovid HD-R 2700 combines ergonomic design and razor-sharp, high-contrast images, along with reliable ballistics. Easy, intuitive operation is guaranteed: equivalent horizontal range (EHR) output requires no pre-programming. In steep terrain, EHR gives you greater safety and flexibility. Leica's own algorithm takes into account not only the linear distance and angle but also a realistic ballistic trajectory, making it much more accurate than the cosine function known as Rifleman's Rule. The result is a highly precise calculation of the EHR at a ballistic function range of 1,200 yds/1,100 m. Thanks to patented Perger-Porro prisms, optimized coatings and the unique Leica baffle system, third-generation Geovid HD-R models achieve excellent values in terms of contrast, transmission and stray-light suppression - for maximum performance until night sets in.
Scope of delivery:
Laser rangefinder, Contoured neoprene carrying strap, lens caps, eyepiece covers, battery, Cordura case
Magnification 8 x
Front lens diameter 42 mm
Exit pupil 5.2 mm
Twilight factor 18.3
Field of view at 1,000 yds/1,000 m 128.7 yds (386.1 ft) / 128.7 m
Close focus range approx. 16.5 ft / 5.0 m
Diopter compensation ± 4 dpt
Distance measurement: Range 10 yds to approx. 2,700 yds / 10 m to approx. 2,500 m
Equivalent horizontal range (EHR) 10 yds to 1.200 yds / 10 m to 1,100 m
Measuring accuracy ± 0,5 yds at 10 - 200 yds / ± 0,5 m at 10 - 200 m ± 1 yds at 200 - 400 yds / ± 1 m at 200 - 400 m ± 0,5 % beyond 400 yds / ± 0,5 % beyond 400 m
Display LED display with 4 characters and ambient-light-controlled brightness
Eyecup with twist-and-pull action yes, detachable, with 4 click-stops
Focusing internal focusing with center focusing barrel
Prism system Perger Porro-System
Coating HDC® multicoating, AquaDura® lens coating
Waterproof up to 16.5 ft / 5 m
Body magnesium, nitrogen-filled
Dimensions (W x H x D) 4.9 x 7.0 x 2.8 in / 125 x 178 x 70 mm
Weight approx. 34.3 oz / 975 g incl. batteryYard/Meter switch yes
Laser eye-safe, invisible light laser compliant with EN and FDA Class 1
Measuring mode scan mode, single measurement
Power supply 1 x 3 V/ CR2 lithium button cell
Battery life approx. 2,000 measurements at 68° F / 20°C
Accessories tripod adapter (42 220) floating carrying strap (42 163)
