Normal Model (Non illuminated)

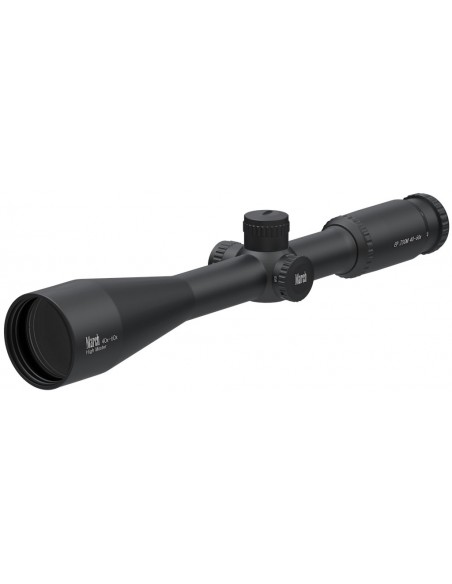

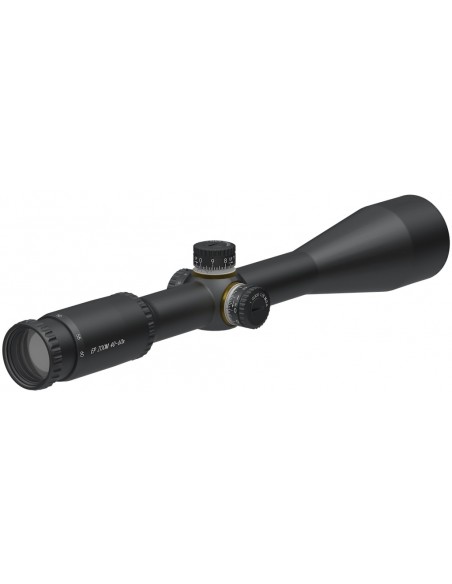

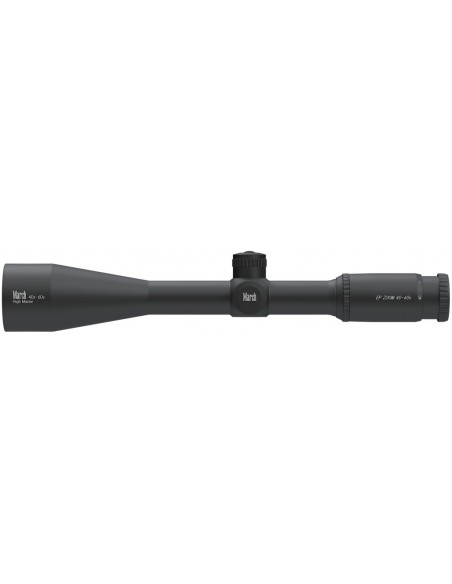

March Fixed Power "High Master" 40x-60x52mm EP zoom
The March EP zoom 40x-60x52mm is based on the well regarded and match winning 36x-55x52mm EPZ scope. It has increased magnification and the same Super ED lens and high refractive glass as the 48x52mm fixed scope, with the added advantage of external zoom adjustment to absolutely guarantee zero POA shift, essential for benchrest and competition shooting. The High Master Lens System has 2 Super ED lens elements within its lens system. By using Super ED lens elements, we can suppress chromatic aberration even more than with ED lenses and thus produce a sharper image with greater contrast, while still having a strong scope.
This 40-60x52 EP Zoom scope has a 1.5 magnification ratio zoom ocular lens. Basically a 55x fixed focus scope is magnified with an eyepiece in the range of 40- 60x. You are looking at the same image as through a fixed scope. Essentially this is a fixed scope and we guarantee zero POA shift. Please note that the ocular lens extends when changing the magnification. The weight is 680g(23.9oz).
・30mm diameter body
・52mm objective lens
・High Master lens system (Super ED lenses)
・Side focus 10 yard - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability

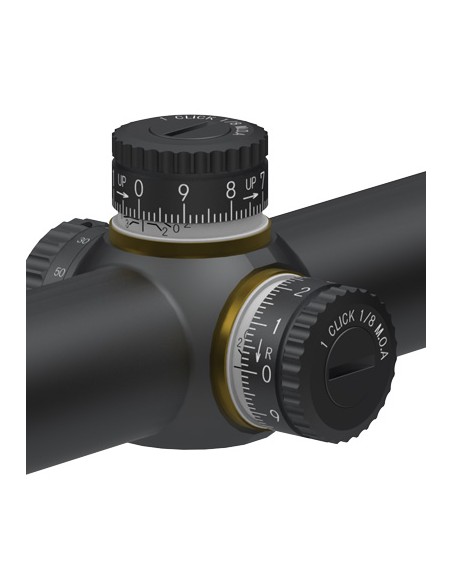

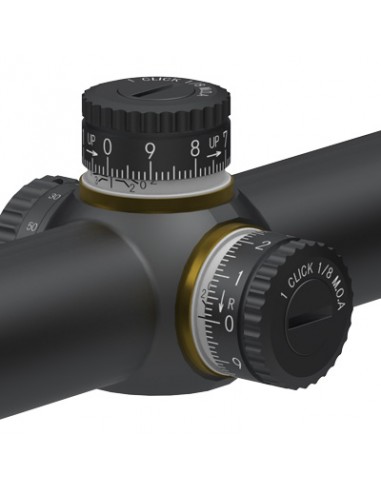

1/8 MOA Type
1 Click Adjustment : 1/8 MOA (0.13inch @100yds)
10 MOA turret revolution (10.47inch @100yds)
1/4 MOA adjustment turret is also available.
Technical Data:
| Low | High | ||
|---|---|---|---|
| Magnification | 40x | 60x | |
| Effective Lens Diameter | 52mm | ||
| Body Tube Diameter | 30mm | ||
| Exit Pupil | 1.24mm (0.05inch) |
0.89mm (0.04inch) |
|
| Field of View (real) | degree | 0.49° | 0.44° |
| ft/100yd | 2.6ft | 2.5ft | |
| m/100m | 0.85m | 0.77m | |
| Eye Relief | 71-89mm (2.8-3.5inch) |
59-72mm (2.32-2.83inch) |
|
| 1 Click Adjustment | 1/8MOA | ||
| Elevation Travel | 60MOA | ||
| Windage Travel | 40MOA | ||
| Focus Distance | 10yd - infinity | ||

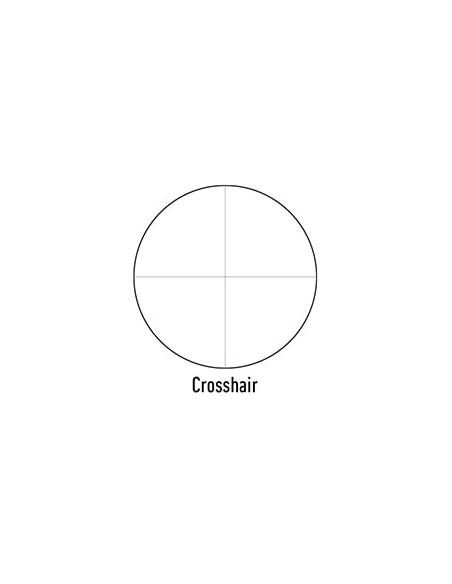

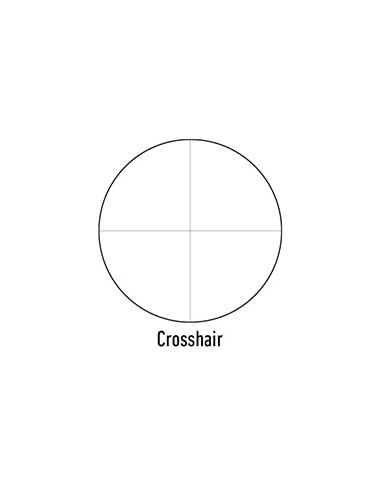

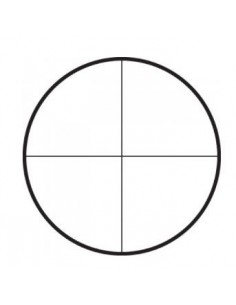

| Reticle | CH 1/8dot 3/32dot 1/16dot LR |
||
| In the box | Leather Caps (Objctive and Eyepice) MD disk Lens Cloth |
||
| Scope Size | A | 374-397mm (14.72-15.63inch) | |
 | B | 162mm (6.38inch) | |
| C | 60mm (2.36inch) | ||
| D | 41mm (1.61inch) | ||
| E | 126mm (4.96inch) | ||
| F | 86-109mm (3.39-4.29inch) | ||
| G | 70mm (2.76inch) | ||
| H | 55mm (2.17inch) | ||
| Weight | 680g (23.9oz) | ||
