MARCH ZIELFERNROHR FIXED POWER 48X52BR HM

Normal Model (Non illuminated)

March Fixed Power "High Master" 48x52mm

The fixed power High Master 48x52mm scope is the ultimate fixed power scope, based on the very successful March 40x & 50x scopes. The High Master Lens System has 2 Super ED lens elements within its lens system. By using Super ED lens elements, we can suppress chromatic aberration even more than with ED lenses and thus produce a sharper image with greater contrast, while still having a strong scope. The 48x52mm High Master offers superior image quality and clarity right to the edge of the lens, using Super ED lens and high-refractive glass. This scope is suitable for benchrest shooting.

・Fixed 48x scope in SFP
・30mm diameter body
・52mm objective lens
・High Master lens system (Super ED lenses)
・Side focus 10 yard - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability

1/8 MOA Type

1 Click Adjustment : 1/8 MOA (0.13inch @100yds)
10 MOA turret revolution (10.47inch @100yds)
1/4 MOA adjustment turret is also available.

Technical Data:

		Low	High
Magnification		48x	--
Effective Lens Diameter		52mm
Body Tube Diameter		30mm
Exit Pupil		1.08mm (0.04inch)	--
Field of View (real)	degree	0.52°	--
	ft/100yd	2.7ft	--
	m/100m	0.90m	--
Eye Relief		66-81mm (2.6-3.19inch)	--
1 Click Adjustment		1/8MOA
Elevation Travel		60MOA
Windage Travel		40MOA
Focus Distance		10yd - infinity

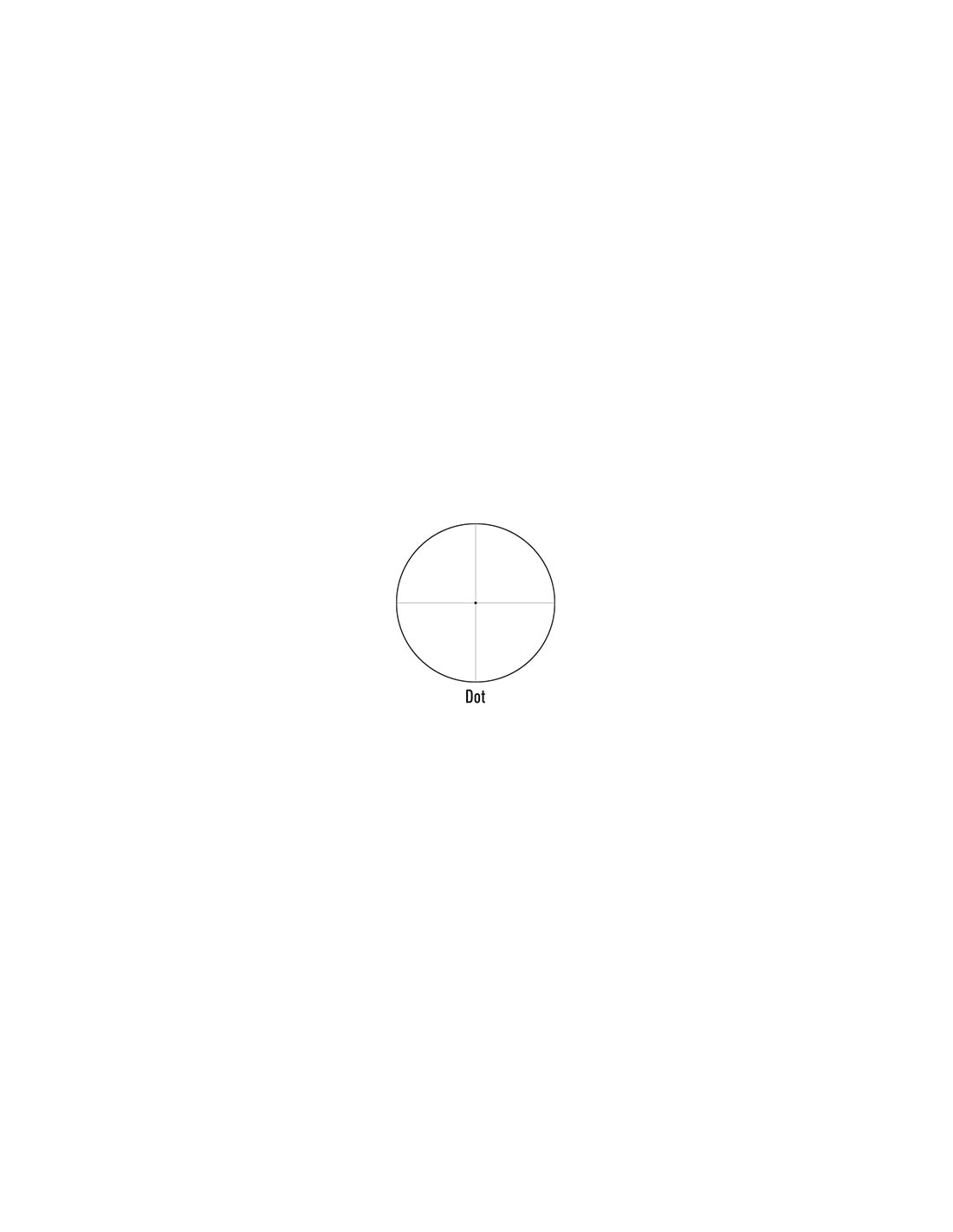

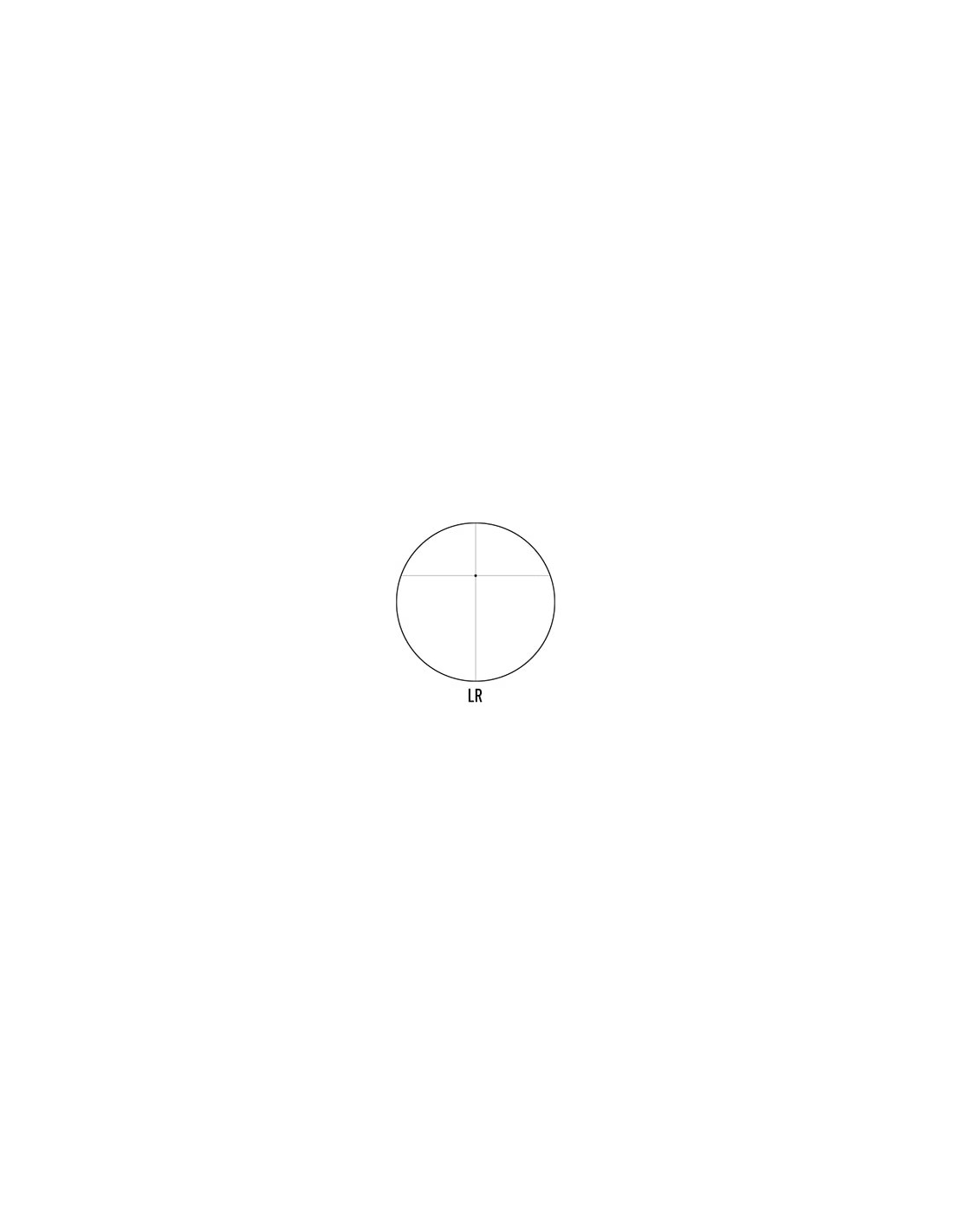

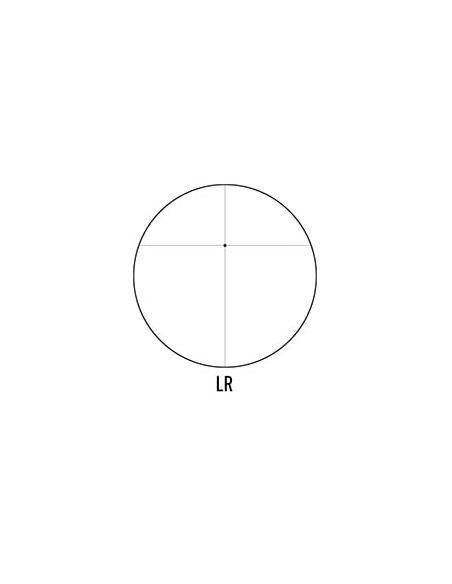

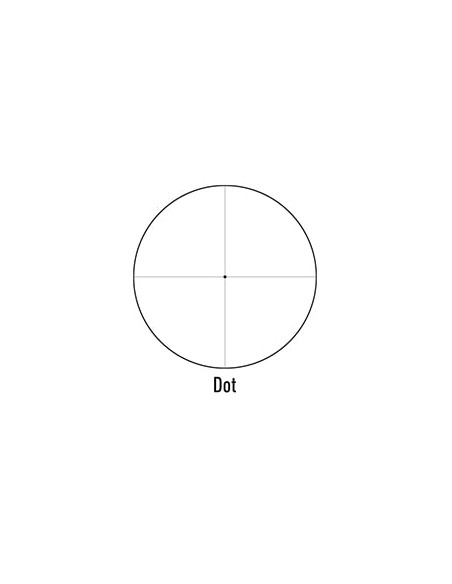

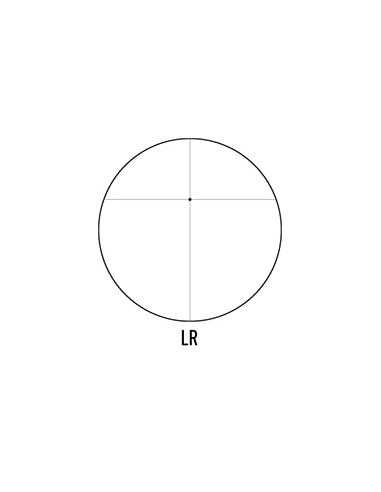

Reticle		CH 1/8dot 3/32dot 1/16dot LR
In the box		Leather Caps (Objctive and Eyepice) MD disk Lens Cloth
Scope Size	A	370mm (14.57inch)
	B	177mm (6.97inch)
	C	60mm (2.36inch)
	D	41mm (1.61inch)
	E	126mm (4.96inch)
	F	67mm (2.64inch)
	G	70mm (2.76inch)
	H	70mm (2.76inch)
Weight		635g (22.4oz)
