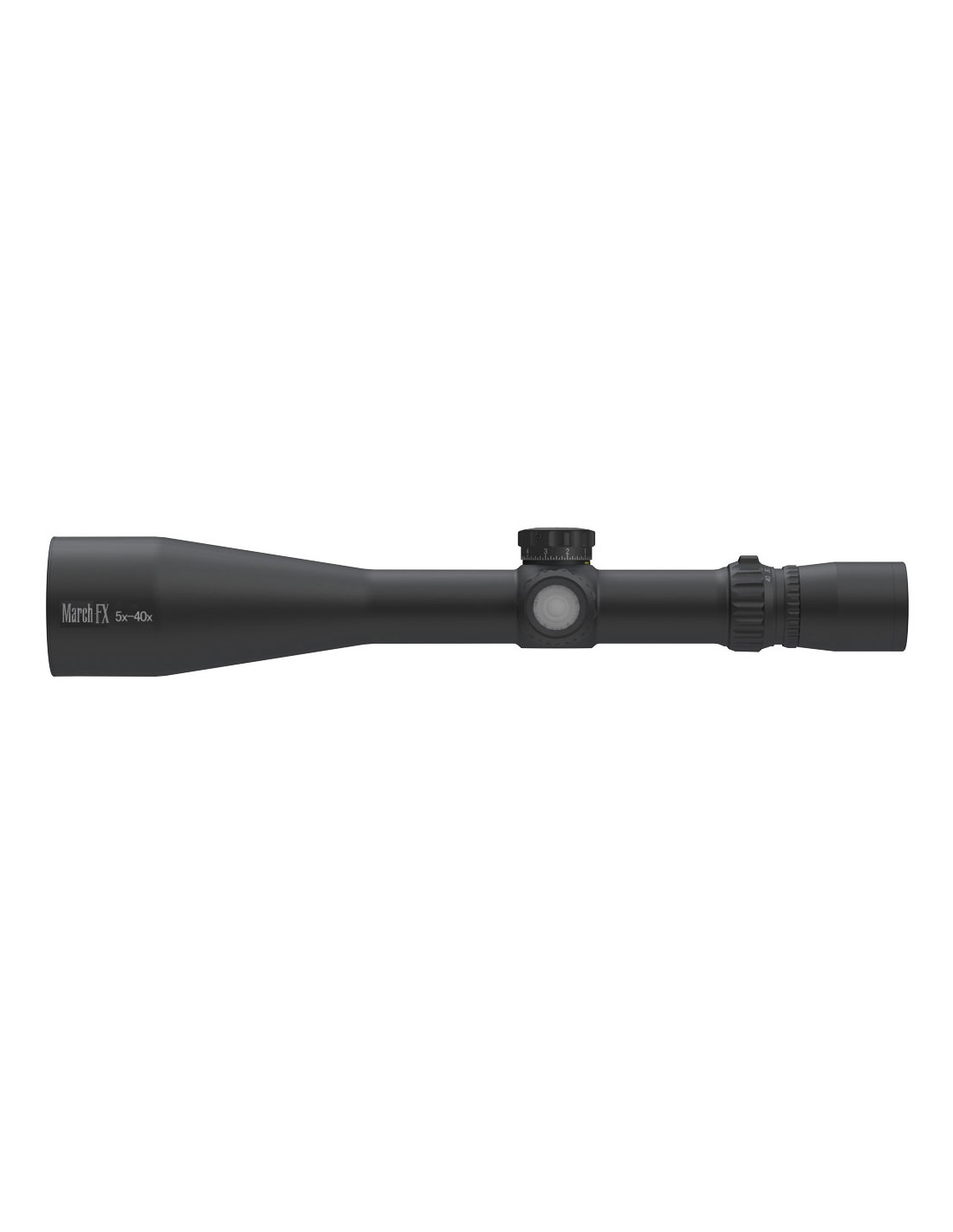

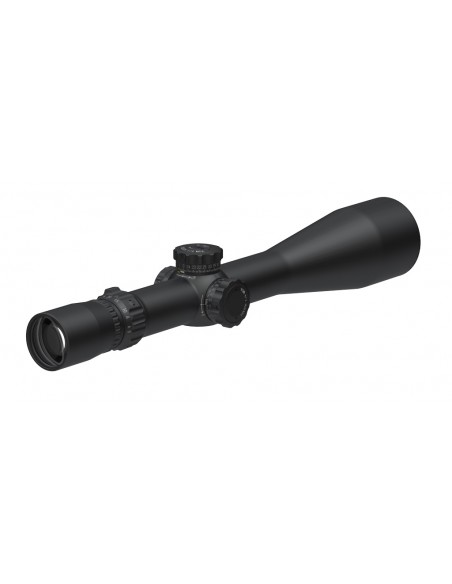

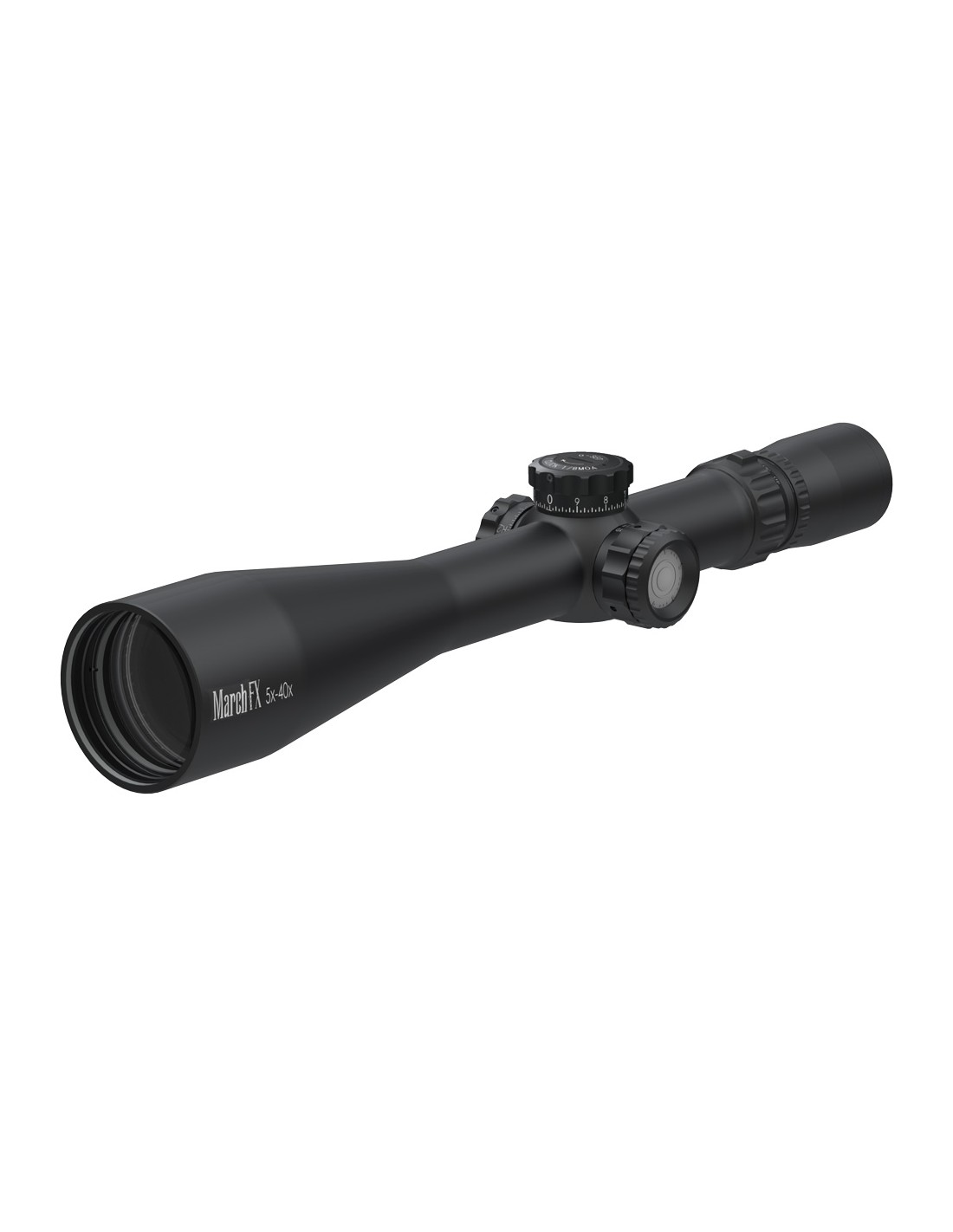

Tactical Model (Non illuminated)

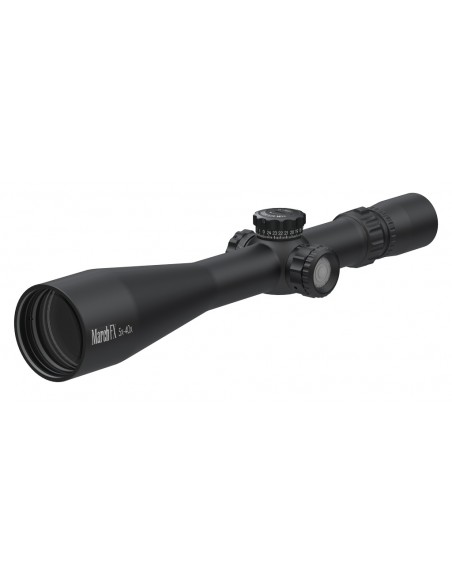

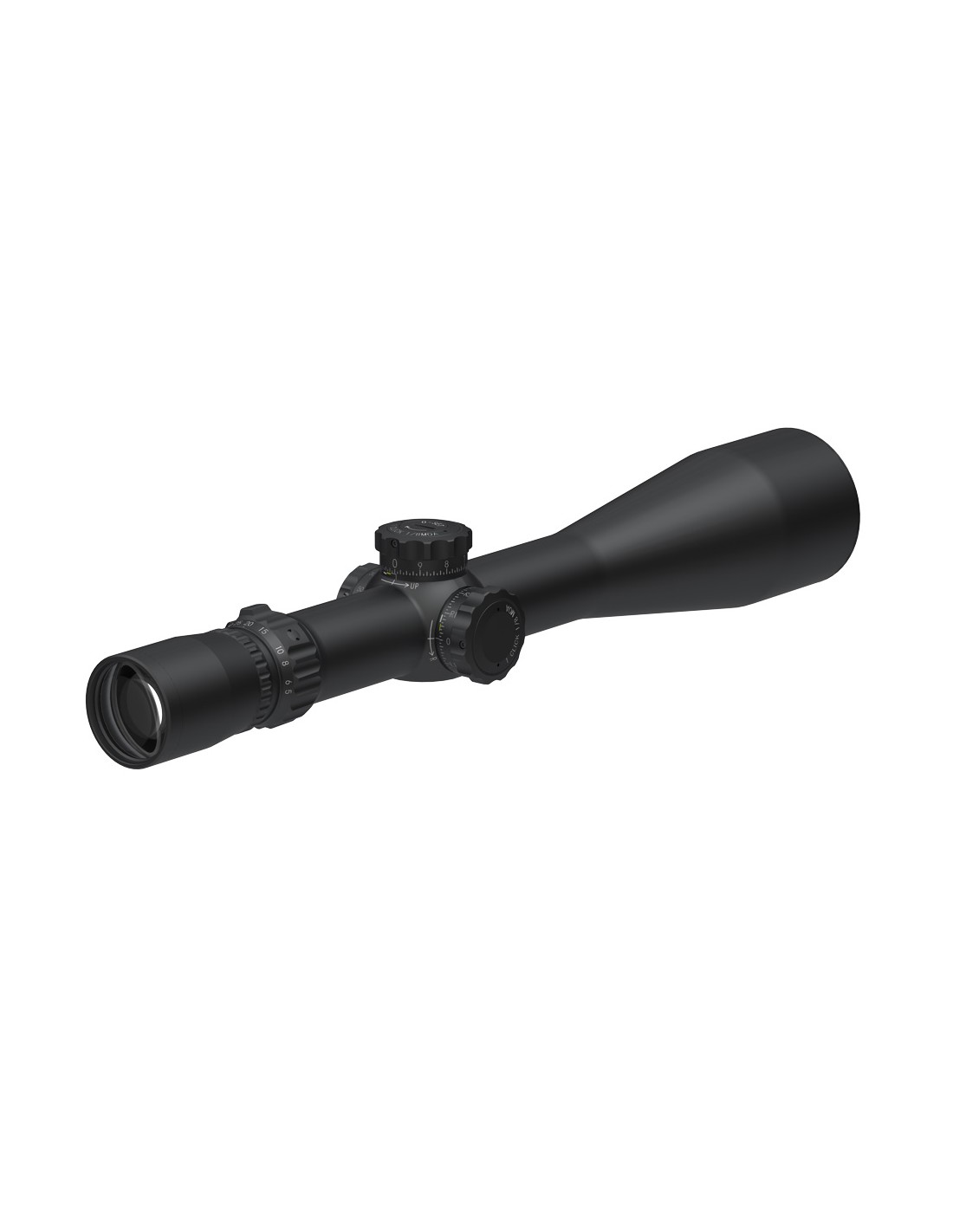

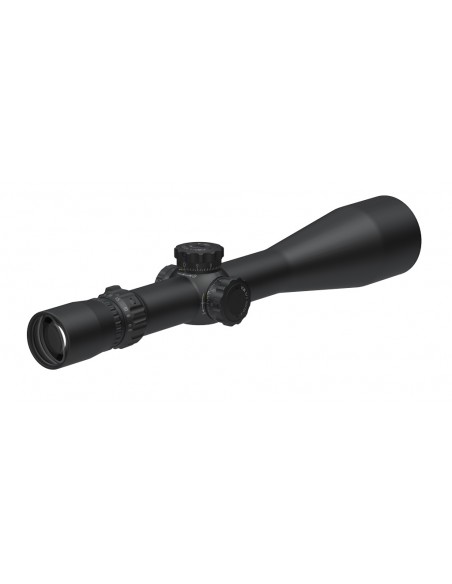

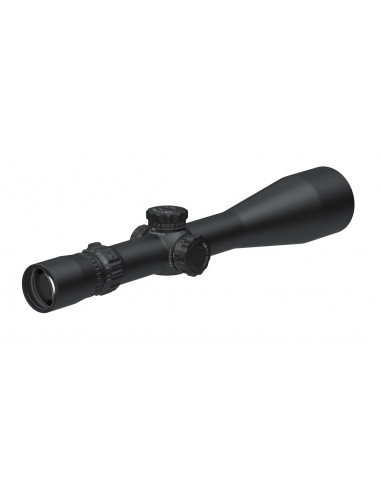

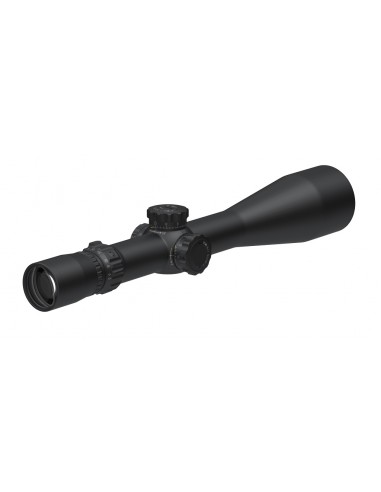

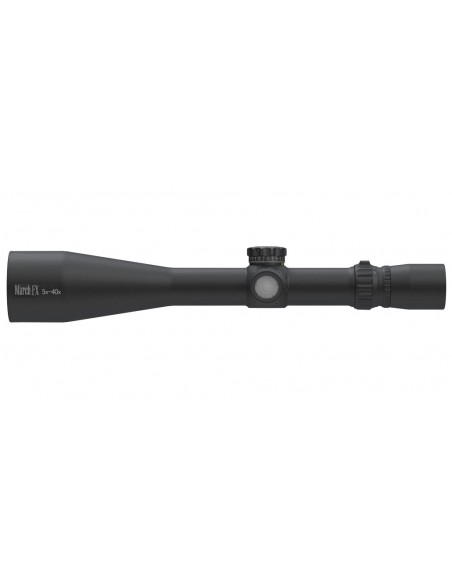

March-FX 5-40x56mm
・8X Zoom in FFP
・34mm diameter body
・56mm objective lens
・Side focus 10 yard - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability
First Focal Plane Reticle Scope (FFP)
A feature of First Focal Plane design, also known as FFP, is the reticle scale value does not change over the entire zoom range. Also the point of aim (POA) does not change over the entire zoom range. Using the reticle for ranging and also with trajectory drop charts is much simplified. However, the reticle scale will get thicker when magnification is increased. The special reticle design in the March scope allows target acquisition quickly at both low and high magnification.
The standard and low illumination switch modules are available. Both modules provide four levels of the reticle glow (red) intensity, which can be cycled through by pressing the switch repeatedly. Both modules can be interchanged. This function is very effective in the dusk or when aiming at a dark target.

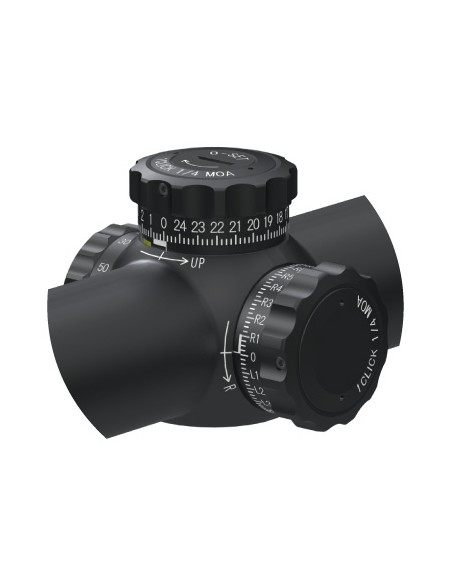

1/4 MOA Type

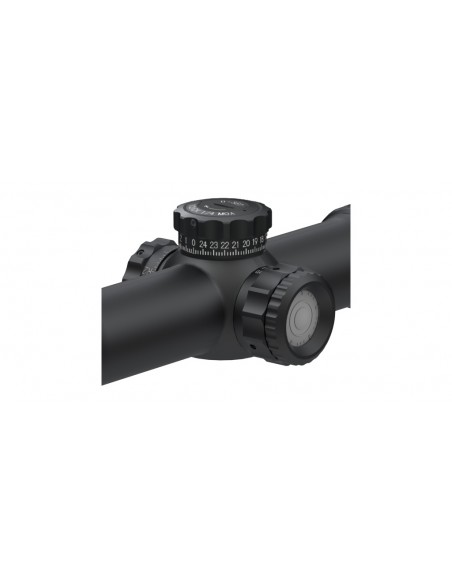

One turn of both adjustment dials is 25MOA and one click value is 1/4MOA.

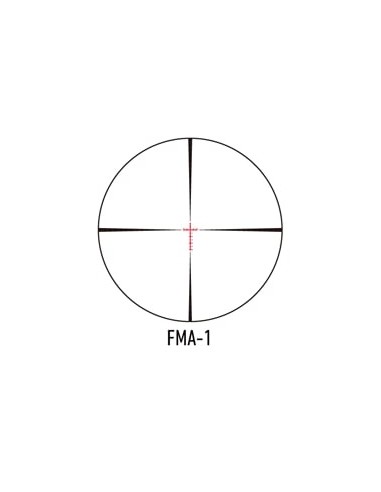

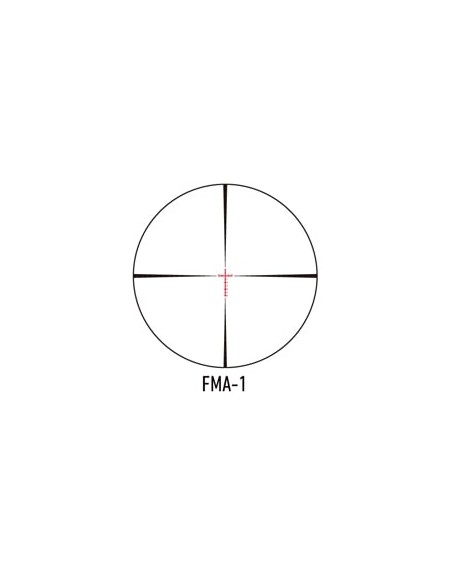

Reticle: FMA-1

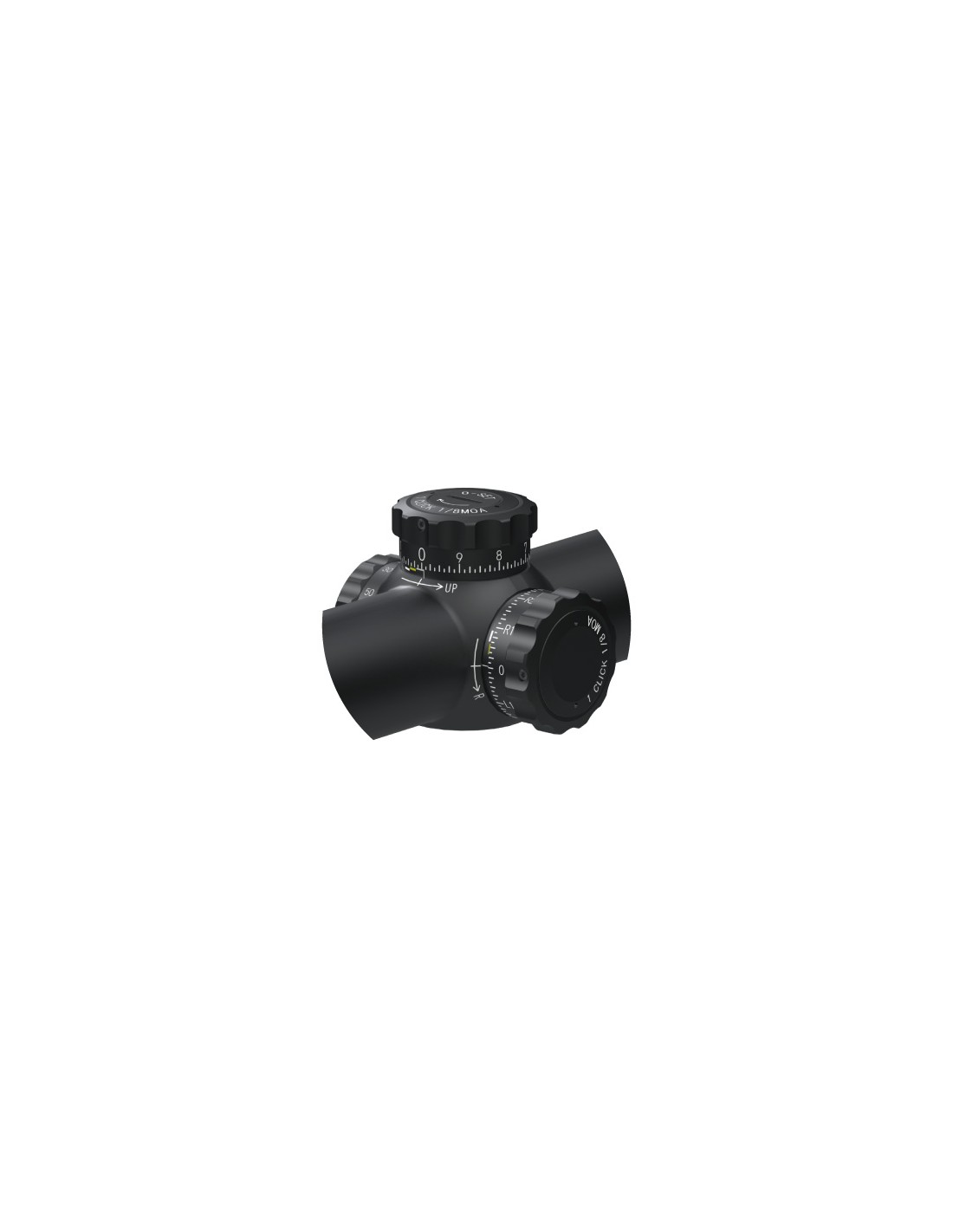

1/4MOA Adj.dials with 0-Set

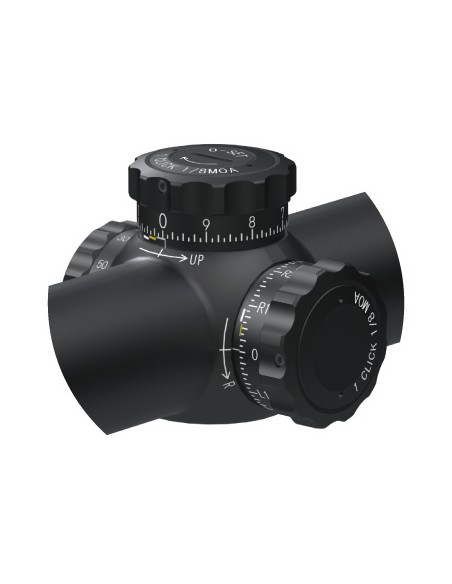

1/8 MOA Type

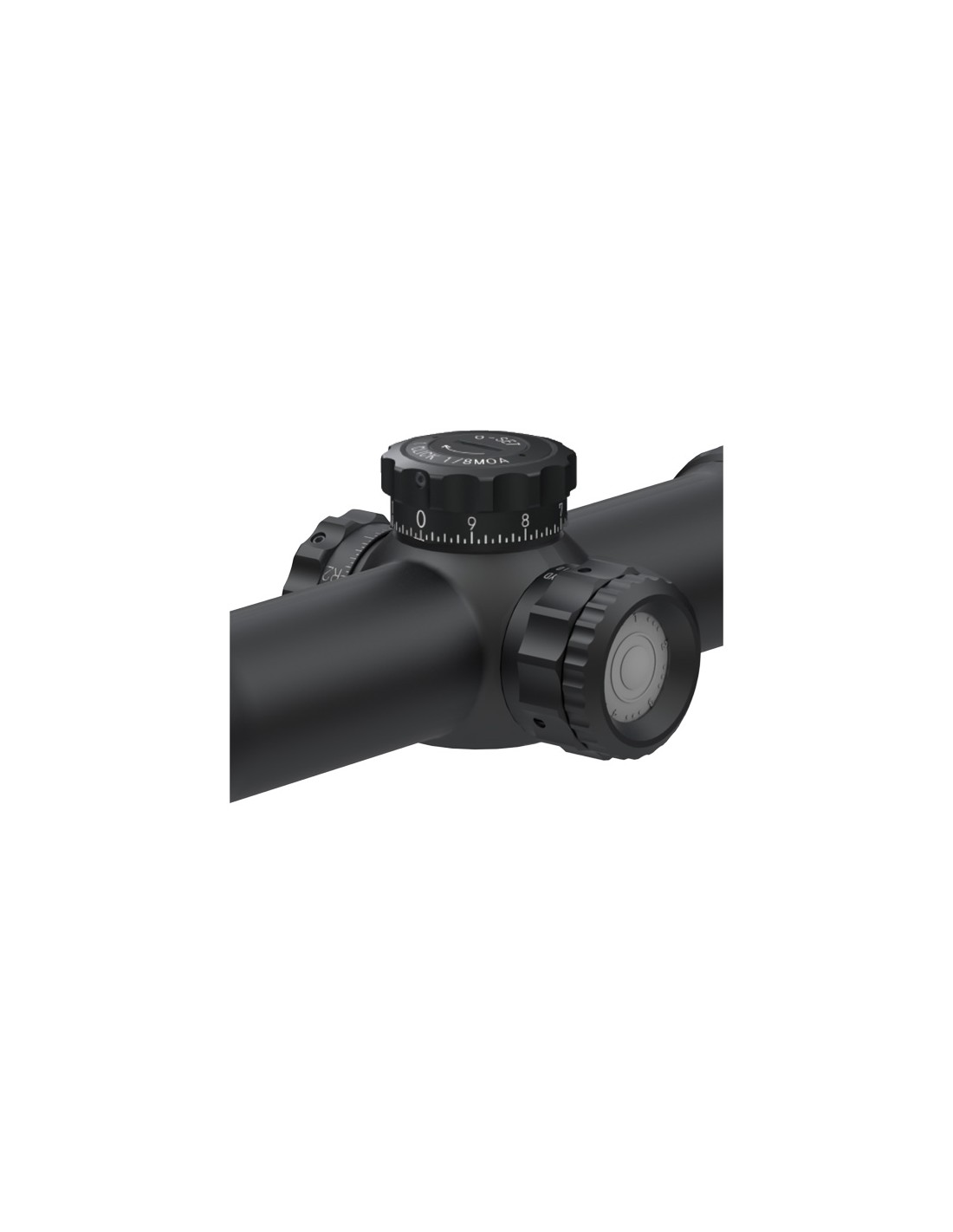

One turn of both adjustment dials is 10MOA and one click value is 1/8MOA.
Reticle: FMA-1

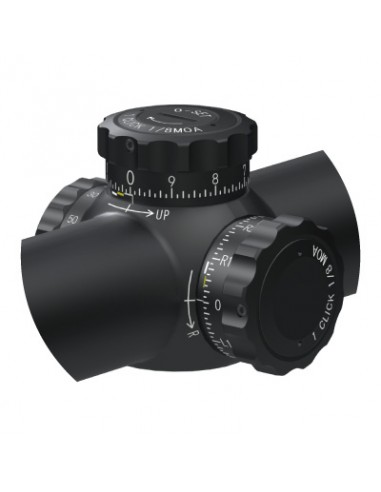

1/8MOA Adj.dials with 0-Set
Technical Data:
| Low | High | ||
|---|---|---|---|
| Magnification | 5x | 40x | |
| Effective Lens Diameter | 56mm | ||
| Body Tube Diameter | 34mm | ||
| Exit Pupil | -- | 1.4mm (0.06inch) |
|
| Field of View (real) | degree | 4.0° | 0.5° |
| ft/100yd | 21.0ft | 2.6ft | |
| m/100m | 6.98m | 0.87m | |
| Eye Relief | 96-100mm (3.78-3.94inch) |
92-98mm (3.62-3.86inch) |
|
| 1 Click Adjustment | 1/4MOA - 1/8MOA | ||
| Elevation Travel | 76MOA | ||
| Windage Travel | 38MOA | ||
| Focus Distance | 10yd - infinity | ||
| Reticle | FMA-1 | ||
| In the box | Flip Caps (Objective and Eyepiece) Sunshade Lens Cloth MD disk Fast Lever Hex wrench |
||
| Scope Size | A | 389mm (15.32inch) | |
 | B | 155mm (6.1inch) | |
| C | 64mm (2.52inch) | ||
| D | 41mm (1.61inch) | ||
| E | 146mm (5.75inch) | ||
| F | 88mm (3.46inch) | ||
| G | 66mm (2.6inch) | ||
| H | 52mm (2.05inch) | ||
| Weight | 840g (29.63oz) | ||
