Tactical Model (Illuminated)

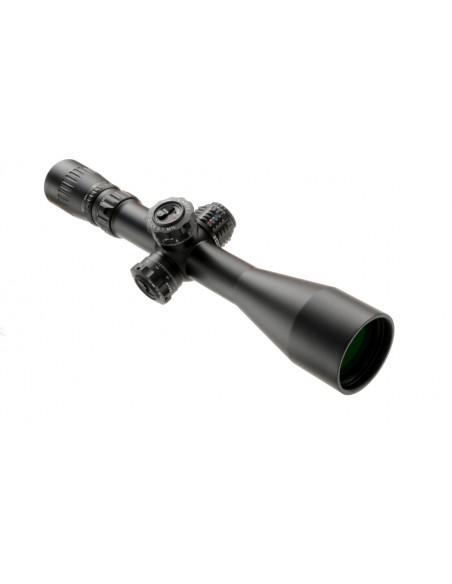

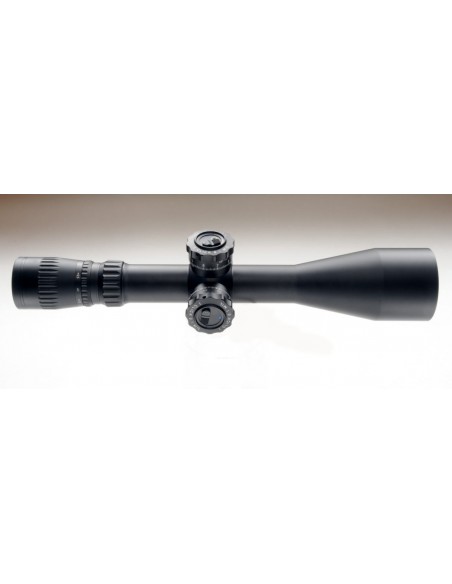

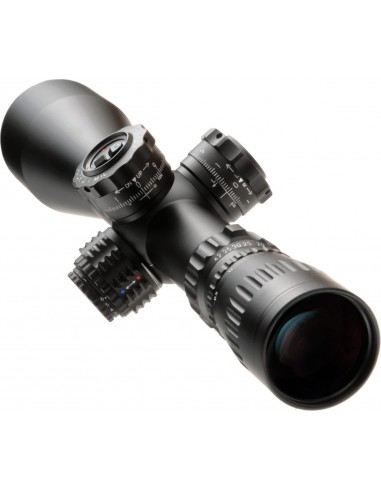

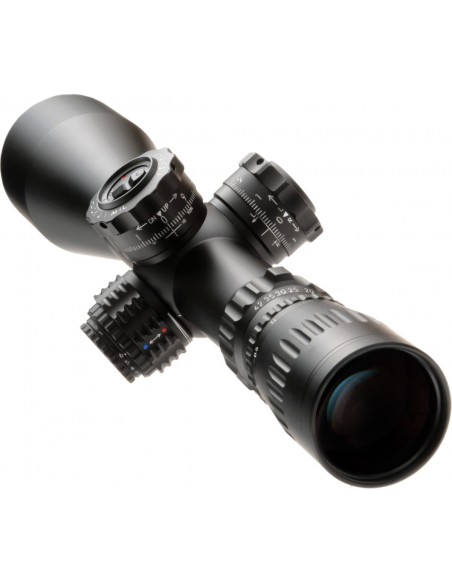

March-FX Wide Angle 5-42x56mm in MIL
This 5-42x56mm scope is developed for serious competition shooters, enthusiasts and hunters who demand the utmost in optical/mechanical performance. 5-42x56mm has the widest angle eyepiece among all March Scopes 26° (30% more than our standard models) offering enhanced FOV throughout the 8. 4x magnification range.
・8.4X Zoom in FFP
・34mm diameter body
・56mm objective lens
・Wide Angle eyepiece : 26 degrees
・Temperature Anti-Drift Lens System
・High Master lens system (Super ED lenses)
・Side focus 10 yard - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability

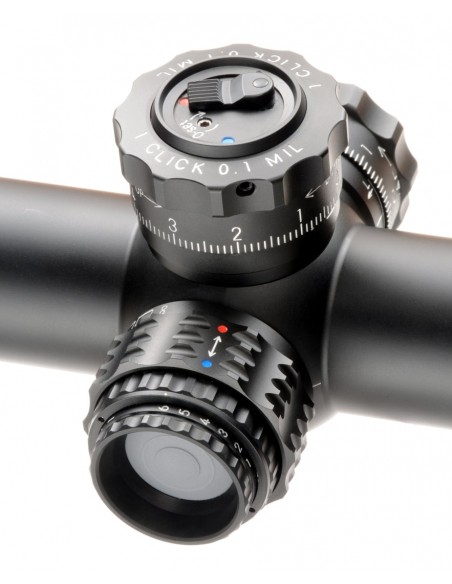

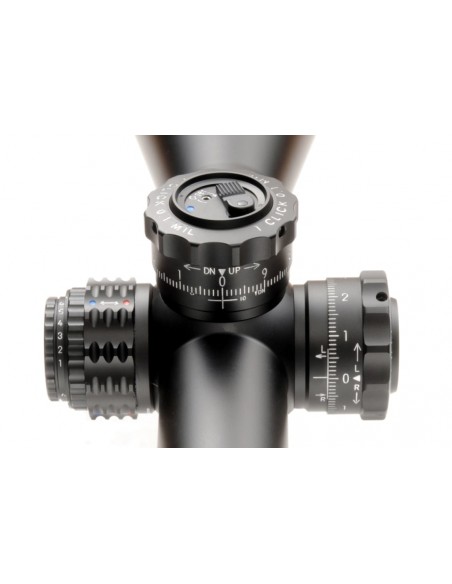

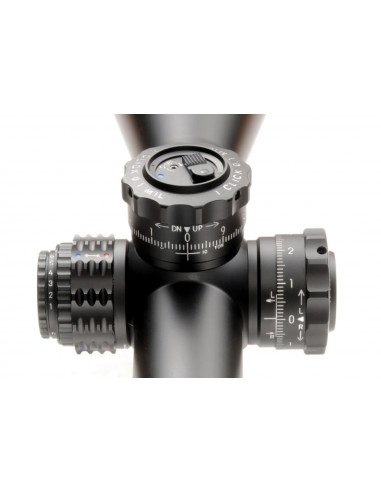

・Lockable Elevation / Windage / Side focus turrets
・Fast focus eyepiece
・6 level illumination module
Multi-turn 10 mrad elevation turret with 40 mrad total travel adjustment for ELR.
Locking elevation, windage and parallax with easy zero stop.
Fast focus diopter system will enable you to adjust from -2D to +2D in 1 revolution.
Eyepiece diopter can be rapidly adjusted.
5-42x56mm employs "Temperature Anti-Drift Lens System" and the "High Master lens system".
"Temperature Anti-Drift Lens System"
In the latest optical systems, a new lens material has been developed to accommodate changes in environmental temperature by altering the refractive index of the lenses. This new lens material has been adopted to create a more stable lens system that naturally adapts to changes in temperature to maintain focus and clarity over a wide range of conditions.
"Super ED lenses"
Super ED lenses are an improved ED lens element with optical characteristics even closer to pure fluorite crystal lens elements. By incorporating Super ED lenses (High Master lens system), we are able to reduce the chromatic aberration.
* Manufacturer's Note:
Because of the very wide adjustment range of this riflescope, you may experience some image quality degradation as you near the limits of the adjustment range. This can occur because of the extreme refraction of the incoming light at the edges of the objective lens. This degradation will worsen as the magnification increases but if you readjust the focus turret each time, you will be able to see the image clearly. In case you do not wish to adjust each time, we recommend using an appropriate canted rail if you plan to use this riflescope consistently near the limits of the adjustment range and at higher magnification. It can be utilized to gain additional elevation and to keep the scope optically centered as much as possible.

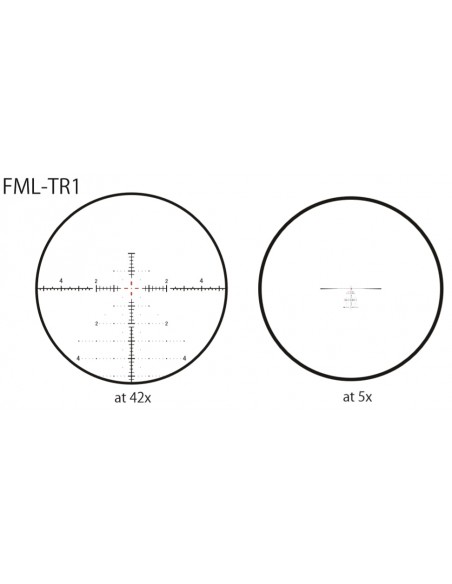

0.1 MIL Type
1 Click Adjustment : 0.1MIL (1cm @100m)
10 MIL turret revolution (100cm @100m)
In case sand may get into the locking lever, you can wash it away as the scope is waterproof.
Technical Data:
