MARCH ZIELFERNROHR COMPACT 2,5-25X42

Normal Model (Non illuminated) / Tactical Model (Non illuminated - illuminated)

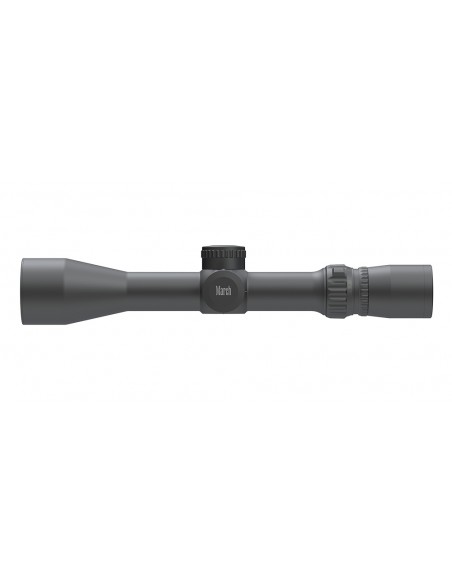

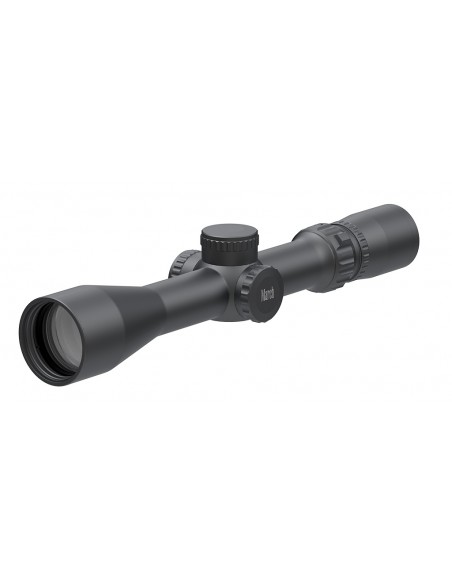

March Compact 2.5-25x42

A compact 10x zoom ratio scope covering extended wide range of tactical and hunting situation.

・10X Zoom in SFP
・ED Glass
・30mm diameter body
・42mm objective lens
・Side focus 10 yard - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability

MOA Type (Normal Model)

One turn of both adjustment dials is 25MOA and one click is 1/4MOA.
Elevation and windage axes each has a total adjustment range of 100MOA.

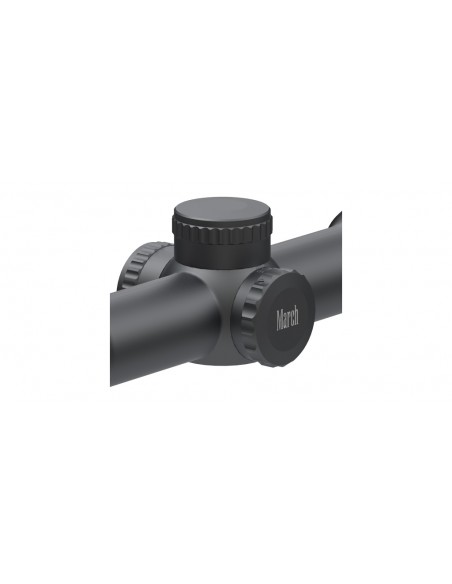

1/4MOA Adj.dials
Includes elevation and windage adjustment dial caps for preventing incorrect action.

MOA Type (Tactical Model)

One turn of both adjustment dials is 25MOA and one click is 1/4MOA.
Elevation and windage axes each has a total adjustment range of 100MOA.

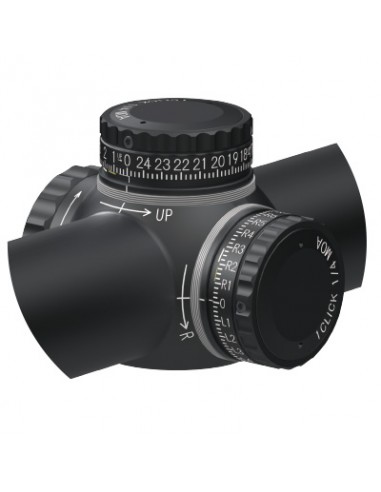

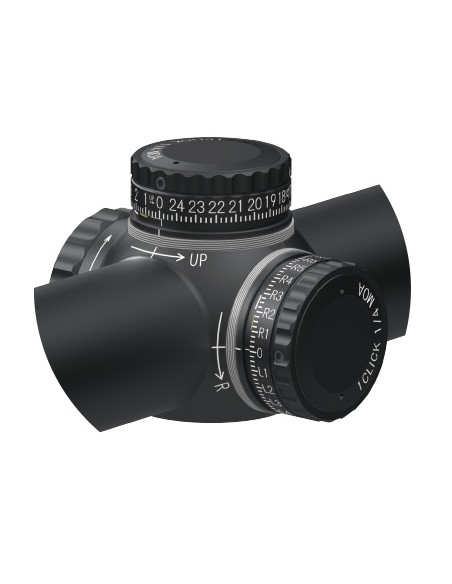

1/4MOA Adj.dials with 0-Set
Oversized dials for elevation, windage, and side focus for easy adjustment.
The elevation dial has a 0-set function.

Technical Data:

		Low	High
Magnification		2.5x	25x
Effective Lens Diameter		42mm
Body Tube Diameter		30mm
Exit Pupil		--	1.68mm (0.07inch)
Field of View (real)	degree	8.0°	0.8°
	ft/100yd	42.0ft	4.2ft
	m/100m	13.99m	1.40m
Eye Relief		85-100mm (3.35-3.94inch)	89-96mm (3.5-3.78inch)
1 Click Adjustment		1/4MOA
Elevation Travel		100MOA
Windage Travel		100MOA
Focus Distance		10yd - infinity

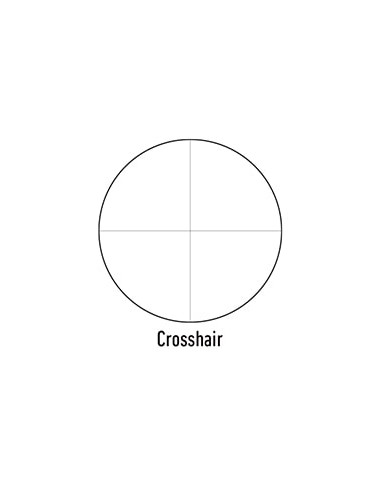

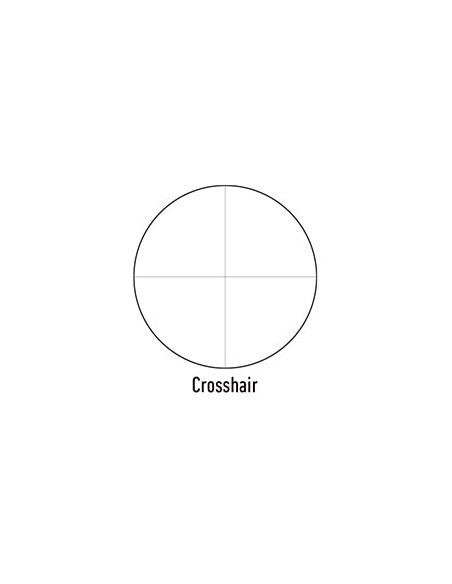

Reticle		CH 1/4dot Di-plex MTR-1 MTR-2 MTR-3 MTR-4 MTR-FT
In the box		Flip Caps (Objective and Eyepiece) Lens Cloth Sunshade Fast Lever Hex wrench MD disk
Scope Size	A	312mm (12.28inch)
	B	139mm (5.47inch)
	C	51mm (2.01inch)
	D	41mm (1.61inch)
	E	81mm (3.19inch)
	F	92mm (3.62inch)
	G	53mm (2.09inch)
	H	48mm (1.89inch)
Weight		590g (20.81oz)
